Altronix TROVE Trove2HW2 Installation Manual page 10

1.25"
(31.75mm)
6.25"
(21.59mm)
(158.75mm)
1.5"
1.25"
(38.1mm)
(31.75mm)
G
(685.8mm)
1.00"
(25.4mm)
- 10 -

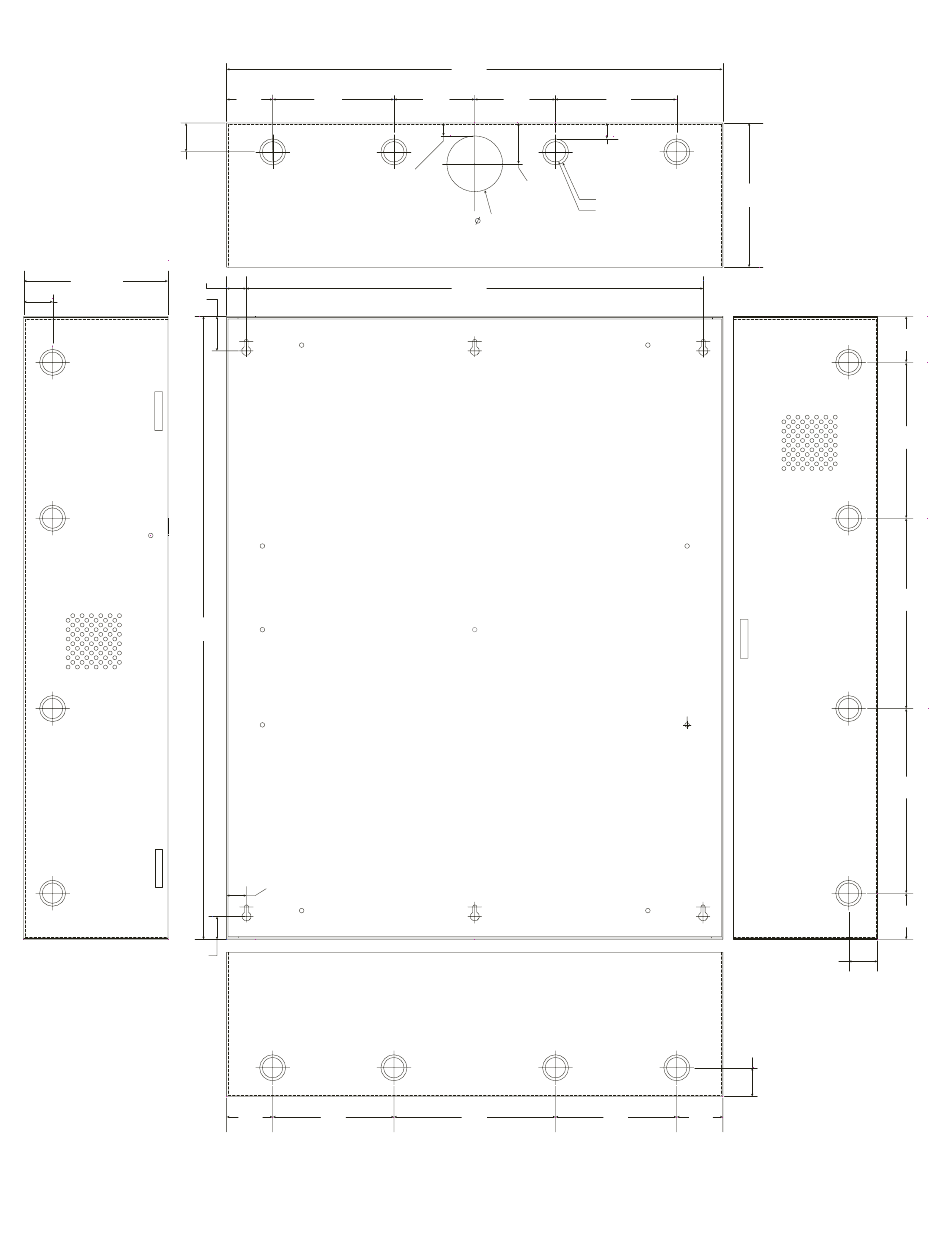

Trove2 Enclosure Dimensions (H x W x D approximate):
27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm)
2.00" 5.25"
(50.8mm) (133.35mm)
0.85"
27.00"
0.85"
(21.59mm)
2.00" 5.25"
(50.8mm) (133.35mm)
21.50"
(546.1mm)
3.50" 3.50"
(88.9mm) (88.9mm)
0.5625"
(14.29mm) 1.77"
(44.96mm)
2.415"
(61.34mm)
19.80"
(502.92mm)
7.00"
(177.79mm)
5.25"
(133.35mm)
0.685"
(17.399mm)
Knockouts
6.25"
1.125" (28.32mm)
(158.75mm)
0.885" (22.479mm)
1.25"
(31.75mm)
5.25" 2.00"
(133.35mm) (50.8mm)
2.00"
(50.8mm)
6.75"
(171.45mm)
8.25"
(209.54mm)
8.00"
(203.2mm)
2.00"
(50.8mm)
1.25"
(31.75mm)
TroveHW
