Front and Rear Panel Features
Front and Rear Panel Features

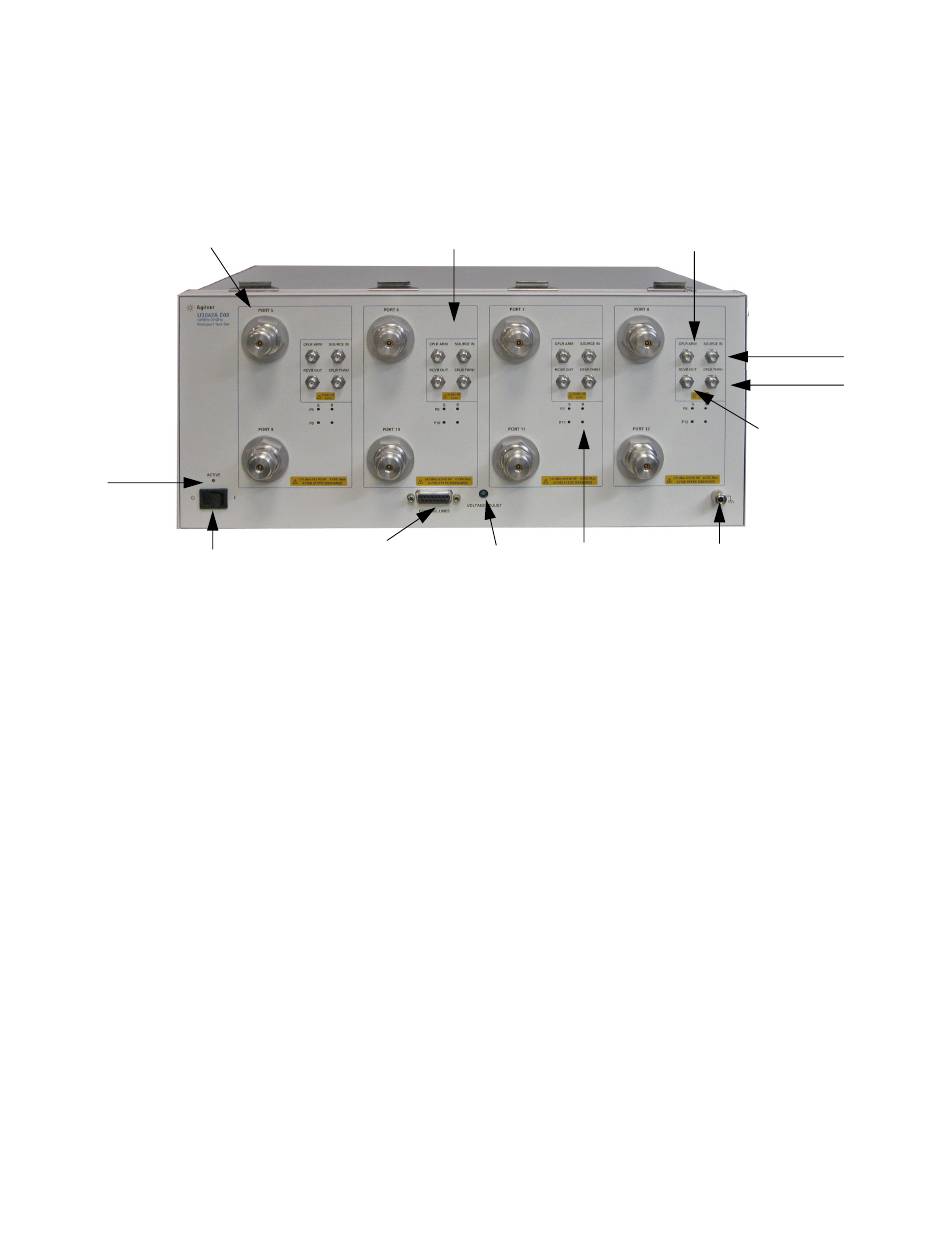

Figure 3
Front Panel (Multiport Test Set)
5 of 12 Test Ports
Active
LED
Standby Switch
Test Ports – 3.5 mm Bulkhead (male)
•
Port 5–12
Access Ports – SMA (female)
• SOURCE OUT
• CPLR THRU
• CPLR ARM
•
RCVR (A-D) OUT
Chassis Ground
Chassis ground that is provided for ESD and safety connection.
Test Port LEDs
•
An illuminated LED indicates an active port in Source or Receiver mode. On the front panel "S"
indicates Source test ports and "R" indicates Receiver test ports.
Control Lines and Voltage Ad just
For further information pertaining to control lines and voltage adjustments see
Access Port
Control
Voltage
Line
Adjust
10
CPLR ARM
Test Port LEDs
Chassis Ground
"Control Lines" on page
SOURCE IN
CPLR THRU
RCVR OUT
47.
