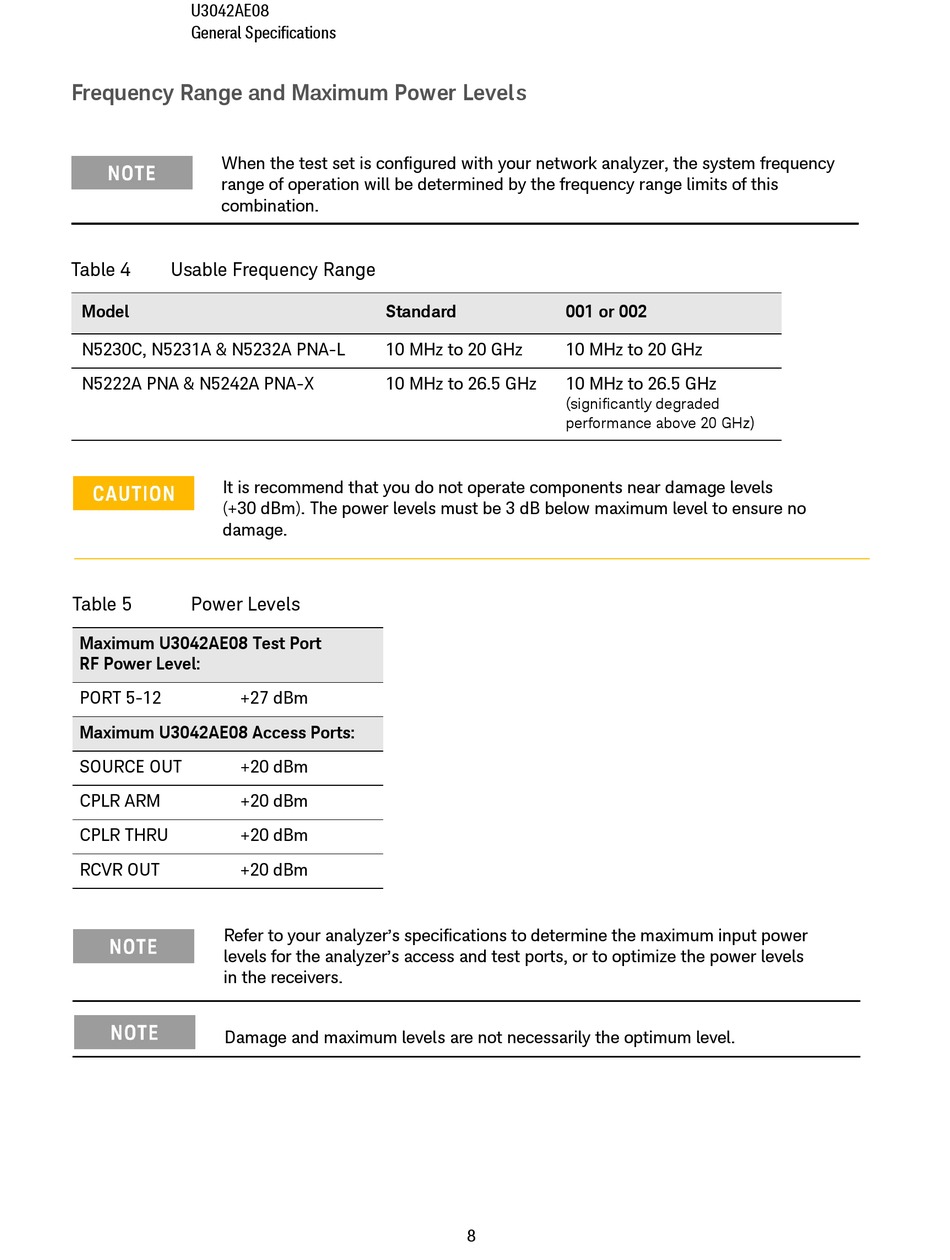

Frequency Range and Maximum Power Levels

When the test set is configured with your network analyzer, the system frequency
range of operation will be determined by the frequency range limits of this
combination.
Table 4 Usable Frequency Range
Model
N5230C, N5231A & N5232A PNA-L
N5222A PNA & N5242A PNA-X
It is recommend that you do not operate components near damage levels
(+30 dBm). The power levels must be 3 dB below maximum level to ensure no
damage.
Table 5 Power Levels
Maximum U3042AE08 Test Port 
RF Power Level:
PORT 5-12 +27 dBm
Maximum U3042AE08 Access Ports:
SOURCE OUT +20 dBm
CPLR ARM +20 dBm
CPLR THRU +20 dBm
RCVR OUT +20 dBm
Refer to your analyzer's specifications to determine the maximum input power
levels for the analyzer's access and test ports, or to optimize the power levels
in the receivers.
Damage and maximum levels are not necessarily the optimum level.
Standard
10 MHz to 20 GHz
10 MHz to 26.5 GHz
8
001 or 002
10 MHz to 20 GHz
10 MHz to 26.5 GHz
(significantly degraded
performance above 20 GHz)
