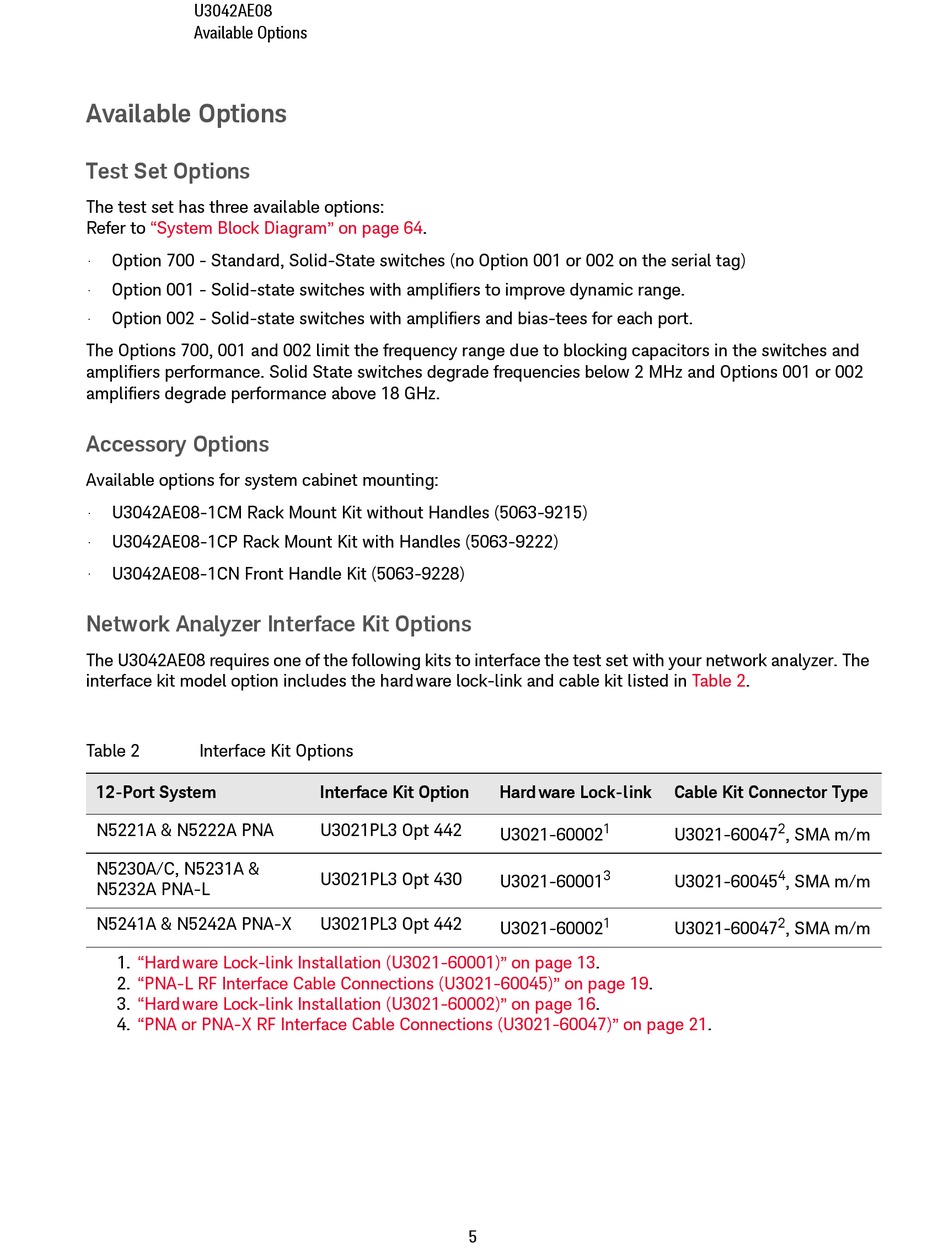

Available Options

Available Options

Test Set Options

The test set has three available options: 
Refer to "System Block Diagram" on page
• Option 700 - Standard, Solid-State switches (no Option 001 or 002 on the serial tag)
• Option 001 - Solid-state switches with amplifiers to improve dynamic range.
• Option 002 - Solid-state switches with amplifiers and bias-tees for each port.
The Options 700, 001 and 002 limit the frequency range due to blocking capacitors in the switches and
amplifiers performance. Solid State switches degrade frequencies below 2 MHz and Options 001 or 002
amplifiers degrade performance above 18 GHz.

Accessory Options

Available options for system cabinet mounting:
• U3042AE08-1CM Rack Mount Kit without Handles (5063-9215)
• U3042AE08-1CP Rack Mount Kit with Handles (5063-9222)
•
U3042AE08-1CN Front Handle Kit (5063-9228)

Network Analyzer Interface Kit Options

The U3042AE08 requires one of the following kits to interface the test set with your network analyzer. The
interface kit model option includes the hardware lock-link and cable kit listed in
Table 2 Interface Kit Options
12-Port System
N5221A & N5222A PNA
N5230A/C, N5231A & 
N5232A PNA-L
N5241A & N5242A PNA-X
1. "Hardware Lock-link Installation (U3021-60001)" on page
2. "PNA-L RF Interface Cable Connections (U3021-60045)" on page
3. "Hardware Lock-link Installation (U3021-60002)" on page
4. "PNA or PNA-X RF Interface Cable Connections (U3021-60047)" on page
64.
Interface Kit Option
U3021PL3 Opt 442
U3021PL3 Opt 430
U3021PL3 Opt 442
5
Hard ware Lock-link Cable Kit Connector Type
1
U3021-60002 U3021-60047
3
U3021-60001 U3021-60045
1
U3021-60002 U3021-60047
13.
19.
16.
Table 2.
2
, SMA m/m
4
, SMA m/m
2
, SMA m/m
21.
