Introduction

Introd uction
This document describes how to use the U3042AE08 Multiport Test Set with the Keysight N5230C 
4-Port PNA-L Network Analyzer and the N5242A PNA-X for a 12-Port Network Analyzer solution.

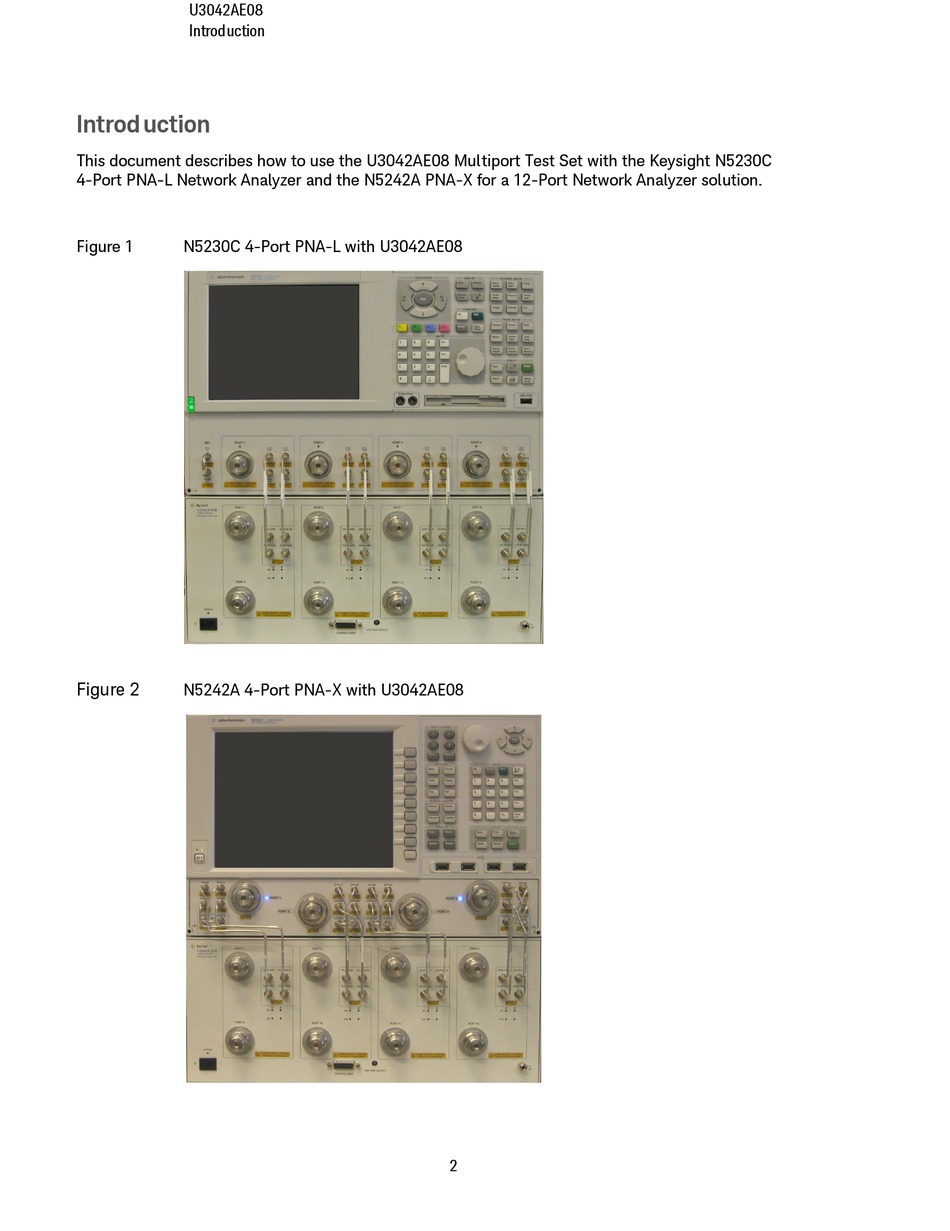

Figure 1 N5230C 4-Port PNA-L with U3042AE08
Figure 2
N5242A 4-Port PNA-X with U3042AE08
