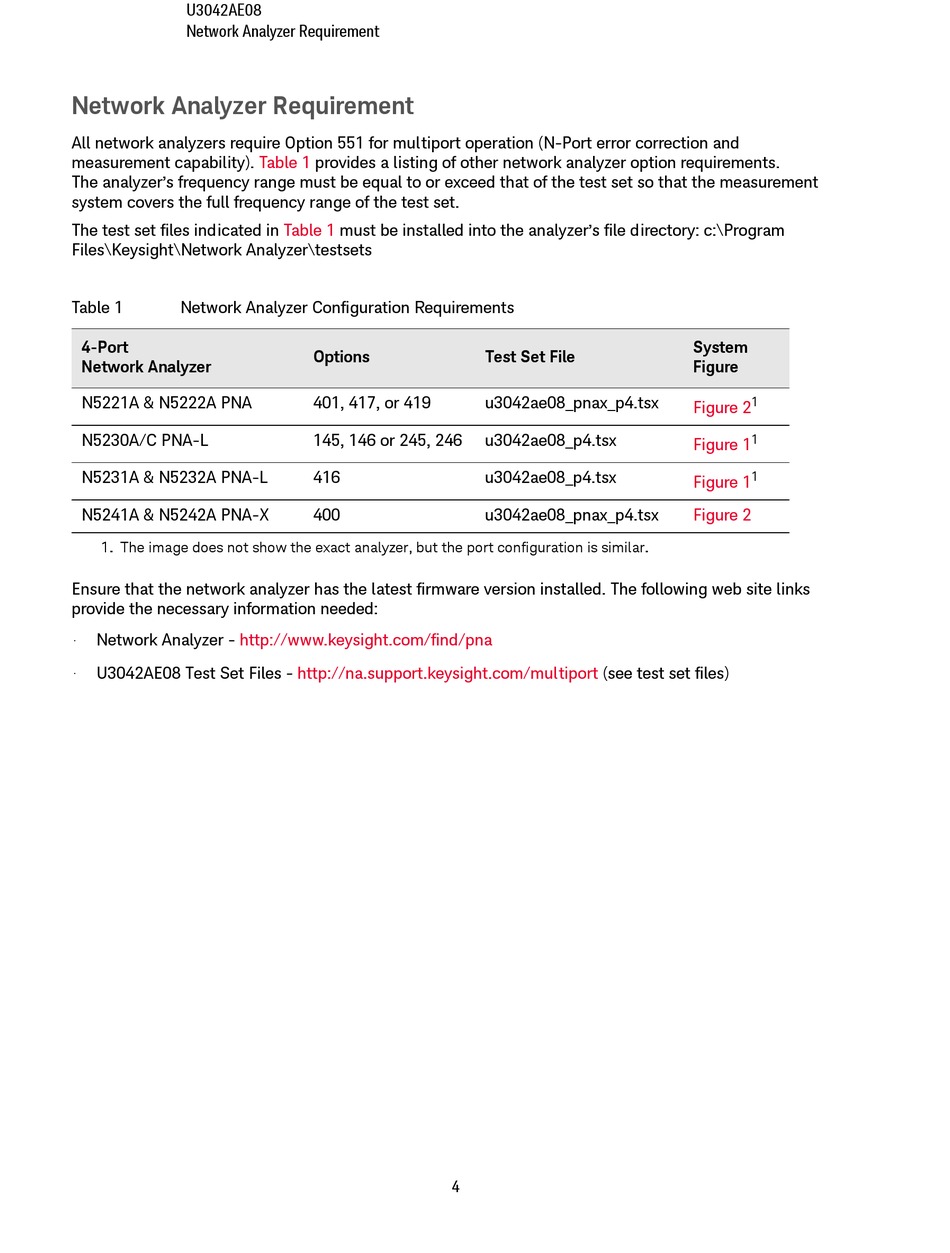

Network Analyzer Requirement

Network Analyzer Requirement
All network analyzers require Option 551 for multiport operation (N-Port error correction and
measurement capability).
The analyzer's frequency range must be equal to or exceed that of the test set so that the measurement
system covers the full frequency range of the test set.
The test set files indicated in
Files\Keysight\Network Analyzer\testsets
Table 1 Network Analyzer Configuration Requirements
4-Port 
Network Analyzer
N5221A & N5222A PNA
N5230A/C PNA-L
N5231A & N5232A PNA-L
N5241A & N5242A PNA-X
1. The image does not show the exact analyzer, but the port configuration is similar.
Ensure that the network analyzer has the latest firmware version installed. The following web site links
provide the necessary information needed:
• Network Analyzer - http://www.keysight.com/find/pna
•
U3042AE08 Test Set Files -
Table 1 provides a listing of other network analyzer option requirements. 
Table 1 must be installed into the analyzer's file directory: c:\Program
Options
401, 417, or 419
145, 146 or 245, 246
416
400
http://na.support.keysight.com/multiport
Test Set File
u3042ae08_pnax_p4.tsx
u3042ae08_p4.tsx
u3042ae08_p4.tsx
u3042ae08_pnax_p4.tsx
(see test set files)
4
System 
Figure
1
Figure 2
1
Figure 1
1
Figure 1
Figure 2
