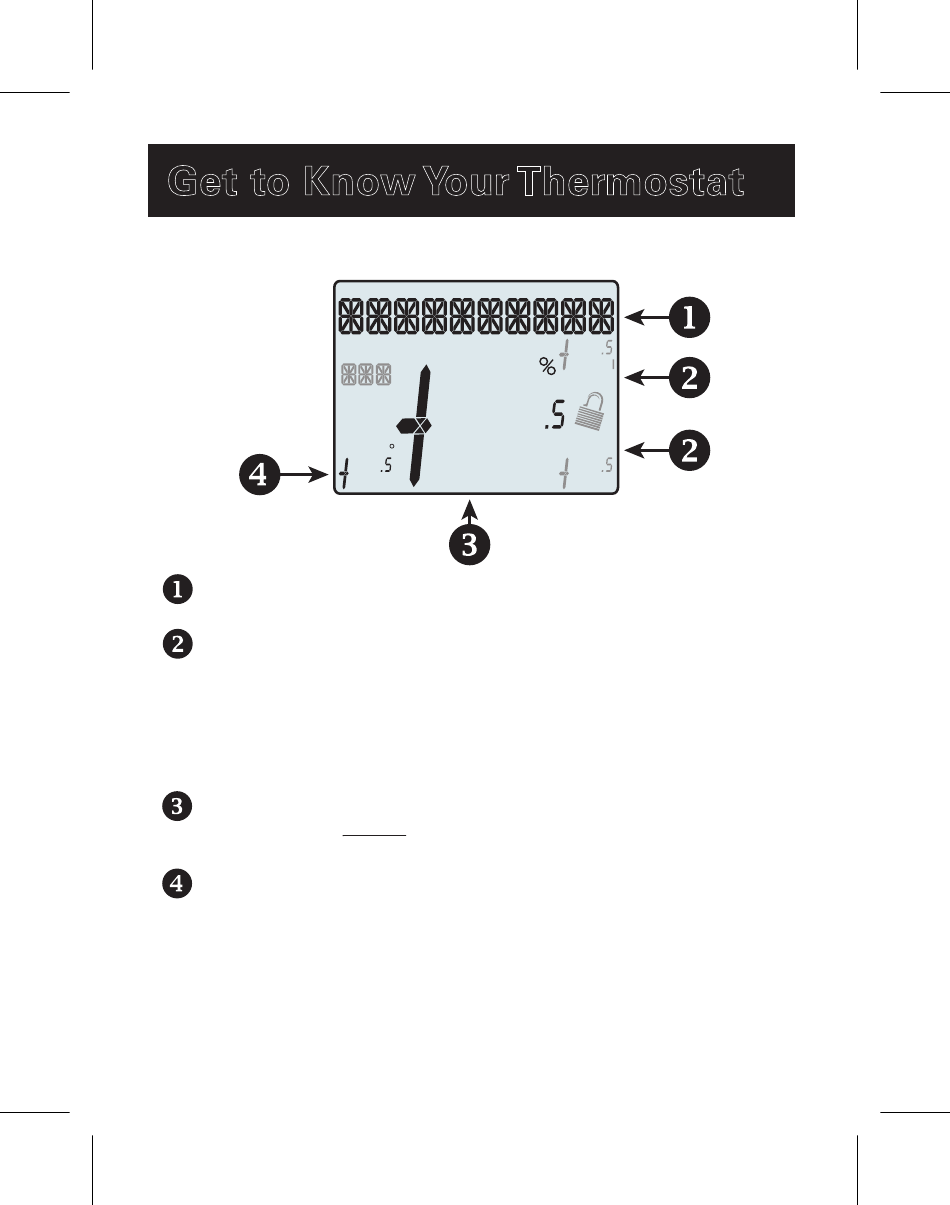

Get to Know Your Thermostat
Display Features
Setup Step
Stage
Fan On
Outdoor
The scrolling display will be used to help you easily navigate the setup
screens in the thermostat.
Mode Indicators
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
HEAT & COOL - Indicates the system will automatically change-
over between heat and cool modes as the temperature varies.
OFF - Indicates heating and cooling is turned off.
Room Temperature Display
Indicates the current room temperature and displays the outdoor
temperature when selected.
Outdoor icon
Indicates the temperature displayed is from the optional outdoor
sensor.
