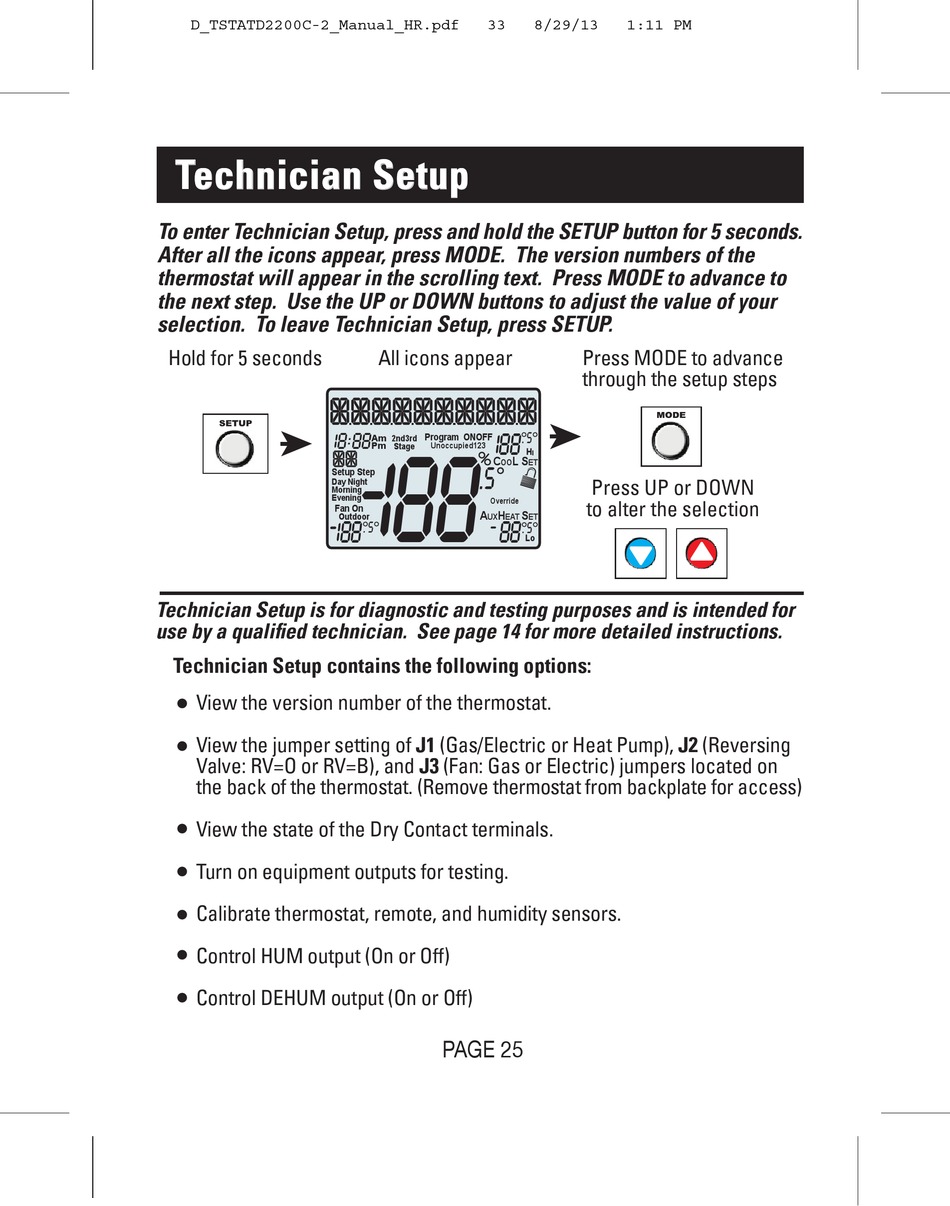

Technician Setup

To enter Technician Setup, press and hold the SETUP button for 5 seconds.
After all the icons appear, press MODE. The version numbers of the
thermostat will appear in the scrolling text. Press MODE to advance to
the next step. Use the UP or DOWN buttons to adjust the value of your
selection. To leave Technician Setup, press SETUP.
Hold for 5 seconds
18:88
Setup Step
Day Night
Morning
Evening
Fan On
188
Technician Setup is for diagnostic and testing purposes and is intended for
use by a qualified technician. See page 14 for more detailed instructions.
Technician Setup contains the following options:
View the version number of the thermostat.
View the jumper setting of J1 (Gas/Electric or Heat Pump), J2 (Reversing
Valve: RV=O or RV=B), and J3 (Fan: Gas or Electric) jumpers located on
the back of the thermostat. (Remove thermostat from backplate for access)
View the state of the Dry Contact terminals.
Turn on equipment outputs for testing.
Calibrate thermostat, remote, and humidity sensors.
Control HUM output (On or Off)
Control DEHUM output (On or Off)
