Installer Setup

How to Change Settings in the Setup Screens

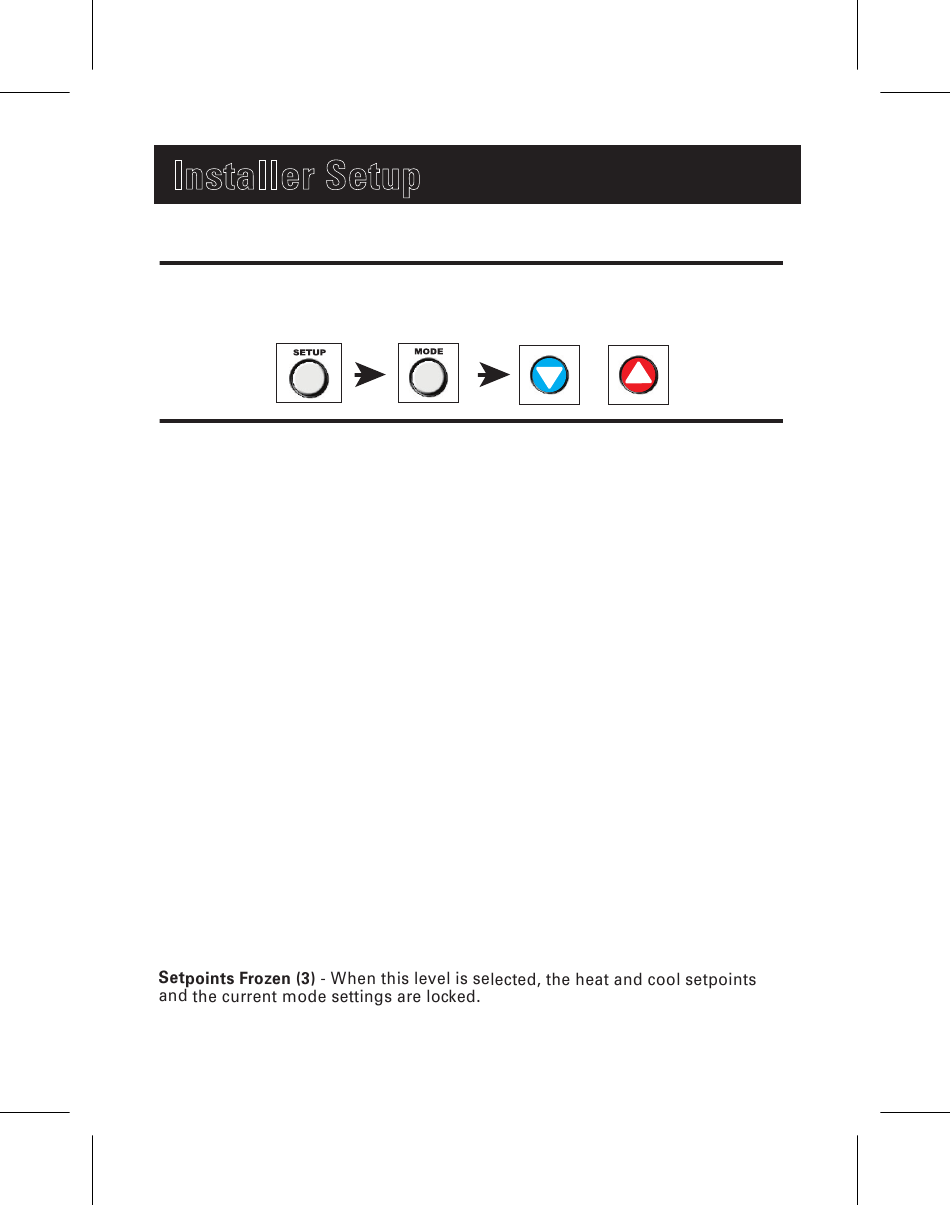

To enter Advanced Setup, press the SETUP button, then press MODE. Use the
UP or DOWN buttons to adjust the value of your selection. Press MODE to
advance to the next setup step. Press SETUP again to leave the setup screens.
Selecting Your Available Modes
Auto-Changeover - Allows the thermostat to turn on heating or cooling
based on room temperature demand. Also allows the manual selection
of HEAT only or COOL only and OFF .
Heat and Cool - Allows the thermostat to turn on heating or cooling depending
on which one has been manually selected. Auto-Changeover is not available
when this is selected.
Heat Only - Allows the thermostat to only turn on HEAT or OFF modes.
Cool Only - Allows the thermostat to only turn on COOL or OFF modes.

Setpoint Limits

This feature allows the user to set 4 different levels of security: (0 - 3).
No Setpoint Limits (0) - When this level is selected, no restrictions are activated.
Use Setpoint Limits (1) - When this level is selected, the heat and cool setpoints
can be restricted to preset levels, set in setup steps 21 and 22.
Maximum Heat Setpoint (Setup Step 21) - (35˚- 99˚).
Minimum Cool Setpoint (Setup Step 22) - (35˚- 99˚).
Force Current Mode (2) - When this level is selected, the heat and cool
setpoints can be restricted to preset levels, set in setup steps 21 and 22 and
the thermostat is locked into the current mode.
27
(Setup Step 20)
PAGE 19
8/29/13 1:11 PM
(Setup Step 2)
