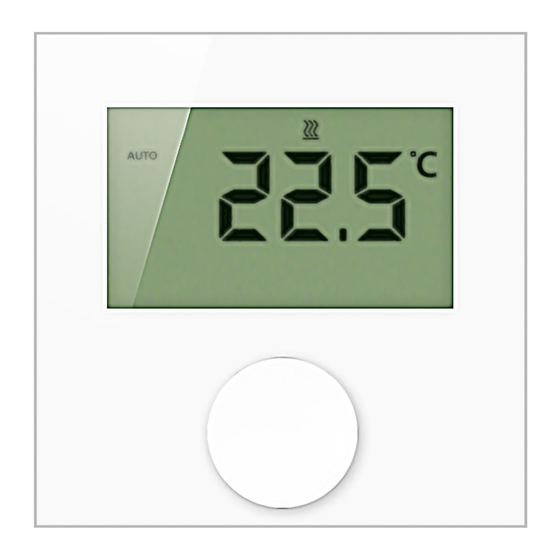

Daikin EKWCTRDI1V3 Quick Start Manual

DIGITAL THERMOSTAT 230 V
1x
The EKWCTRDI1V3 with display is intended for regulating the room
temperature by setting the desired target temperature for the activation of
actuators in heating/cooling operation. Every other use is considered not
intended; the manufacturer cannot be held liable for unintended use.
¾ The electrical installation must be performed according to the
current national VDE regulations as well as according to the
regulations of your local electric power utility company, by an
authorised and trained electrician, and in a de-energised state.
¾ Only an authorised electrician may open the device. It may only
be opened in de-energized state.
¾ Only use the device if it is in perfect state.
¾ Ensure that children do not play with this device. Children must
be monitored if necessary.
± 30 cm
± 150 cm
EKWCTRDI1V3
1
4a
5
5
L/L1
N/L2
1 2 1 2
Press the dial to activate menus or features. Rotate the dial to switch
between menus and features and press again to open. Adjust settings and
press to confirm. If no further operation is performed, the display will return
to its original state after max. 30 seconds.
2
3,5 mm
Protective cover
6
> L/L1
Cleaning
> N/L2
Only use a dry and solvent-free soft
cloth for cleaning.
Dismantling
1. Switch off the voltage supply.
2. Remove the wiring.
3. Take off the thermostat and dispose
1 2
a b c
1. Display with function indicators
2. Dial
1
2
3
4b
7
of it properly.
• Rotate: Set target temperature/
operate menu
• Press: Activate menu level/
functions
1
