1 – SmartDesign

The Hard Multiplier Accumulator for SmartFusion2, IGLOO2, and RTG4 is available for download from

the Libero® SoC IP Catalog via the web repository. Once listed in the Catalog you can double-click the

macro to configure it in SmartDesign. For information on using SmartDesign to configure, connect, and

generate cores, see the Libero SoC online help.

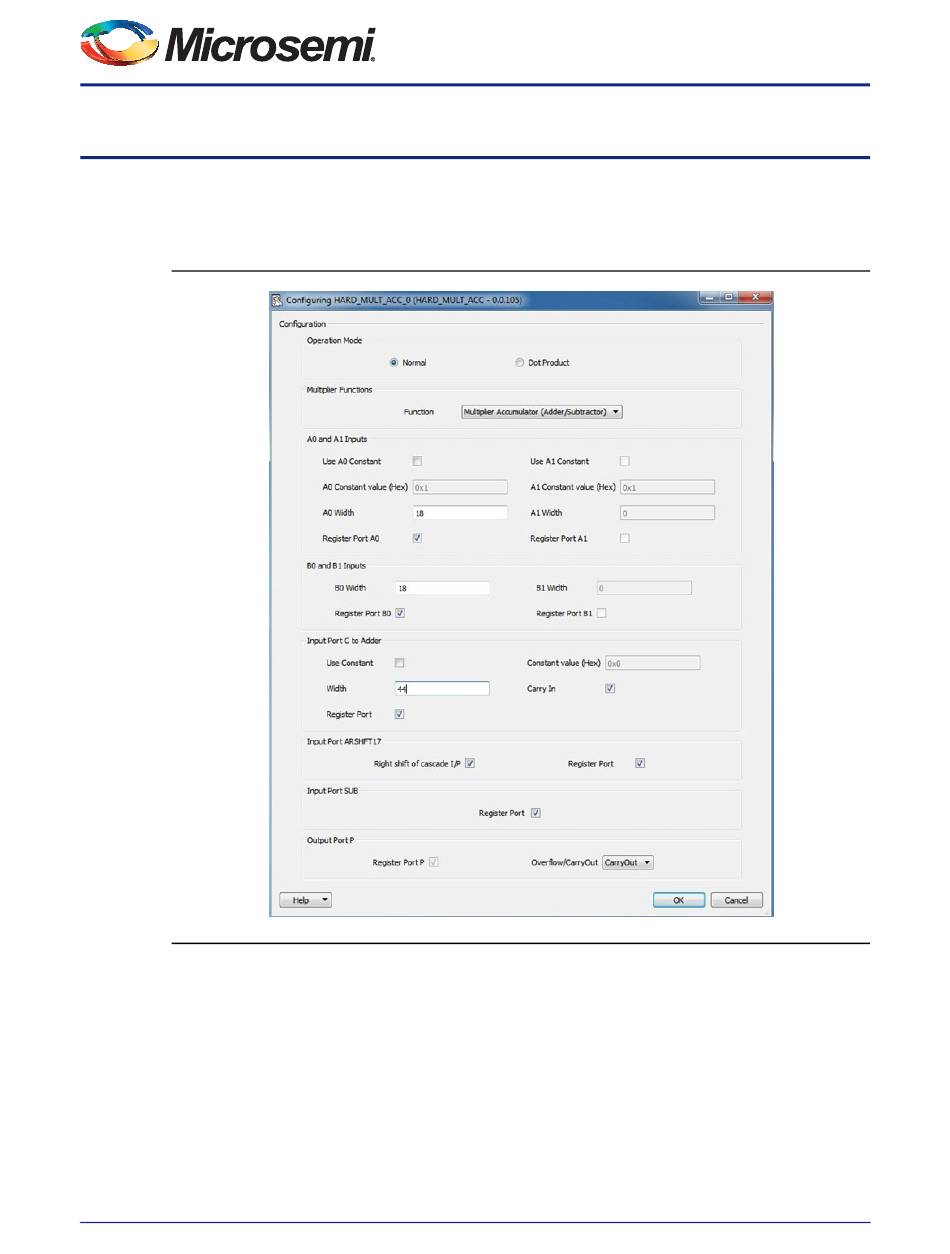

Figure 1-1 • Hard Multiplier Accumulator Configuration Options - Normal Mode
