3 – Port Description
The figures below display the Hard Multiplier Accumulator input and output ports for Normal mode
(Figure 3-1) and Dot Product mode (Figure 3-2). Only a subset of the ports is used in any given Hard
Multiplier Accumulator configuration.

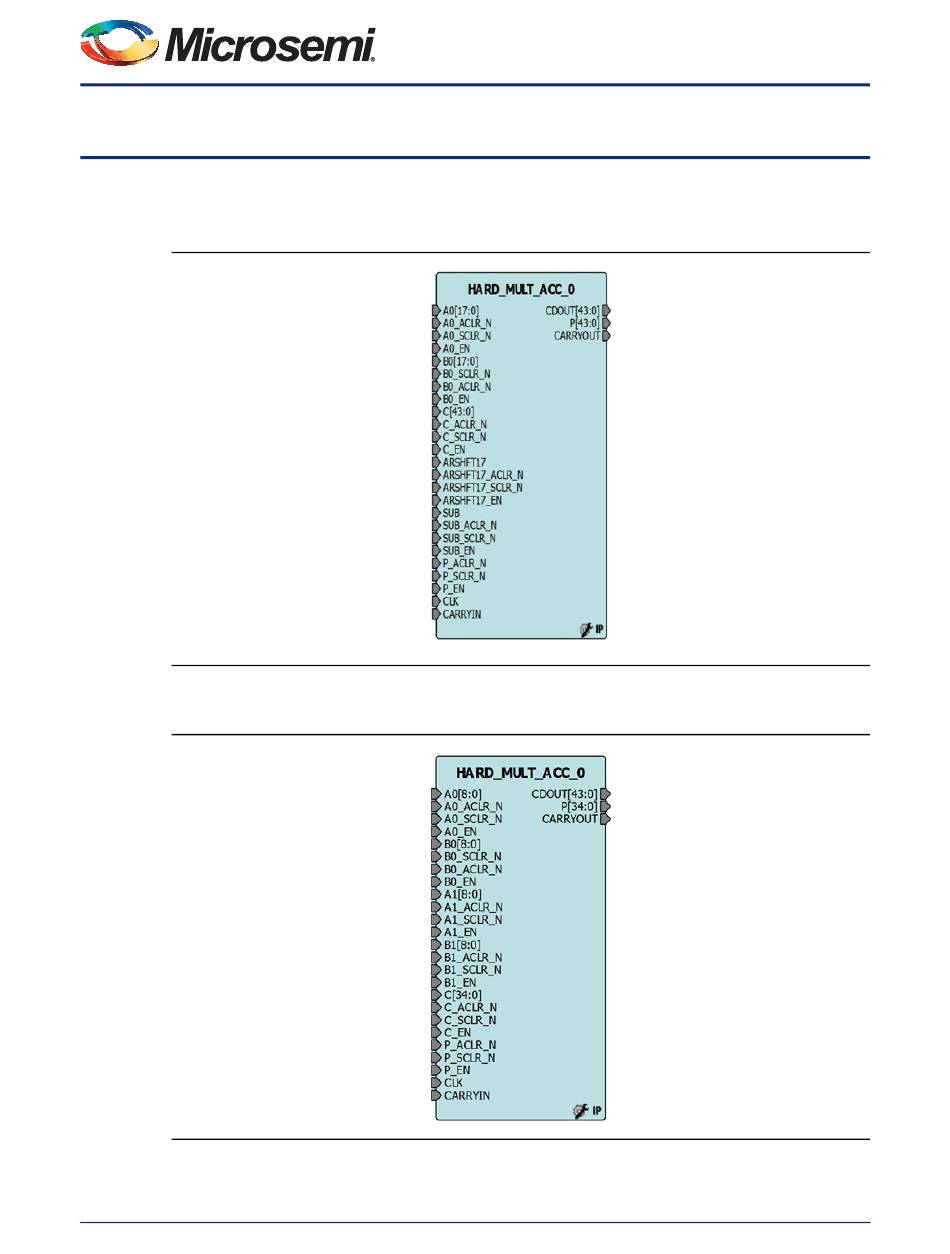

Figure 3-1 • Hard Multiplier Accumulator Ports, Normal Mode
Figure 3-2 • Hard Multiplier Accumulator Ports, Dot Product Mode
