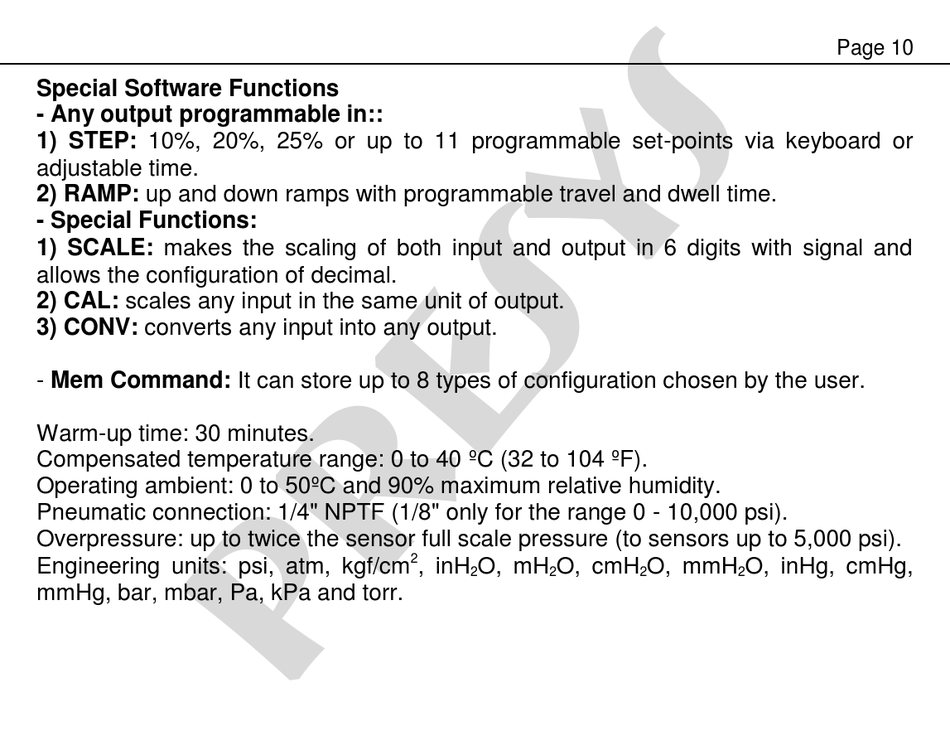

Page 10
Special Software Functions
- Any output programmable in::
1) STEP: 10%, 20%, 25% or up to 11 programmable set-points via keyboard or
adjustable time.
2) RAMP: up and down ramps with programmable travel and dwell time.
- Special Functions:
1) SCALE: makes the scaling of both input and output in 6 digits with signal and
allows the configuration of decimal.
2) CAL: scales any input in the same unit of output.
3) CONV: converts any input into any output.
- Mem Command: It can store up to 8 types of configuration chosen by the user.
Warm-up time: 30 minutes.
Compensated temperature range: 0 to 40 ºC (32 to 104 ºF).
Operating ambient: 0 to 50ºC and 90% maximum relative humidity.
Pneumatic connection: 1/4" NPTF (1/8" only for the range 0 - 10,000 psi).
Overpressure: up to twice the sensor full scale pressure (to sensors up to 5,000 psi).
2
Engineering units: psi, atm, kgf/cm
, inH
O, mH
O, cmH
O, mmH
O, inHg, cmHg,
2
2
2
2
mmHg, bar, mbar, Pa, kPa and torr.
