Presys MCS-XV Technical Manual

Universal process calibrator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRESYS
Instruments

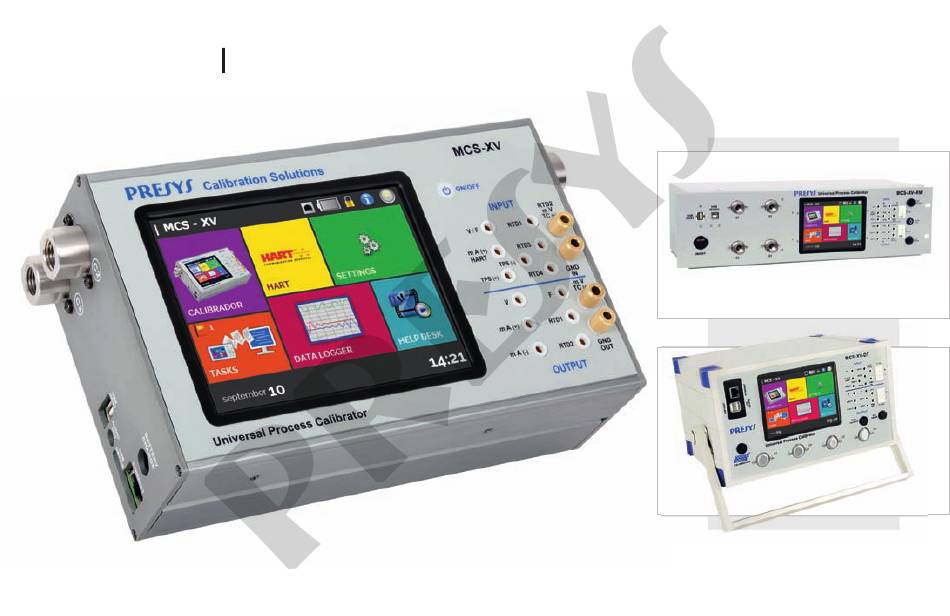

Universal Process Calibrator
XV
XV
MCS-
MCS-
MCS-
TECHNICAL MANUAL
EM0256-07
XV
XV
-RM
XV
XV
-DT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCS-XV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Presys MCS-XV

Summary of Contents for Presys MCS-XV

  • Page 1 PRESYS Universal Process Calibrator Instruments MCS- MCS- MCS- TECHNICAL MANUAL EM0256-07...
  • Page 2 Therefore, only replace it with another original at current as the time of printing and applies to specific versions. in order not to impair the accuracy of the ISOCAL MCS-XV. Changes may be made for the purpose of continuous products - When not in daily use, respect the minimum warm-up time of one hour.

  • Page 3: Table Of Contents

    1.7. Order Code ............................... 14 2. OPERATION ................................15 2.1. Parts Identification ............................. 15 2.2. Battery and Charger (only for MCS-XV Portable Version) ................. 20 2.3. Using MCS-XV: Basic Functions ........................22 2.4. Calibrator ................................23 2.4.1. Measure or Input Functions ........................25 2.4.2.
  • Page 4 2.5.4. Adjusting the Measurement Range of a HART Transmitter with Reference (CH Option) ......71 ® 2.5.5. HART® Transmitter mA Output Adjustment ....................73 2.5.6. FULL HART ® Configurator (FH) ........................75 2.6. Profibus ................................80 ® 2.6.1. Profibus Communication ........................... 81 ®...
  • Page 5 5.2.2. mV Adjustment ............................135 5.2.3. Pressure Adjustment ..........................137 6. MAINTENANCE ..............................139 6.1. Battery Replacement (Only for portable MCS-XV) ..................139 6.2. Battery Calibration (Only for portable MCS-XV) ....................141 6.3. Replacement of the Current Input Fuse ......................145...

  • Page 6: Introduction

    In addition to these, several constructive factors can be mentioned that add quality and efficiency to the MCS-XV, including foresee its use not only in the field but also in the bench (RM Version - Rack Mounting, DT Version - Desktop).

  • Page 7: Specifications - Inputs

    1.2. Specifications - Inputs Input Ranges Resolution Accuracy Remarks > 10 M millivolt -500 mV to -150 mV 0.01 mV  0.02 % FS* input auto-ranging -150 mV to 150 mV 0.001 mV  0.01 % FS 150 mV to 2450 mV 0.01 mV ...
  • Page 8 TC-B 1200 to 1820 C / 2192 to 3308 F 0.1 C / 0.1 F  0.7 C /  1.4 F IEC 60584 (*) Probe is an input for a reference RTD to use as standard thermometer. The accuracy is related Only to MCS-XV.
  • Page 9 Input Ranges Resolution Accuracy Remarks TC-R -50 to 300 C / -58 to 572 F 0.1 C / 0.1 F  1.0 C /  2.0 F IEC 60584 TC-R 300 to 1760 C / 572 to 3200 F 0.1 C / 0.1 F ...

  • Page 10: Specifications - Output

    1.3. Specifications - Output Input Ranges Resolution Accuracy Remarks millivolt -10 mV to 110 mV 0.001 mV  0.02 % FS < 0.3  output volt -0.5 V to 12 V 0.0001 V  0.02 % FS < 0.3  output mA 0 to 24 mA 0.0001 mA...
  • Page 11 Input Ranges Resolution Accuracy Remarks TC-J -210 to 1200 C / -346 to 2192 F 0.1 C / 0.1 F  0.4 C /  0.8 F IEC 60584 TC-K -270 to -150 C / -454 to -238 F 0.1 C / 0.1 F ...
  • Page 12 Input Ranges Resolution Accuracy Remarks TC-N -260 to -200 C / -436 to -328 F 0.1 C / 0.1 F  2.0 C /  4.0 F IEC 60584 TC-N -200 to -20 C / -328 to -4 F 0.1 C / 0.1 F ...

  • Page 13: Optional Items

    1.4. Optional Items Pressure Sensors Can be placed up to 4 (four) pressure sensors in MCS-XV, with ranges between 250 mmH O and 10,000 psi. Ranges* Resolution Accuracy** Remarks (0) 0 – 25 mbar 0.0001  0.05 % FS** Gauge pressure (1) 0 –...
  • Page 14 Probe is a high accuracy 4-wire Pt100 available under ordering. The calibrator input accepts Callendar-Van Dusen and ITS-90 curve correction coefficients MPYA Pressure Module Optional independent pressure measurement module. The MPYA communicates with the MCS-XV which performs pressure indication. See MPYA specifications on the Presys website.

  • Page 15: General Specifications

    1.5. General Specifications RTD input for 2, 3 and 4 wires. Table IEC 60751, Callendar-Van Dusen, or ITS-90 user-configurable. Regulated transmitter power supply (TPS): 24 Vdc, with protection for short circuit (30 mA). Contact input for calibration of switches (pressure switch, thermos switch etc.). 50 Vdc in/out insulation.
  • Page 16 Dimensions: 140 mm x 250 mm x 80 mm (HxWxD). Weight: 2,6 kg nominal. Rack Mounting Version (MCS-XV-RM). Designed for mounting on 19” rack or workbench. Powered from 100 to 240 Vca, 50 / 60 Hz.
  • Page 17 Dimensions: 132 mm x 308 mm x 275 mm (HxWxD). Weight: 3,0 kg nominal. NOTES: * MCS-XV e ISOPLAN ® are Presys trademarks. * Presys reserves the right to amend this technical document without notice. * HART is a Fieldcomm Group trademark. ® * Profibus ®...

  • Page 18: Special Software Features

    1.6. Special Software Features - Special functions: 1) SCALE : scales both input and output. 2) CONV: converts any input to any output, galvanically insulated. 3) RAMP: increasing or decreasing ramps with configurable travel times and landing. 4) STEP: steps or setpoints with configurable times. - Memory Manager: Stores predefined configuration types by the user.

  • Page 19: Order Code

    1.7. Order Code...

  • Page 20: Operation

    2. OPERATION 2.1. Parts Identification MCS- Portable Front Panel Fig. 01 – Front Panel – MCS-XV...
  • Page 21 Fig. 02 – Side Panels – MCS-XV...
  • Page 22 Using the MCS-XV carrying case Fig. 03 – Using the carrying case Included items: The case has three compartments: one to hold the calibrator and the others to hold various accessories including probe tips, adapter for connecting thermocouple wires, spare fuse, handles for carrying and field use, and a technical manual.
  • Page 23 MCS-XV-RM (Rack Mounting Version) Fig. 04 – Front and back panels – MCS-...
  • Page 24 MCS-XV-DT (Desktop Version) Fig. 05 - Front and back panels – MCS-...

  • Page 25: Battery And Charger (Only For Mcs-Xv Portable Version)

    2.2. Battery and Charger (only for MCS-XV Portable Version) The MCS-XV is supplied with rechargeable battery which enables up to 10 hours of continuous use. This autonomy is reduced according to the active functions. A battery charger that can be plugged into power supply from 100 to 240 Vac is included.
  • Page 26 Fig. 07 – Battery level Clicking on the battery icon, the following screen is shown. This screen shows the battery power (in percent), current (positive value if the battery is charging, negative if it is not) and the estimated time of instrument autonomy based on the current consumption.

  • Page 27: Using Mcs-Xv: Basic Functions

    DATA LOGGER – record measurements, enabling visualization in chart or table, see section 2.6. HELP DESK – features videos made by Presys to assist in the use of the calibrator and can also store videos and documents made by the user, see section 2.9.

  • Page 28: Calibrator

    2.4. Calibrator To select the input or output functions, from the main menu, press the CALIBRATOR button. The following screen is displayed. Fig. 09 – Calibrator Function At the top is shown the Channel 1 and at the bottom the Channel 2. It can be changed in Layout option on Quick Navigator menu.
  • Page 29 Furthermore, it brings information about the input/output configuration and IP address. Press BACK to return to Calibrator Mode or HOME to go to Main Menu. Fig. 10 – Quick Navigator and Secondary Menu The Channel 1 can be configured only as an input. The Channel 2 can be configured as an output (default setting) or as PROBE or PRESSURE input.

  • Page 30: Measure Or Input Functions

    2.4.1. Measure or Input Functions a) Input Type Configuration Press Input CH-1, select through the menu the type of signal to be measured and use the corresponding terminals (see Fig. 17 – Input Connections or press the HELP button). Fig. 11 – Input selection For OHM measurement, select between 2, 3 or 4 wires options.
  • Page 31 You can also set the Callendar-Van Dusen or ITS-90 sensor coefficients by selecting the CVD or ITS-90 option and the desired curve from the ID list. To create new CVD or ITS-90 coefficients or edit existing ones, select between the two options, and press the edit button and then, the button ADD.
  • Page 32 For ITS-90 Fill in the value of RPTW (Resistance at 0.01 °C) and select the range for negative and / or positive curve before entering the parameters together with their exponents. Fig. 13 - ITS-90 Coefficient Configuration Negative Range: Accesses the coefficients to be used for temperatures below or equal to the triple point of water (0.01 °C).
  • Page 33 Positive Range: Accesses the coefficients to be used for temperatures above the triple point of water (0.01 °C). Recommended Temperature Range (Positive) Coefficients Range 6 0.01 °C to 961.78 °C A6, B6, C6, D6 Range 7 0.01 °C to 660.323 °C A7, B7, C7 Range 8 0.01 °C to 419.527 °C...
  • Page 34 For TC (thermocouple) input, select the thermocouple type and the type of cold junction compensation (CJC): Internal, Manual or Probe. In the Internal option, compensation is performed by a sensor installed internally in the calibrator. In Manual, set the value of the cold junction temperature to the calibrator. The Probe option corresponds to measuring the cold junction through a probe sensor or the external cold junction compensation block of high accuracy.
  • Page 35 The SWITCH input is a measurement of continuity of an external contact connected to the input (between RTD1 and RTD4) of MCS-XV. When there is continuity, the input shows CLOSED, otherwise it shows OPEN. b) Pressure Switch Test By pre-selecting, the pressure indication on Channel 2, in SWITCH the automatic pressure test function is enabled.
  • Page 36 Fig. 14 – Pressure Switch Test...
  • Page 37 c) Burn-Out Warning When the input sensor breaking occur (RTD, resistance or probe) the display shows the burn-out warning identified by question marks illustrated below: Fig. 15 – Burn-out warning Whenever the input signal is above or below the input ranges established in Section 1.2 Specifications- Input, the display indicates OVER or UNDER, respectively.
  • Page 38 d) Engineering Units Change The units of temperature and pressure can be changed by clicking on the engineering unit (°C, °F, psi, atm etc.) and selecting the desired option. Fig. 16 – Engineering Unit Selection...
  • Page 39 e) Input or Measurement Connections Fig. 17 – Input Connections...
  • Page 40 Fig. 17 - (Cont.) Input Connections...
  • Page 41 Fig. 17 - (Cont.) Input Connections NOTE: For versions RM and DT, check the position of the pressure sensors in Fig. 04 and Fig. 05, respectively.
  • Page 42 f) Probe Connection (optional) Connect the PROBE to MCS- so that the polarity identifications match. See figure below. Fig. 18 – Probe Connection...
  • Page 43 g) High Accuracy External Cold Junction Compensation Block Connection – CJCB (optional) Insert the high precision block in the TC input (IN) or TC output (OUT) terminals and connect the cable which comes out of the block to calibrator Probe connector according to the same polarity described in item f) above. Depending on the block insertion in the TC input or in the TC output, the thermocouple connection will have its input or output cold junction given by the external compensation block.

  • Page 44: Generation Or Output Functions

    For an effective input or output cold junction measurement with the block, the PROBE option of thermocouple cold junction must be selected and enabled. In CJC TYPE select PROBE. h) Profibus Connection ® To use the input for calibrating instruments with Profibus® communication, insert the communication cable into the respective calibrator input and connect the test leads to the device to be calibrated (see Fig.
  • Page 45 The FREQ. option allows the selection of the frequency or pulse generation. For the frequency generation, it must be chosen between the bands of 100 Hz or 10000 Hz. It can also be adjusted the amplitude, which varies from 0 to 22 V.
  • Page 46 Fig. 21 – Changing the Output Value The temperature units can be changed by clicking on the unit and selecting the desired option. The NONE option disables the output function.
  • Page 47 b) Output or Generation Connections Fig. 22 – Output Connections...
  • Page 48 Fig. 22 - (Cont.) Output Connections...

  • Page 49: Available Power Supplies

    2.4.3. Available Power Supplies The MCS-XV has two power supplies galvanically isolated: TPS and +22.5 Vdc at the output, both provided with short-circuit protection (current limited to 30 mA). Fig. 23 – Power Supplies...

  • Page 50: Input Special Functions

    2.4.4. Input Special Functions Selecting SPECIAL FUNCTIONS in the input channel, the display shows the following pop-up: Fig. 24 – Input Special Functions The selected special function will act on the previously selected input. After selecting and configuring the special function, to enable it change to on the key status confirm in OK.
  • Page 51 SCALE Function It establishes a linear relationship between the MCS-XV input signal and what is shown at the display, according to the graphic below: Fig. 25 – SCALE Function (LINEAR) The image shown below presents de SCALE FUNCTION configuration menu.
  • Page 52 ³ The scaled indication at the display (#) may be changed to represent any engineering unit, such as: m/s, m % etc. The number of decimals, up to 4, shown at the display may be configured. The value for Input High must be necessarily higher than Input Low. On the other hand, Scale High and Scale Low may have any relationship between themselves: higher than, lower than or equal to, and they may have a signal before them.
  • Page 53 b) CONV Function By using the CONV function, the calibrator may convert any input signal into any output signal with galvanic isolation. It may, therefore, behave as a real transmitter. Once the calibrator input and output have been selected, fill in the four parameters shown in the graphic below: Fig.

  • Page 54: Output Special Functions

    Fig. 29 – CONV Function Configurations 2.4.5. Output Special Functions Selecting SPECIAL FUNCTIONS in the output channel, the display will show: Fig. 30 – Output Special Functions The selected special function will act on the previously selected output. After selecting and configuring the special function, to enable it change to on the key status and confirm in OK.
  • Page 55 When there is no active special function, the screen displays the message NO SPECIAL FUNCTION at the top. a) RAMP Function By using this programming, the MCS- output varies automatically, producing ramps and level marks which may be programmed to actuate once or continuously. To access the RAMP mode configuration menu, select the function after pressing the SPECIAL FUNCTIONS button.
  • Page 56 Fig. 31 – RAMP Function b) STEP Programing The STEP programming makes the calibrator output vary in pre-defined steps. It is useful in calibrations where some scale points are verified, for example: 0% - 25% - 50% - 75% - 100%. To generate setpoints, you must set the minimum and maximum range points (MIN and MAX), the output percentage change for each step (%) and generate the list ( button).
  • Page 57 SCALE Function The scaling of the output from MCS-XV allows it to simulate the operation of a transmitter. In this case, the display scaled indication (#) simulates the transmitter input (which can be changed by pressing the number indicated on the display and entering the desired value), and as output signal it can have any of the signals generated by the MCS-XV (e.g., 4 to 20 mA).
  • Page 58 Fig. 33 – SCALE Function (LINEAR) The number of decimals, up to 4, shown at the display may be configured. The value for Input High must be necessarily higher than Input Low. On the other hand, Scale High and Scale Low may have any relationship between themselves, if they are not equal. Thus, direct, or reverse relationships may be established.

  • Page 59: Saving Current Configuration (Memory Manager)

    Fig. 34 – SCALE Function (FLOW) 2.4.6. Saving Current Configuration (Memory Manager) The MCS-XV admits several special functions that can be used frequently, and it is useful to store settings on the instrument to save time. After setting the desired mode (input type, output type, special functions), press the →...
  • Page 60 Fig. 35 – Memory Manager...

  • Page 61: Ad/Ratio

    2.4.7. AD/Ratio The MCS-XV allows to change the conversion rate of the Analog/Digital Converter. With faster rates, the readings indicated in meter mode are updated more frequently, and with slower rates, the calibrator performs more readings and updates the values at a lower frequency.

  • Page 62: Bargraph

    2.4.8. Bargraph The MCS-XV allows to monitor an input and include HIGH and LOW alarms for the range. To set up the alarm, press the button → MORE OPTIONS, and the BARGRAPH button. Select from high and/or low alarms. Press SOUND to activate the calibrator beep when in alarm. In EVENTS you can check a list of times when the alarm detects values outside the registered tolerance.
  • Page 63 Fig. 37 – Bargraph Function Fig. 38 – Stability Test...

  • Page 64: Calibration Examples

    2.4.9. Calibration Examples a) Temperature Transmitter Calibration (RTD Input and 4-20 mA Output) Through the menus, you can configure the MCS- for mA input and output in RTD. The TPS (Transmitter Power Supply) is a source of 24 Vdc that provides power to the transmitter. In the example, the connection of the RTD is made using three wires and being simulated by the MCS- With this form of connection, there is no measurement error due to the resistance of the wires since these have the same length and gauge.
  • Page 65 Setup the MCS-XV as volts output and TC input and select the TC type. For the cold junction compensation, you can use compensating wires TC to connect the transmitter to the MCS-XV and choose the option of Internal cold junction compensation, or you can measure the temperature of the terminal of the transmitter and enter this value in the Manual option in the MCS-XV, thus eliminating the use of compensating wires.
  • Page 66 c) Pressure Transmitter Calibration Use TPS MCS- source to power the two-wire transmitter 24 Vdc and connect the current as illustrated below. Select mA (current) in the Input menu of the CH-1 and Pressure Input on CH-2 menu. To enable Channel 2 as input, press the icon and enable the CH-2 option.
  • Page 67 Current input readings can be scaled to pressure through the SCALE option. In this way the error between the input and output of the pressure transmitter is easily calculated. d) Pressure Switch Verification Pressure switches are devices that receive a pressure signal and have relay alarm. The relay is activated whenever the pressure passes above or below a certain setpoint alarm.
  • Page 68 Channel 2 must be enabled and selected PRESSURE. You must select the corresponding sensor. On Channel 1, select SWITCH input and enter PRESSURE SWITCH TEST. The MCS-XV shows the pressure measurement and the contact status (OPEN or CLOSED). Press RUN to start the test after filling in all required fields.

  • Page 69: Hart

    (field instrument) overlaps with the analog signal from 4 to 20 mA. To access this function, from the main menu, select the HART ® option. Hart ® communication of the MCS-XV Isocal calibrator is an optional module. The calibrator has three versions: NH (without HART ® communication), CH (HART ® calibrator) and FH (Full-HART ®...
  • Page 70 The mode definition must be performed according to the type of connection to be performed by the user. a) mA Input + HART ® Fig. 43 - Transmitter Powered by the Calibrator Itself (TPS) mA Input + HART ® (Internal Resistor Enabled)
  • Page 71 . If the internal resistor is not enabled, an external resistor of at least 150 Ω in series with the mA input must be inserted. To power the transmitter, the TPS source of the MCS-XV (Fig. 43) or an external source can be used (Fig.
  • Page 72 IMPORTANT: Before connecting the calibrator to the transmitter as shown above, ensure that the mA Input is not selected in the MCS-XV (enter in the Calibrator menu, and select any CH-1 Input other than mA or none). For the connection shown in Fig. 45, use the HART ®...

  • Page 73: Starting Communication

    IMPORTANT: This setting DOES NOT ALLOW the calibrator to read current from the transmitter, but the transmitter will still be able to read and configure its parameters via HART ® 2.5.2. Starting Communication Entering the HART ® menu, the following screen is shown. Enabling the HART ®...
  • Page 74 Enable the use of the internal resistor (250 ) and the HART connection type configuration (mA Input + ® HART ® or HART ® only). For CH mode, in the next window, select the address of the instrument to establish the communication.

  • Page 75: Adjusting The Measurement Range Of A Hart ® Transmitter (Ch Option)

    2.5.3. Adjusting the Measurement Range of a HART ® Transmitter (CH Option) When connecting, appears in the DESCRIPTION a tab data identifying the instrument, such as TAG, manufacturer, description, message, date, measuring range and input filter (damping). Some of these parameters can be changed in the DEFAULT SETTINGS.

  • Page 76: Adjusting The Measurement Range Of A Hart ® Transmitter With Reference (Ch Option)

    2.5.4. Adjusting the Measurement Range of a HART ® Transmitter with Reference (CH Option) The range of the transmitter can also be adjusted generating the minimum and maximum values of the desired range in the transmitter input and adjusting these values as minimum and maximum (set by reference). Select Input mA and press the HART ®...
  • Page 77 (digital), the current that the transmitter wants to generate (AO - DIGITAL OUTPUT), and the current measured by the MCS-XV (ANALOG READ). To adjust the range of the transmitter, generate the signal to the transmitter input corresponding to the lower range value and press the ↓...

  • Page 78: Hart® Transmitter Ma Output Adjustment

    CONFIG tab button. In this section it is possible to adjust the current output of the HART ® transmitter (Output Trim) according to the current measurement of the MCS-XV. This adjustment can be made only when the MCS-XV is connected to a single transmitter with address 0, with the connection standard mA INPUT + HART ®...
  • Page 79 The calibrator will then indicate the measured values at each point. To make the adjustment automatically, simply press the AUTO button. The MCS-XV will send a command to the transmitter to generate 4 and 20 mA (fix). After signal generation, the calibrator will measure these points, and adjust the output (trim).

  • Page 80: Full Hart ® Configurator (Fh)

    To start the HART ® configurator, wait for the MCS-XV to identify and read all instrument parameters. The Isocal MCS-XV will display the message: Reading device information. Please wait... Once connected, information such as TAG, connected instrument model, and Device Description (DD) file will be displayed in the bottom corner of the screen.
  • Page 81 Fig. 52 – Device Parameters Double-click the parameter you want to change and edit the desired value. Parameters identified with the icon have methods. To change them, just double-click the parameter and follow the steps shown. For other parameters, after editing the value the field becomes yellow, indicating that it has been changed, but not saved in the transmitter yet.
  • Page 82 To view the MCS-XV mA input value or change the output setpoint, press the button: Fig. 53 - MCS-XV Input and Output Values...
  • Page 83 To view the device status, press the VIEW menu and DEVICE CONDITION: Fig. 54 – Device status 2.5.6.1 Saving a device configuration in FULL HART ® To save the settings of a HART ® device connected to the calibrator, use the Document Device function. This function is intended to save the configuration of an instrument for later download on another device of the same model or to perform a backup of the applied settings.
  • Page 84 Press the Device menu, located in the upper-left corner of the Full-HART configurator window, then press ® the Document Device option. In the following pop-up, change the file name and write a note about it. To save it, press Save Device Config and then a new pop-up will appear on the screen stating that the configuration storage has been completed.

  • Page 85: Profibus

    2.6. Profibus ® You can connect the calibrator to devices in two ways: using the internal power supply or an external power supply. When using an external power supply, it may be necessary to use a 50 Ω resistor, in these cases, check the technical manual of the device you want to calibrate.

  • Page 86: Profibus ® Communication

    2.6.1. Profibus ® Communication The ISOCAL MCS-XV allows the calibration of instruments that have Profibus ® communication protocol. Through an easy and intuitive menu, it is possible to calibrate one or more devices at the same time without the need for an external power supply.
  • Page 87 Fig. 59 - Profibus ® Configuration Screen The Internal 24 V Power Supply selection chooses whether internal 24 Vdc supply is used or not. When using an external power supply, ensure communication by using a Profibus ® compliant power supply or add a resistor between the power supply and the bus.
  • Page 88 Fig. 60 - Enabling the internal power supply If the calibrator finds a device, a confirmation message appears. Fig. 61 - Confirmation message...
  • Page 89 If there is a problem while searching for devices, an error message appears. Fig. 62 – Error message If the calibrator identifies a device, its address field is set automatically. You can also enter the address manually by pressing the addressing field. After setting up, press the OK button.
  • Page 90 Fig. 63 - Profibus ® screen Configure the number of decimal places of the variable displayed by the connected device. Press the button SIGNAL: PROFIBUS ® , located in the upper left corner of the screen and select the desired number of decimal places. Then press HIDE STATUS to close the menu.
  • Page 91 This function can help to solve some problem in communication with the instrument. After pressing this button, wait for a few seconds to view the variable again. The analog input block (AI) configuration screen is shown in the following figure. Only some (AI) block parameters can be changed by Presys calibrators.
  • Page 92 Fig. 66 – Analog Input Parameters Screen The parameters that can be adjusted by Presys calibrators are as follows: PV Scale: Adjusts the PV_SCALE parameter of the Profibus specification where Upper Value corresponds to a value in engineering unit of the transducer block that will be defined as 100% of the instrument's operating scale.
  • Page 93 Note that this parameter is not from the instrument being calibrated. Presys calibrators can help correct the value of the AI OUT parameter so that the value of the AI Out is closer to the standard value. This correction is performed as follows: Step 1: Enter in the calibrator screen which shows the values at the input and output of the calibrator.
  • Page 94 LV: current value of the Out Scale parameter Lower Value. Standard: Standard value read by the Presys calibrator or entered by the user if the output of the Presys calibrator is not being used. Step 6: Check the calculated value and press the Apply button to save the data in the instrument. If necessary, you can try to repeat the previous steps to make a new adjustment.

  • Page 95: Data Logger

    2.7. Data Logger The MCS-XV allows you to record series of measurements over time to display data in chart or table format. Select CALIBRATOR from the main menu and select the desired type of signal on channel 1 and channel 2.
  • Page 96 .png file. All saved screens can be viewed in the IMAGE menu. These files are saved in the internal SD card of the calibrator. If a USB Pen Drive is connected to MCS-XV, you can choose between saving in the internal SD card or the Pen Drive.

  • Page 97: Automatic Tasks

    2.8. Automatic Tasks The MCS-XV can generate and performing automatic calibration tasks. This function can be used to generate work orders for several instrument types, as well as integrate with ISOPLAN ® calibration management software, integrating reliability and convenience to the main activities involved.
  • Page 98 Press the icon , select TASKS → CREATE NEW TASK. In the Task Info., insert in the indicated fields the data related to the calibration procedure relevant to the task report, the fields in yellow are mandatory. Fill at least the serial number of the instrument to be calibrated, instrument TAG, stabilization time for each point (waiting time in seconds) and the maximum error allowed for the instrument to be calibrated (in % of the span, reading or full scale).
  • Page 99 b) Defining Points and Strategy After finishing setting up the device under test and the procedure information, select in the lower corner the AsFound/AsLeft tab to determine the method of task execution. Expected: expected value at the auxiliary input. • Point: defined point for calibration execution.
  • Page 100 Fig. 70 – Task Points and Strategy Select the Review and Save bar. Choose a name/identification number for the task. To save the template of this task for later use in creating other service orders, press SAVE TEMPLATE and name it. To open this template again, in the task creation screen, press OPEN MODEL.
  • Page 101 Fig. 71 – Reviewing and Saving the Task...

  • Page 102: Executing Tasks

    Make the necessary connections between the calibrator and the instrument to be calibrated and press START. Fig. 72 – Viewing task information The MCS-XV automatically starts to do the calibration generating setpoints registered on task and reading the instrument to be calibrated.

  • Page 103: Viewing Results

    Once a task has been performed, it remains saved in the calibrator. To view the results of a calibration in MCS-XV, in the main menu select TASKS → EXPLORE TASKS. Select the ● PERFORMED option. The list will now display only those tasks that have already been performed.
  • Page 104 . The printer must have been previously configured in SETTINGS → SYSTEM tab → PRINTER CONFIG. (See section 3.4 – System) and connected to the MCS-XV USB Host port (see Fig. 02, 04 and 05, portable, RM and DT versions, respectively). Tasks are saved in the TASKSREPORTS folder, identified by the number of the registered TAG.
  • Page 105 The logo can be changed to one of your own company. To do so, plug a Pen Drive with the logo file into the MCS-XV USB port. Enter the TASKS → ADVANCED TASK OPTIONS → ADVANCED → CERTIFICATE MODEL MANAGER → LOGO and select the file by its name (must have the extension .jpg). We recommend an image size of approx.
  • Page 106 Fig. 74 – Calibration Report Example...

  • Page 107: Task Advanced Options

    2.8.4. Task Advanced Options In the Advanced Task Options menu, by clicking on ADVANCED it is possible to configure/ register the following options: Costumer Manager, export task files to an USB flash drive and enable or disable the files encryption. Fig.

  • Page 108: Help Desk

    2.9. Help Desk MCS- calibrator has a video player and documents viewer. These videos can be viewed while a calibration is performed and are designed to assist in the use of the calibrator. Documents can be, for example, procedures or instructions that can be stored and viewed on the calibrator itself.
  • Page 109 To add recent videos on the calibrator, connect the USB cable to the computer (type A USB) and to the MCS- (Type B USB, see Figures 02, 04 and 05, portable, RM and DT versions, respectively). Open VIDEOS folder. Copy the new video to any sub-folder (category) of the VIDEOS folder. If you prefer to create a new category, simply create a new folder inside VIDEOS with the name of the desired category and copy the video to this folder.
  • Page 110 Fig. 77 – Documents tab Fig. 78 – Utilities tab...

  • Page 111: Settings

    3. SETTINGS The SETTINGS menu has four divisions (tabs at the bottom): DATE AND TIME, NETWORK, SERVICES and SYSTEM, described below: 3.1. Date and Time In the Date and Time bar you can set the date and time, time zone for the calibrator, as well as the time format from the available options.

  • Page 112: Network

    3.2. Network In the NETWORK tab you can configure the calibrator IP address for communication with the computer and Wi-Fi (wireless) network. NOTE: The IP address can be dynamically configured (DHCP) or can be fixed address (Disable DHCP and change desired addresses). Fig.

  • Page 113: Naming The Calibrator

    3.2.1. Naming the Calibrator To name the calibrator to make it easier to find it in a network with many devices, press the DEVICE NAME field, alter the value, and press the OK button. Then, restart the calibrator to store the added information. 3.2.2.

  • Page 114: Viewing Ip Address

    3.2.4. Viewing IP Address When the calibrator is connected to the network it is possible to view and print Task Reports from your computer. Press the network icon to access the configured IP address once connected to the network. When connected to a wireless network, the Wi-Fi network icon will be visible.

  • Page 115: Services

    3.3. Services In the SERVICES the user can configure the calibrator's communication types, among other settings. Fig. 82 – Services configuration...

  • Page 116: Remote Access

    3.3.1. Remote Access a) VNC Virtual Network Computing (or VNC) is a graphical desktop sharing system that uses the Remote Frame Buffer Protocol (RFB) to remotely control another computer or device. By enabling this option, the calibrator's screen can be accessed directly on the computer.
  • Page 117 Fig. 83 - Web Server page On the Web Server, it is possible to monitor the calibrator screen, change the output type and value, and read signals from the inputs.

  • Page 118: Serial Communication

    The Isocal MCS-XV allows control of the inputs and outputs via serial communication. To control the calibrator using SCPI commands, connect a serial cable to the MCS-XV USB Type A port (see section 2.1 - Parts Identification). To enable the function, set the parameters and then press the EXEC key to the ON position.
  • Page 119 *IDN? Description: Instrument identification. Parameters: --- Response: Manufacturer, ID, Serial Number, Software Version *CLS Description: Clears the error list. Parameters: --- Response: --- MEASure:PRESsure? Description: Pressure reading Parameters: --- Response: Pressure reading | unit UNIT[:PRESsure]? Description: Current pressure unit. Parameters: --- Response: Current pressure unit.

  • Page 120: File Sharing And Usb Host Control

    SYSTem:ERRor[:NEXT]? Description: Check the error list. Parameters: --- Response: Last Error MEASure[:SCALar]:CURRent[:DC]? Description: mA Input Reading Parameters: --- Response: mA Input Reading MEASure[:SCALar]:VOLTage[:DC]? Description: V Input Reading Parameters: --- Response: V Input Reading 3.3.3. File sharing and USB host control Edit the sharing and security settings for access to the calibrator using the options available in this section.

  • Page 121: Server Communication

    The calibrator must be restarted to enable access protection. 3.3.4. Server Communication The Isocal MCS-XV calibrator allows connection to a remote server or application by simply typing the path in the address field and pressing the OK button. By checking the AUTOMATIC UPDATE checkbox and setting the time...

  • Page 122: System

    3.4. SYSTEM In the SYSTEM, configure options such as screen brightness and settings, calibrator identification, printer settings, security options, sound options, and language. You can also access the advanced system settings via this menu. 3.4.1. Touchscreen Options Press the ADJUST TOUCHSCREEN button to calibrate the screen, by touching the center of the + signs on the screen (the use of a touch screen stylus is recommended).

  • Page 123: Calibrator Identification

    3.4.3. Calibrator Identification Define information such as location, owner, and calibrator tag. To change the data, press the blank field and type the desired content using the virtual keyboard. To save the information, press SAVE INFO, the CANCEL button aborts the operation. 3.4.4.
  • Page 124 Fig. 84 – Users Manager Please note the functions that each user level has access to in the table below: Function User Level Calibrator Tasks Hart Configurations ® Data-Logger      Operator      ...

  • Page 125: Adjust Cal

    To limit access to the system, press the key icon and then the padlock icon in the SETTINGS → SYSTEM menu. The next time the Calibrator is started, you will be prompted for login and password. To unlock the system, log in as an Admin level user and press the padlock icon until it is open again.

  • Page 126: Adjust

    Failure to follow the warnings and information contained in these instructions may result in damage to the calibrator. ATTENTION! Presys Instruments and Systems is not liable for any damage to the MCS-XV due to failure to follow the information provided. ATTENTION: Be sure to use properly adjusted and calibrated standards.
  • Page 127 Fig. 85 – Adjust Options...

  • Page 128: Inputs Adjustment

    IMPORTANT: Note that the thermocouples are only adjusted after the mV and cold junction (CJC) adjustments have been made. Only in the case of OHM or RTD is it necessary to perform the mV adjustment first. 4.1. Inputs Adjustment 4.1.1. V, mV, and mA Inputs In the Inputs tab, select one of the inputs to perform the adjustment.
  • Page 129 The image below shows the mA adjustment process, use it as an example for the other inputs. Fig. 86 – mA input adjustment...

  • Page 130: Ohms Input

    4.1.2. OHMS Input The Ω input adjustment is done in two steps: Step 1: mV Signal Application For the adjustment below, short-circuit the RTD3(+) and RTD4(+) terminals. mV Signal Terminals PNT1 PNT2 V_OHM3 RTD3(+) e GND IN (-) 90,000 mV 120,000 mV V_OHM4 RTD4(+) e GND IN (-)

  • Page 131: Outputs Adjustment

    4.2. Outputs Adjustment The outputs (except for CJC and Probe) are adjusted in steps. For each STEP, the calibrator generates a signal to be measured that must be registered by the user during the adjustment process. 4.2.1. V, mV, and mA Outputs For these output ranges the screen will display three buttons: STEP1, STEP2, and STEP3.

  • Page 132: Probe Adjustment

    Repeat the procedure for STEP2 and STEP3. Change the leads order connected to the RTD1 terminal with those connected to the RTD2 terminal and select STEP4. Measure the generated signal and save the measured value by default. 4.2.3. Probe Adjustment First, identify the connector pins for the Probe according to the figure below.
  • Page 133 Step 1: mV Signal Application : mV Signal Terminals Terminals PNT1 PNT2 RTD2(+)* GND OUT (-) 70,000mV 120,000 mV RTD2(+)* GND OUT (-) 120,000mV 600,00 mV (*) RTD2, for the PROBE setting, the reference is given by the terminals represented in Fig. 86. Step 2: Standard Resistors Application Connect a decade of resistance or standard resistors to the probe connector, in the RTD1, RTD2, RTD3, and RTD4 positions.

  • Page 134: Pressure Sensor Installation And Adjustment

    5. PRESSURE SENSOR INSTALLATION AND ADJUSTMENT The MCS-XV calibrator allows the installation of new pressure sensors, as well as the adjustment of the capsules already installed. To perform the operations described in this section, please observe the recommendations and warnings.

  • Page 135: Installation

    5.1. Installation To install a new sensor on the MCS-XV, turn off the calibrator and remove the screws corresponding to the side where the sensor will be installed (C1 and C4 - right side / C2 and C3 - left side).
  • Page 136 Inside the calibrator, there is a connector available for each uninstalled capsule. Check its location and connect the capsule to the calibrator. If necessary, disconnect the fuse holder from the mA input for easy access when installing on the right side of the calibrator (slots for C1 and C2 available). ATTENTION: Pay attention to the polarity between the sensor and the calibrator connectors.

  • Page 137: Parameters Configuration

    5.2 Parameters Configuration 5.2.1. Sensor Information In the Main Menu, press SETTINGS and then select the SYSTEM tab. In the top corner of the screen, press the ADJUST CAL. field. A pop-up will appear prompting you for a password, so type 9875 and press ENTER, then Fig.
  • Page 138 Fig. 91 – Accessing the parameters configuration Right in the CAP. INFO tab it is possible to change or enter new data for a determined sensor. To change the information of the newly installed sensor, select its position (if C1, C2, C3 or C4). Press the EDIT button to change the entered fields (serial number, scale start and scale end).
  • Page 139 Fig. 92 – Changing information Through the PARAMETERS tab the pressure sensors parameterization files are installed. Before starting this procedure, make sure that the parameters file (.cap extension) is duly stored in the calibrator memory in a folder named PARAMETERS. IMPORTANT: The .cap file should be sent together with the purchased capsule.

  • Page 140: Mv Adjustment

    When the SAVE button is pressed, a confirmation pop-up will be displayed. Press YES to continue and NO to cancel the operation. 5.2.2. mV Adjustment To perform the mV adjustment of a pressure sensor, use a connection jig as indicated in the picture below. Connect the jig to the sensor connector observing polarity.
  • Page 141 IMPORTANT: The standard electrical signal generator to be used in this adjustment process must have an accuracy of three or four times the accuracy described in the technical specifications of this calibrator. ATTENTION: Do not insert any voltage signal to the pressure sensor before accessing the adjustment menu.

  • Page 142: Pressure Adjustment

    5.2.3. Pressure Adjustment ATTENTION: For absolute, gauge, and vacuum pressure sensors, make the adjustment at a minimum of 6 (six) POINTS across the range. For low pressure and/or differential sensors, make the adjustment at least 11 (eleven) POINTS. IMPORTANT: We recommend the application of pressure close or equivalent to the full scale of the adsensorsbeing adjusted for at least 5 (five) minutes before performing the procedure.
  • Page 143 Fig. 94 – Pressure Adjustment...

  • Page 144: Maintenance

    Technical Manual is verified, call the Technical Assistance service and request more information. 6.1. Battery Replacement (Only for portable MCS-XV To change the battery in the MCS-XV, proceed as follows: Loosen the battery cover screws - figure 95 A. •...
  • Page 145 Fig. 95 – Battery Replacement...

  • Page 146: Battery Calibration (Only For Portable Mcs-Xv)

    6.2. Battery Calibration (Only for portable MCS-XV If the battery of the portable (Field Service) calibrators is completely discharged or needs to be replaced, it is necessary to perform a charge indication recalibration procedure. To perform this process, proceed as follows: Step 1 Be sure to fully charge the battery, respecting the minimum time of 4 (four) hours.
  • Page 147 Fig. 97 – Full charged battery status...
  • Page 148 Step 2 Press the CAL. BAT. button and then, insert in the required field the access password . Press YES to confirm and a confirmation pop-up will be displayed. Fig. 98 – Calibrating the battery...
  • Page 149 Step 3 Remove the battery charger and observe if the battery remaining percentage is reduced and the indicated power current becomes negative. Fig. 99 – Battery usage...

  • Page 150: Replacement Of The Current Input Fuse

    Turn the fuse holder counterclockwise (Fig. 100 A). Try to use a plastic tool to do not damage the fuse holder. • The fuse holder will be loose – Fig. 100 B. • Pull the fuse holder and remove the fuse – Fig. 100 C. • Place the spare fuse, which is in the bag for transporting the MCS-XV. •...
  • Page 151 Fig. 100 – Current input fuse replacement...

  • Page 152: Pressure Units Conversion

    7. PRESSURE UNITS CONVERSION mbar 0.06894757 68.94757 0.006894757 6.894757 68.94757 6894.757 0.06804605 0.07030696 O@4°C O@4°C 703.0696 703.0889 70.30696 70.30889 O@4°C O@4°C 0.7030696 0.7030889 2.306659 2.306726 O@4°C O@20°C O@60°F 27.67990 27.68067 27.72977 27.70759 torr mmHg mmHg@0°C cmHg 51.71500 51.71500 51.71507 5.171500 cmHg@0°C inHg inHg@0°C...
  • Page 153 Presys Presys | Instruments Inc. www.presys.com.br...

This manual is also suitable for:

Mcs-xv-rmMcs-xv-dt

Table of Contents
