Case controller, type EKC 223 and EKC 224

Operation

Operation via display

EKC 223/224 controllers come with four push buttons, a big display, easy and intuitive menu structure, and pre-
defined applications ensure ease of use.
The values will be shown with three digits, and with a "r05 Temp. unit" setting you can determine whether the
temperature is to be shown in °C or in °F.
To prevent any walk-up user from making unauthorized changes, the access to the display menu is restricted by
access codes. Besides this, the parameter "P76 Keyboard lock" provides the following options for handling of the
display keyboard:
1. The display keys are always operative.
2. The display keys will be locked automatically when not used for some time and the keyboard must be unlocked
by pressing the arrow-up and arrow-down keys at the same time.

Key operations

The buttons on the front of the display can be operated with short and long (3s) presses.

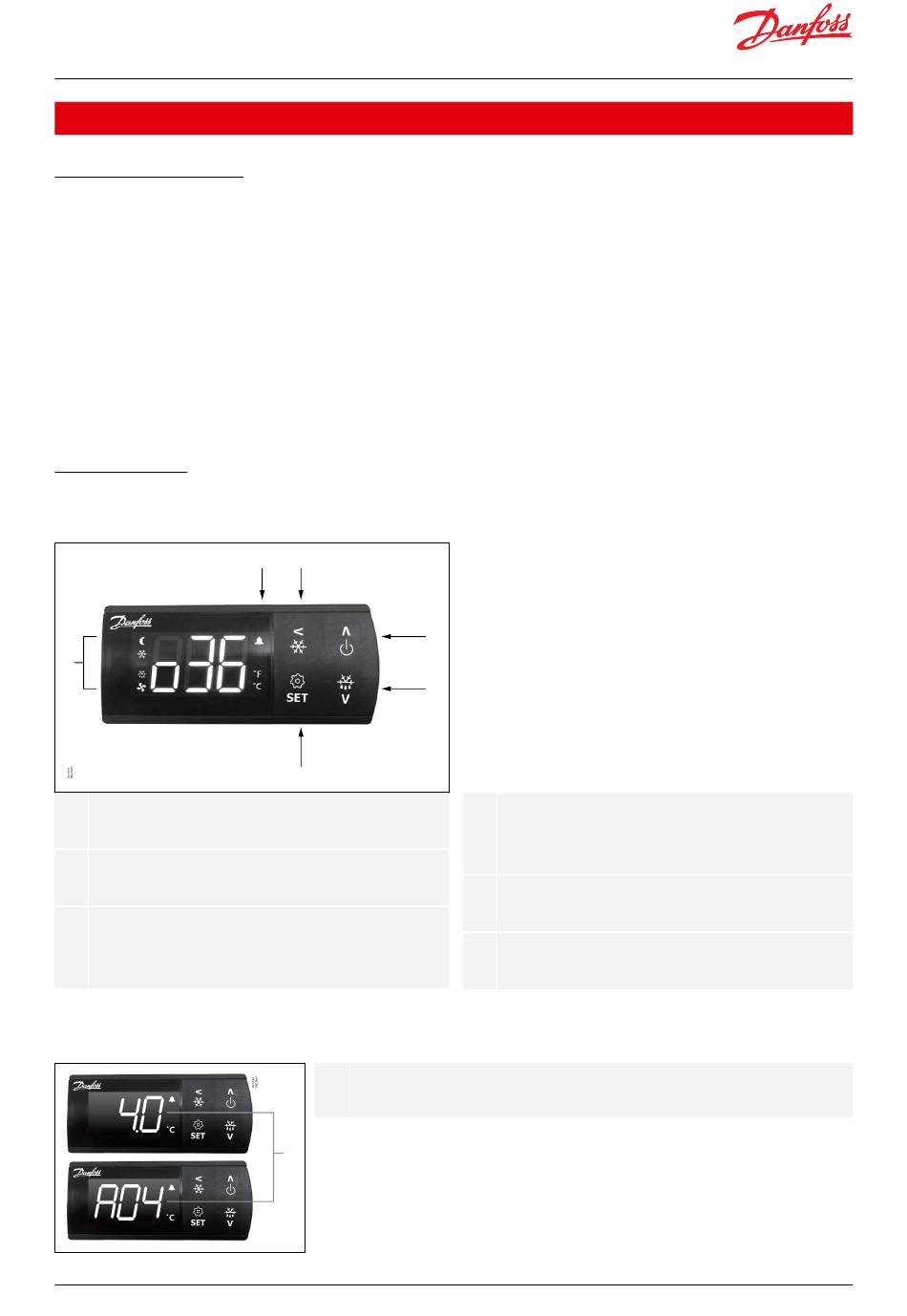

Figure 18: Key operations
A
A Status indication: LEDs light up at ECO/Night
mode, cooling, defrost and fan running.
B Alarm indication: Alarm icon flashes in case of an
alarm.
C Short press = Navigate back
Long press = Initiate pulldown cycle. Display will
show "Pud" to confirm start.

View alarms

Figure 19: View alarms
© Danfoss | Climate Solutions | 2023.05
B C
D
E
F
A Temperature and alarm codes alternate flashes until the alarm is
resolved. The alarm bell flashes during alarm condition.
A
D Short press = Navigate up
Long press = Switch controller ON/OFF (setting
r12 Main switch in ON/OFF position)
E Short press = Navigate down
Long press = Start defrosting cycle
F Short press = Change set point
Long press = Go to parameter menu
