(17) 100/1000Base-X SFP port

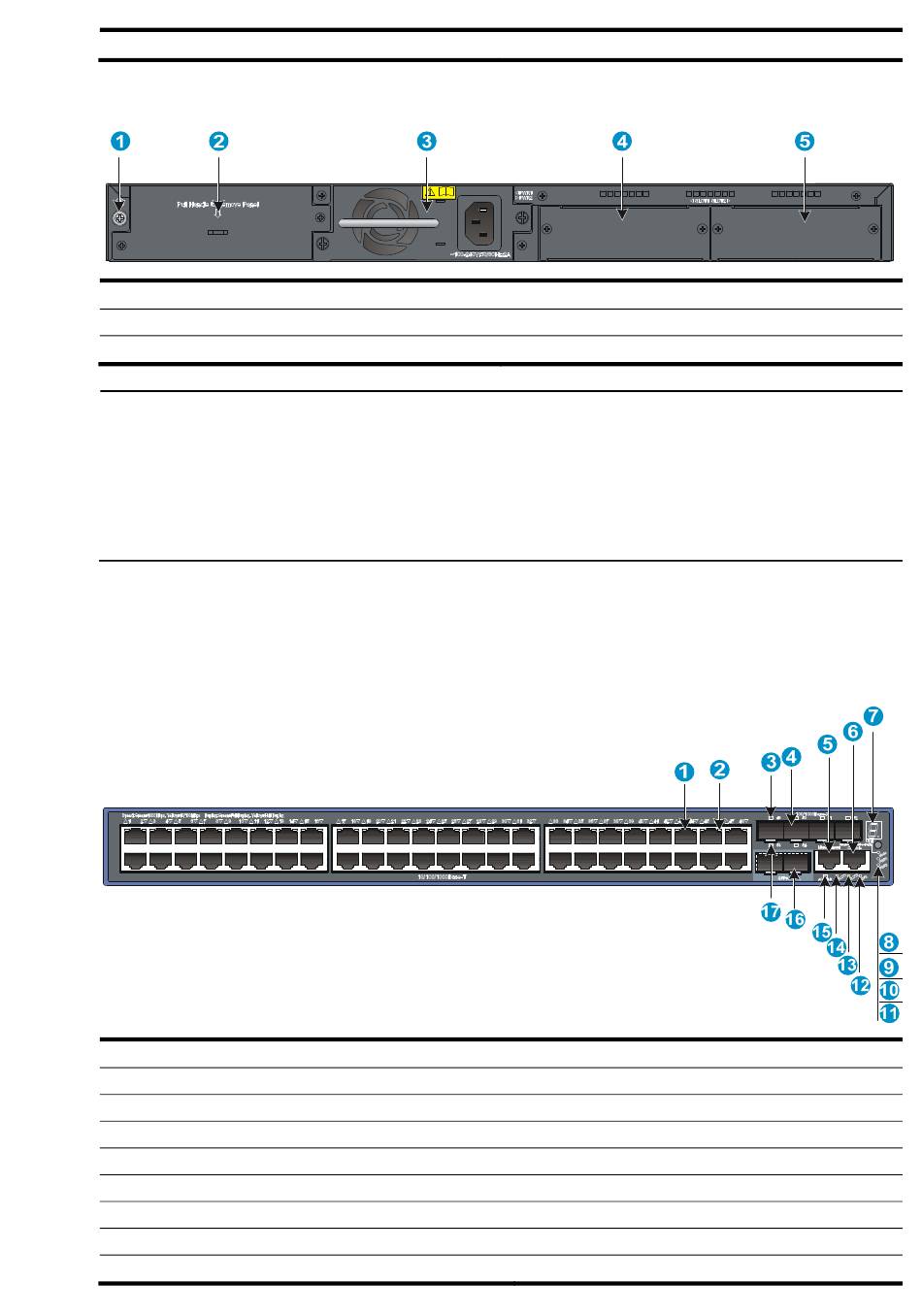

Figure 2 A5500-24G-4SFP HI (2 slots) rear panel
(1) Grounding screw
(3) Power supply slot 2 (PWR2)
(5) Interface card slot 2 (SLOT2)
NOTE:
The A5500-24G-4SFP HI (2 slots) switch comes with the two expansion interface card slots covered by
filler panels.
The A5500-24G-4SFP HI (2 slots) switch comes with power supply slot 1 covered by a filler panel and
power supply slot 2 empty. In this figure, a PSR150-A (JD362A) power supply is installed in power
supply slot 2.

A5500-48G-4SFP HI (2 slots) panel views

Figure 3 A5500-48G-4SFP HI (2 slots) front panel
(1) 10/100/1000 Base-T auto-sensing Ethernet port
(3) SFP port LED
(5) Management Ethernet port (Management)
(7) Seven-segment LED (Unit)
(9) Port mode LED (Mode)
(11) Power supply 2 status LED (PWR2)
(13) Interface card 2 status LED (SLOT2)
(15) Management Ethernet port LED (ACT/LINK)
(17) SFP+ port LED
(2) Power supply slot 1 (PWR1)
(4) Interface card slot 1 (SLOT1)
(2) 10/100/1000 Base-T Ethernet port LED
(4) 100/1000Base-X SFP port
(6) Console port
(8) Port LED mode switching button
(10) Power supply 1 status LED (PWR1)
(12) System status LED (SYS)
(14) Interface card 1 status LED (SLOT1)
(16) SFP+ port
2
