Servomotor - ProMinent DULCOMETER D1C Operating Instructions Manual

Complete Operating Menu / Description

Servomotor

The operating range is defined by the total resistance range of the feedback potentiometer. The
maximum limit of the range actually used is set by defining the control range.
IMPORTANT
• To ensure correct function, the set duration of the stroke position motor should be more
than 25 sec for 0...100 % of setting range.
• Stroke adjustment motor actuation must be carried out with the same care as the
calibration of a sensor!
Access to all setting menus can be blocked with an access code !
Only with servomotor
servomotor
setting ?
Servomotor
Control direction
Control range
NOTE
• When the wide bar is as right as it will go the stroke adjustment motor is fully open.
• The permanent display shows to what degree the motor has opened in % (the greater the
percentage, the farther open the stroke adjustment motor).

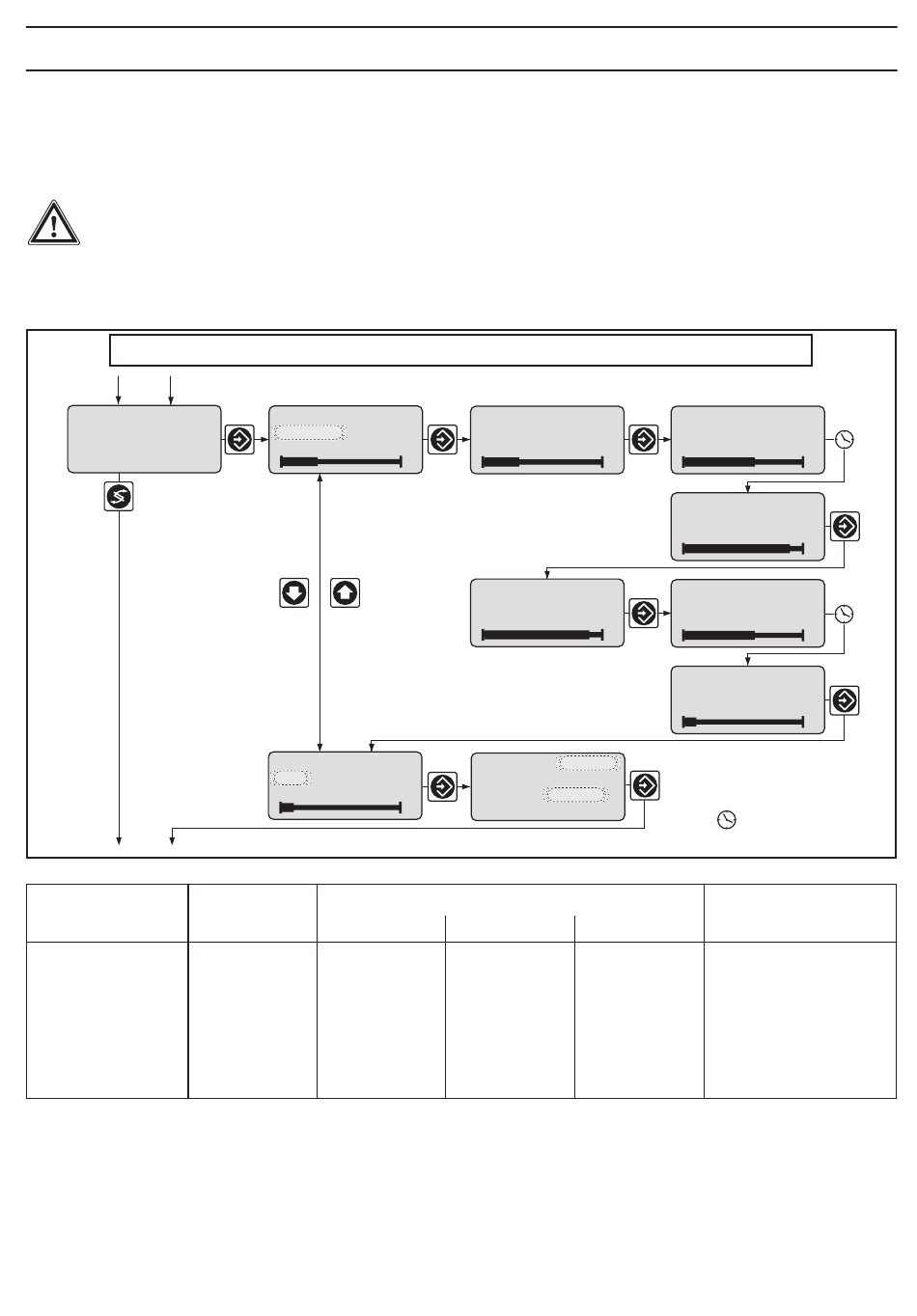

servomotor
setting
current position:
servomotor
OK
current position:
Possible values
Initial value Increment
Setting Setting
ok
off
Chlorine Chlorine
Dechlorine
100 % 1 %
servomotor
open ?
servomotor
close ?
chlor
dosing:
control range:
0 % to 100 %
operating range
Lower value Upper value
10 % 100 %
servomotor
open
please wait !
servomotor
opened !
value take over ?
servomotor
close
Please wait !
servomotor
closed !
value take over ?
= automatic timing
D1C2-Cl-025-GB
Remarks
in % of operating range
