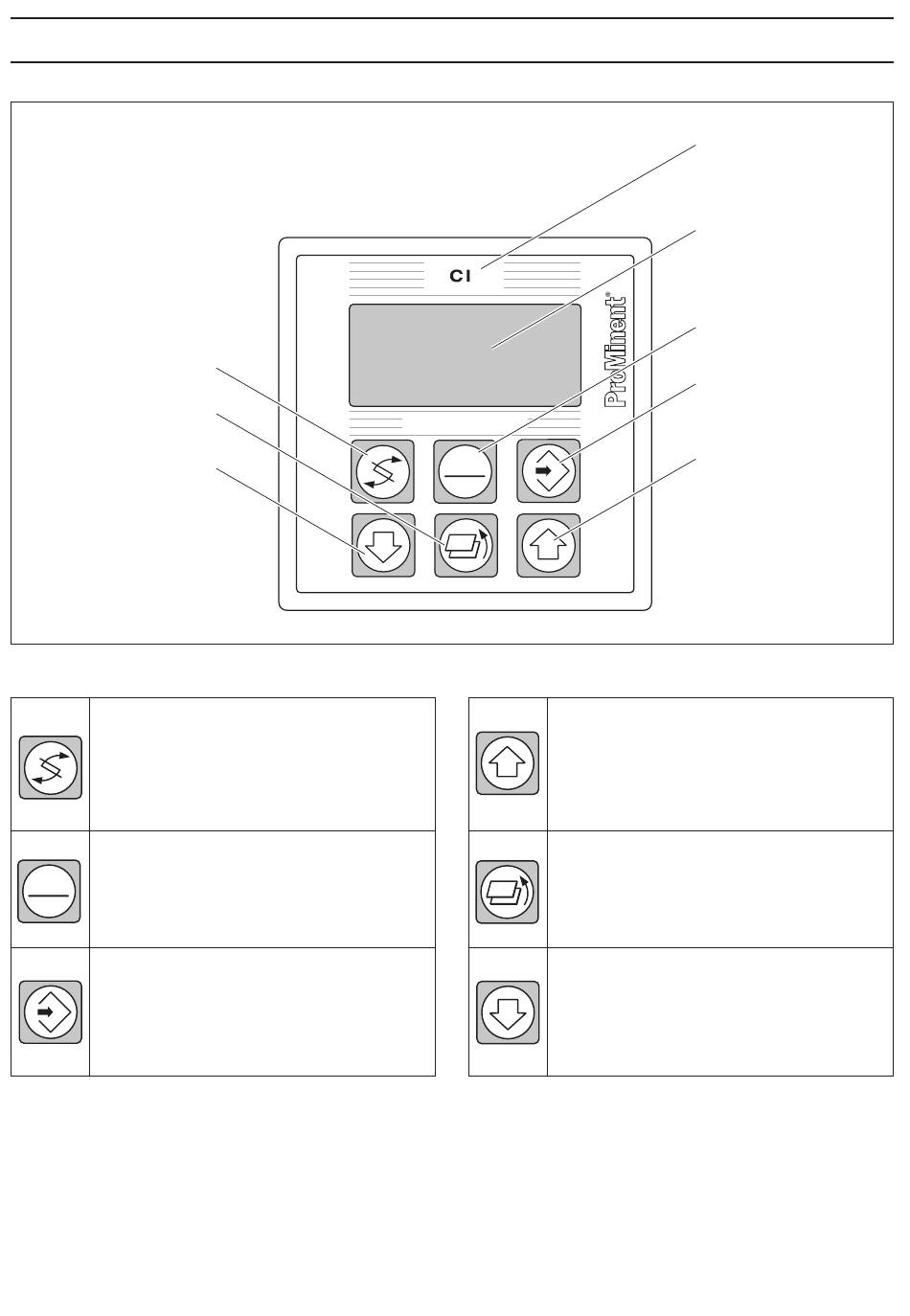

Device Overview / Controls

"Change"
Button
"Branch back"
Button
"Down"
Button
CHANGE button
To change over within a menu level
and to change from one variable to
another within a menu point.
START/STOP button
STOP
Start/stop of control and metering
START
function.
ENTER button
To accept, confirm or save a dis-
played value or status. For alarm
acknowledgement.
4
DULCOMETER ®
STOP
START
UP button
To increase a displayed numerical value
and to change variables (flashing
display)
BRANCH BACK button
Back to permanent display or to start
of relevant setting menu.
DOWN button
To decrease a displayed numerical
value and to change variables (flashing
display).
Display field
Measured variable
Chlorine
Graphic display
"Start/stop"
Button
"Enter"
Button
"Up"
Button
