Gr1404Lt / Gr1408Lt Drawings & Details - Lighting Controls Blue Box LT Series Installation, Operation & Maintenance Manual

THE BLUE BOX LT OVERVIEW
GR1404LT / GR1408LT DRAWINGS & DETAILS
3
5

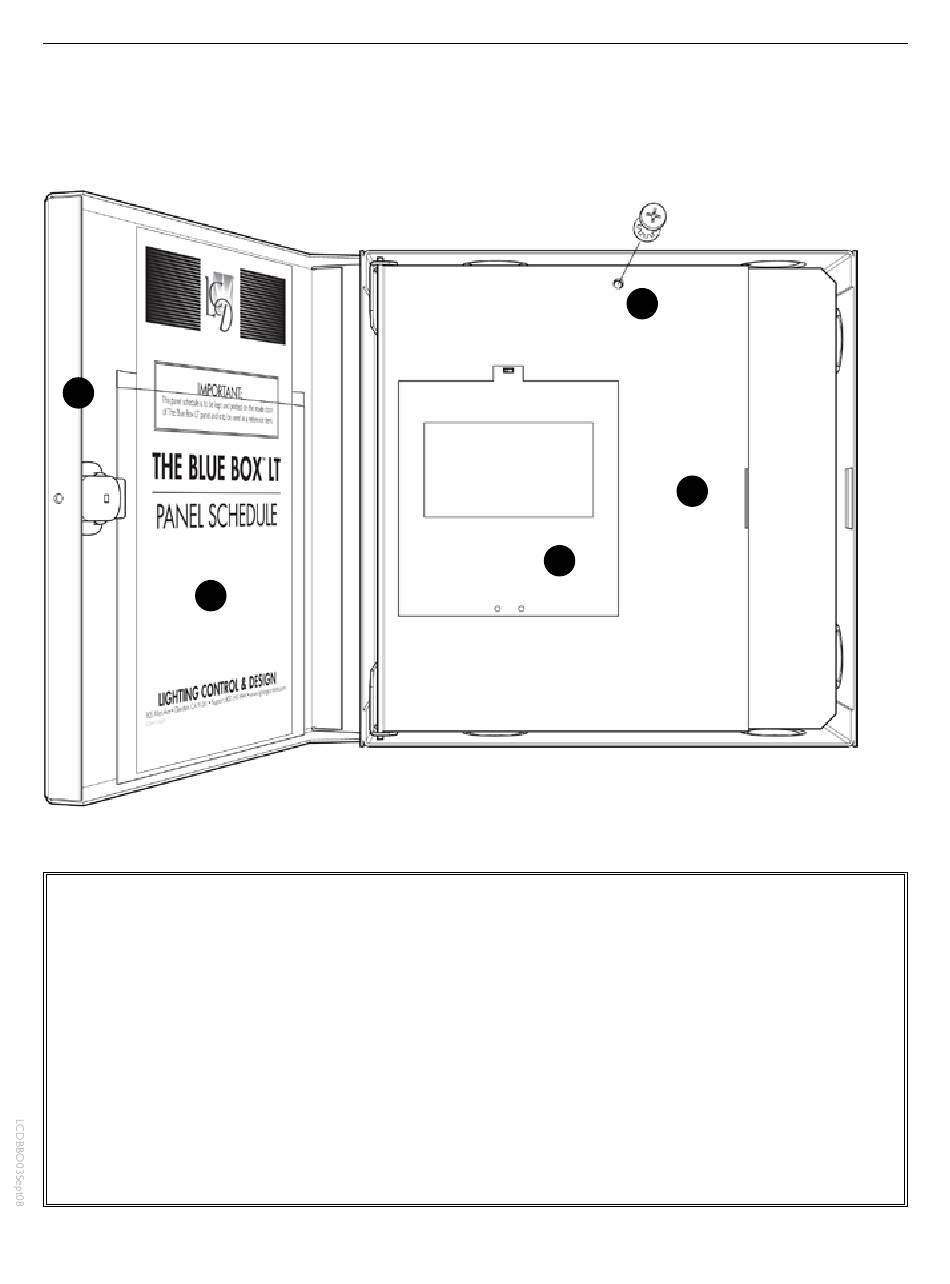

1 . Screw fastener secures white door (Master only) .
2 . White door provides a barrier between Control
Interface and High Voltage connections beneath
(Master only) .
3 . Hinged locking blue door .
4 . DTC Clock / Display & Programming Interface:
32-channel, 365-day astronomical clock with
Scroll and Tab to access control features for en-
tire system (Master only) .
5 . Door pocket contains the following documenta-
NEMA 1 surface mount enclosure with hinged door and key lock;
• 8 . 3 75" h x 8 . 3 75" w x 3 . 1 25" d (GR1404 LT)
• 13 . 5 " h x 8 . 5 " w x 3 . 1 25" d (GR1408 LT)
GR1404/08 LT (FRONT DOOR OPEN)
1
2
4
tion: Refer to the Blue Box LT Installation Guide
for more information on these documents .
a) Panel Schedule
b) (optional) DI Card schedule .
c) If this is a Master panel, the System Device
Schedule on the back of the Panel Schedule
should also be filled-out . . It lists out all of the
digital lighting controls devices, where they are
and what they do . (see System Start-Up Guide
for more information .
7
