THE BLUE BOX LT PARTS REPLACEMENT & INSTALLATION GUIDE
To address and verify the bus recognizes replace-
ment Control Card
The Blue Box master Control Card contains the time
clock for the system . To save time, the time, date and
location settings can be pre-loaded at the factory - if
requested . Time schedules and any groups which had
Loads (relays) in LCP 1 (master panel) will need to be
re-programmed .
If your system has a modem, contact Technical Support
to have all of the programming (listed below) done .
8 . Navigate to SCAN BY SERIAL NUMBER screen:
USER MENU > SET UP MENU > RESTRICTED
(PASSCODE 900001) > ADDRESSING –
BUS SCAN> BUS DIAGNOSTICS > MORE
DIAGNOSTICS > DEVICE MANAGEMENT >
SCAN BY SERIAL#
9 . ENTER to begin a system scan .
SCAN BY SERIAL#
SCANNING COMPLETE.
FOUND 3 ITEMS.
NOT ADDRESSED: 0
HIT ENTER WHEN READY
10 . If the Screen shows no collisions SCROLL through
each device noting down the address (ID) and
the device type (3 button switch, etc)

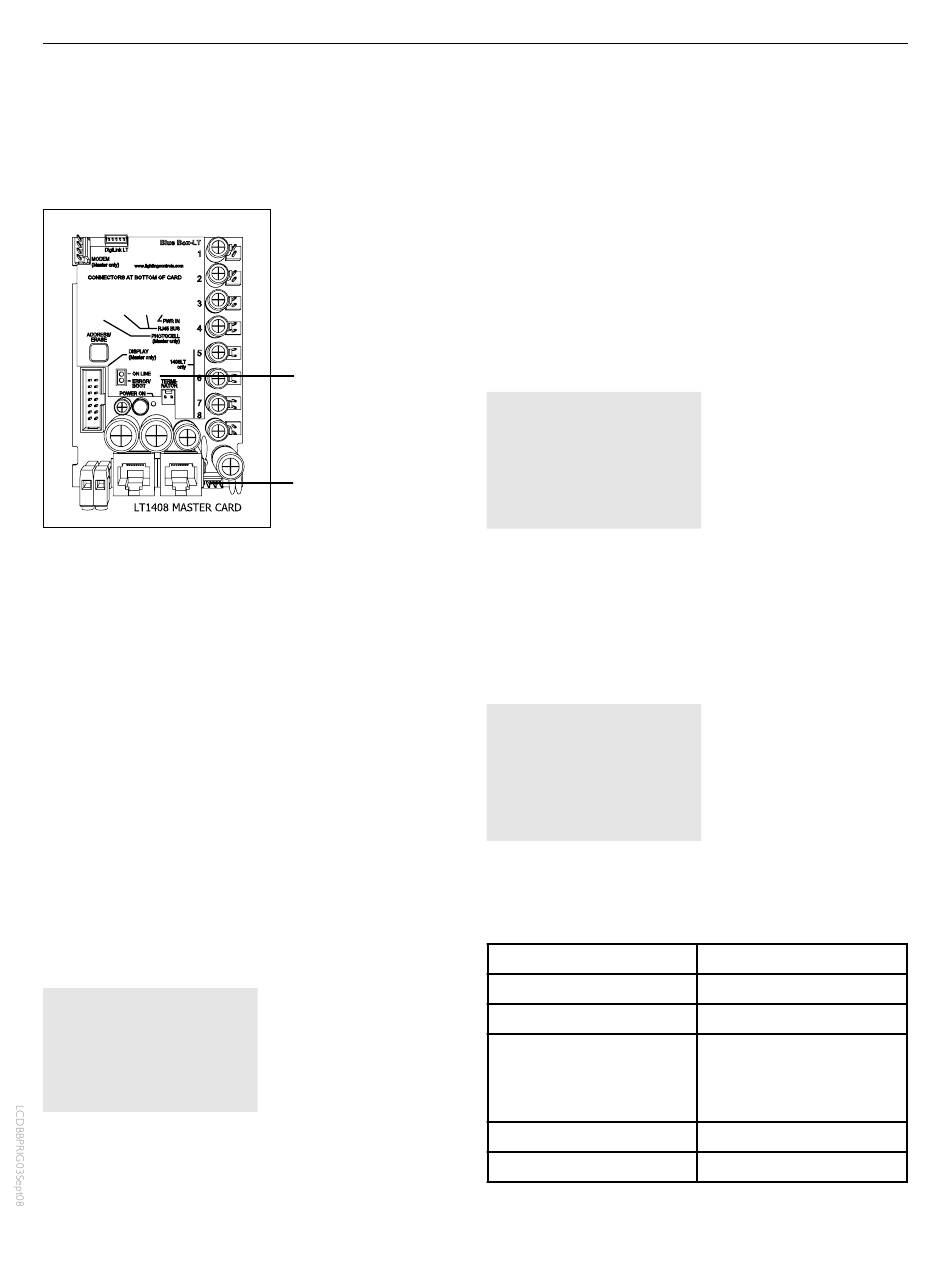

Master Control Card
Power
11 . If collisions exist, contact Technical Support .
12 . If no collisions exist or collisions have been
resolved, the bus needs to be mapped so that
the devices can be programmed . Navigate to
the BUS MAP screen: USER MENU > SETUP
MENU > RESTRICTED (PASSCODE 900001) >
ADDRESSING – BUS SCAN> BUS MAP .
ADDRESSING PAGE 1-19
ID1 : UNUSED
ID2 : UNUSED
ID3 : UNUSED
ID4 : UNUSED
ID5 : UNUSED
ID6 : UNUSED
ID7 : UNUSED
13 . To define the Master Blue Box, TAB to ID1 and
SCROLL to select Panel LCP 1 (4 or 8 relay
panels) . For a 16 relay panel, TAB to ID2 and
SCROLL to "Panel LCP 1" also . Every 8 relays
take up an address, so a 16 relay panel will take
up 2 addresses .
ADDRESSING PAGE 2-19
ID1 : PANEL LCP1
ID2 : PANEL LCP1
ID3 : UNUSED
ID4 : UNUSED
ID5 : UNUSED
ID6 : UNUSED
ID7 : UNUSED
14 . Map the remaining devices into the BUS MAP
screen using the data from the SCAN BY SERIAL
NUMBER screen
Item
Blue Box LT-4
Blue Box LT-8
Blue Box LT-16
(Blue Box LT 16 requires
two addresses)
1 button digital switch
DI-14
51
Bus Map Name
Panel LCP X (1-32)
Panel LCP Y (1-32)
Panel LCP Z (1-32)
Panel LCP Z (1-32)
1 Btn . Switch, etc
14 Btn . Switch
