HARDWARE ACTIvATION TROUBLESHOOTING
(Continued)
BUS SPLITTING TECHNIqUE
!
Note:To speed up troubleshooting when readings are
Ω
less than 200
on the Continuity or Short-Circuit test,
refer to the "Bus Length Chart" earlier in this document
before splitting the bus; this can provide an approximate
distance to a shorted pair or extra terminator from the
test point .
1 .
On the middle device of the bus, disconnect one Cat .
5 cable to create two smaller "half-buses" .
2 .
Test each "half-bus" to find the side with the out-of-
range values .
3 .
Repeat steps 1 & 2 on the out-of-range "half-bus, " to
create another "half-bus" until the cable, crimp or device
creating the out of range measurements is located .
The idea is to split a bus in half and then half again – over and
over until the bad area has been located. It is OK to visually
inspect each cable, crimp or device to detect the problem.
LIGHTING CONTROL & DESIGN
905 Allen Ave • Glendale, CA 91201 • Support 800-345-4448 • www.lightingcontrols.com

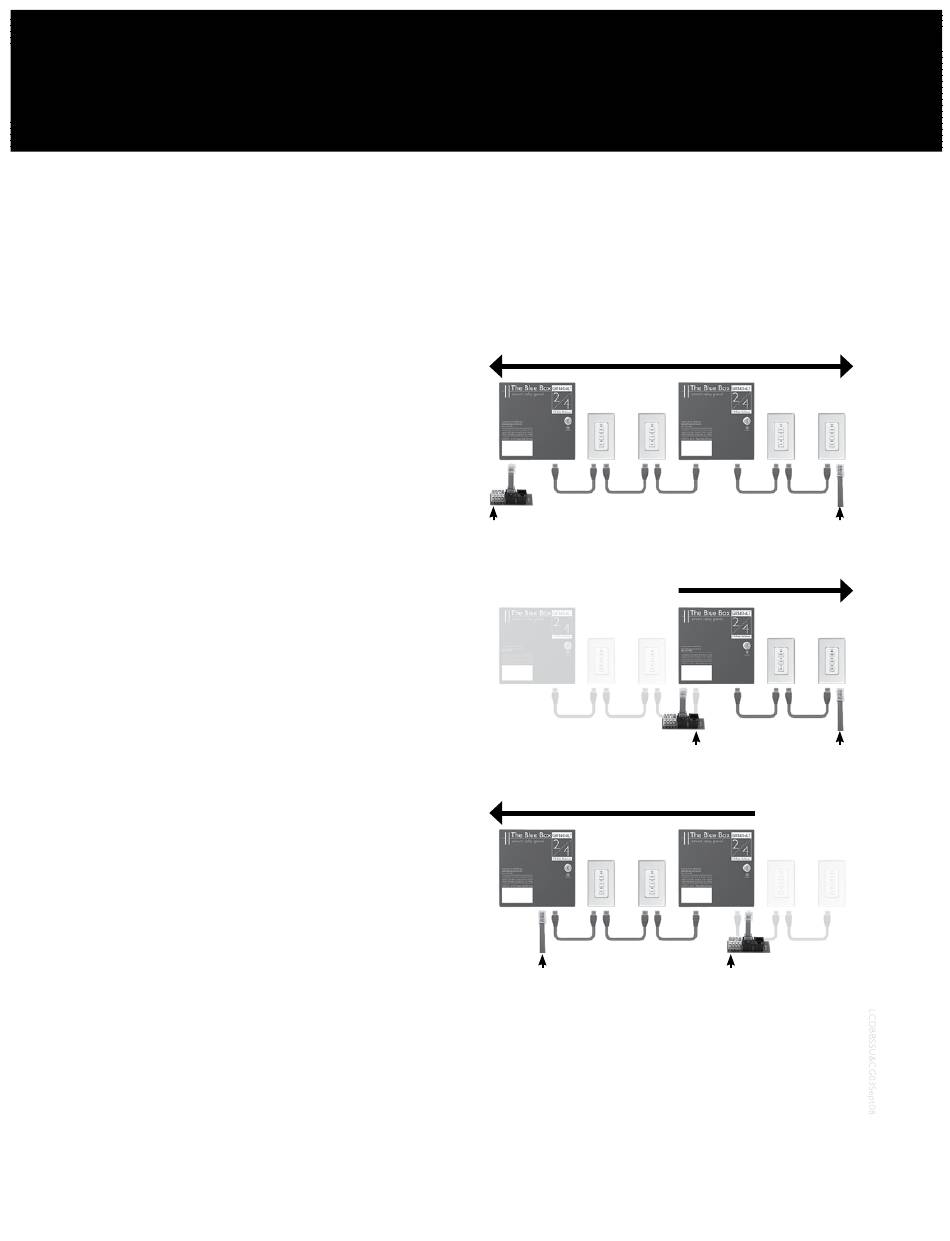

Bus Checker Card
