THE BLUE BOX LT PARTS REPLACEMENT & INSTALLATION GUIDE
13 .
Navigate to SCAN BY SERIAL NUMBER screen:
USER MENU > SETUP MENU > RESTRICTED
(PASSCODE 900001) > ADDRESSING –
BUS SCAN> BUS DIAGNOSTICS > MORE
DIAGNOSTICS > DEVICE MANAGEMENT >
SCAN BY SERIAL#
SERIAL# SCAN
BACK
FWD
|SAVE|
SERIAL# CE80
ADR:
1
LCP1
NO ADDRESS COLLISION FOUND ON
THIS CARD
14 .
ENTER to begin a system scan .
15 .
If collisions exist, contact Technical Support .
16 .
If no collisions exist or collisions have been
resolved, the bus needs to be mapped so that
the devices can be programmed . Navigate to
the BUS MAP screen: USER MENU > SETUP
MENU > RESTRICTED (PASSCODE 900001) >
ADDRESSING – BUS SCAN> BUS MAP .
Re-program Groups
17 .
Any Groups which had relays in the LCP with the
new control card will need to be modified to add
back the relays from that LCP . Relays from other
LCPs remain unaffected .

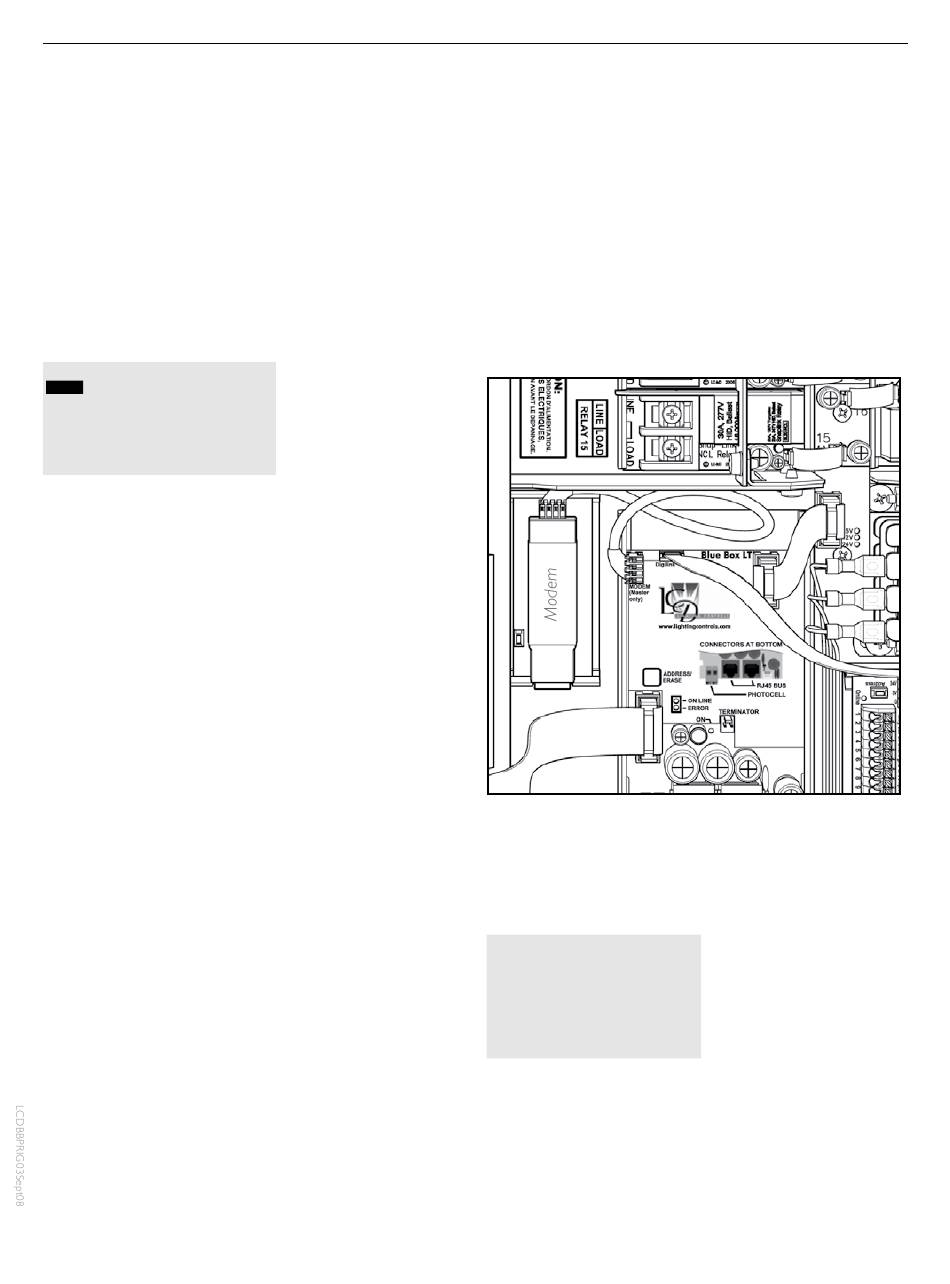

REPLACING A MODEM (MASTER PANELS ONLY)
To remove a defective modem
1 .
Disconnect the power/data cable connected to
the modem .
2 .
Disconnect the RJ-12 (phone line)
3 .
Pry the modem out of the plastic track by applying
a flat-blade screw driver to the slot located on
the side of the card .
To replace a defective Modem
4 .
Snap the new modem into the plastic track .
5 .
Re-connect cables .
6 .
Re-power the Blue Box LT
7 .
After the defective part replacement installation
is complete, return the part using the prepaid
USP return label and envelope to LC&D .
[Note: If the defective part is not returned within a
30-day period, your account will be automatically billed
for the part. ]
To verify replacement modem is operational:
8 .
Navigate to the DIAL UP HOST screen: USER
MENU > SETUP MENU > RESTRICTED
(PASSCODE 900001) > REMOTE SYSTEM
MENU > DIAL UP HOST
DIALING UP HOST
ENTER THE COMPLETE
PHONE NUMBER OF THE
HOST AND HIT ENTER.
9 .
Refer to the DIAL UP HOST section in the O&M
manual to place an outbound call to a cell phone
or land line .
10 .
A successful call means installation is complete .
If the call was not successful, contact Technical
Support for assistance .
53
