Lighting Controls Blue Box LT Series Installation, Operation & Maintenance Manual page 46

HARDWARE ACTIvATION TROUBLESHOOTING
(Continued)

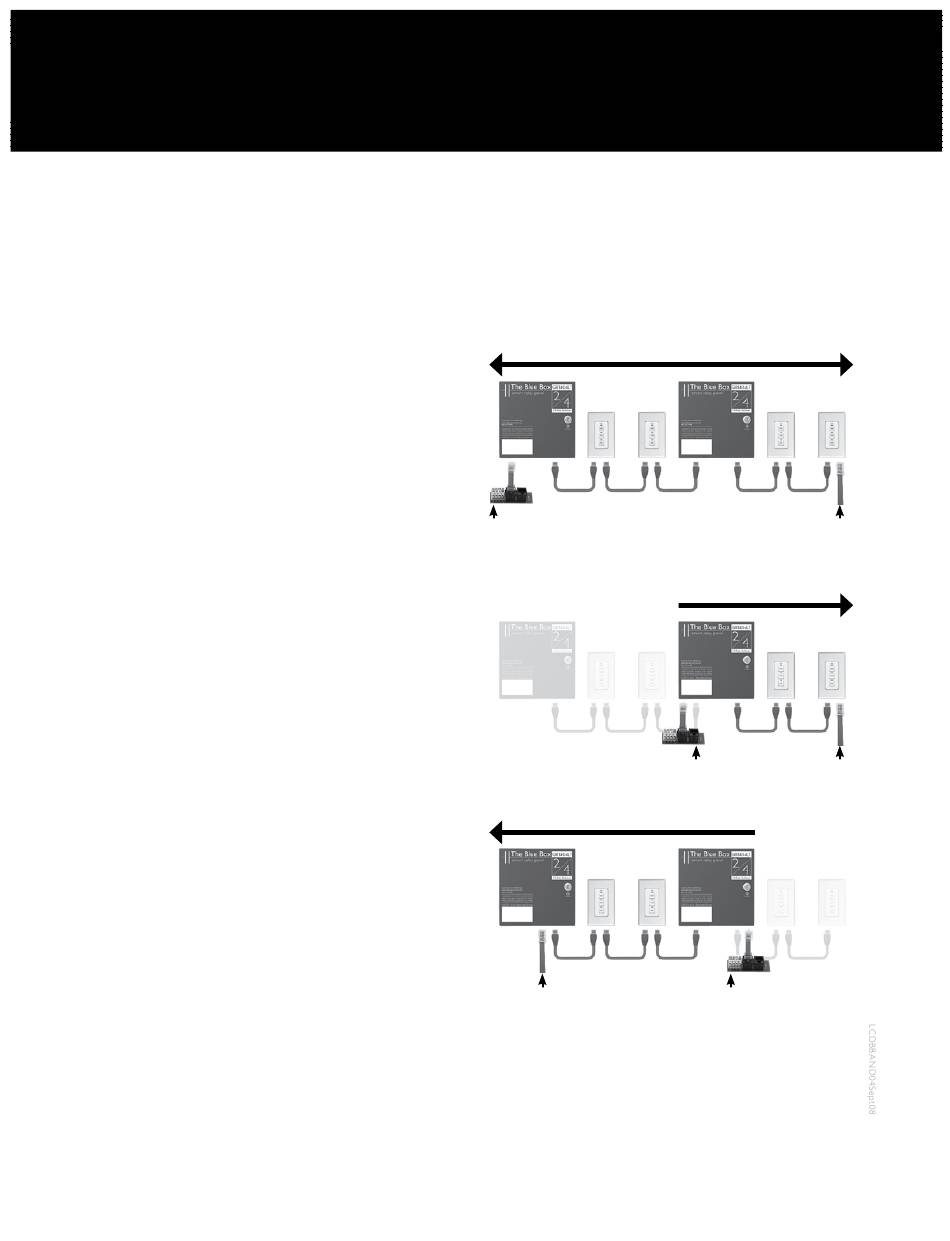

BUS SPLITTING TECHNIqUE
!
Note:To speed up troubleshooting when readings are
Ω
less than 200 on the Continuity or Short-Circuit test,
refer to the "Bus Length Chart" earlier in this document
before splitting the bus; this can provide an approximate
distance to a shorted pair or extra terminator from the
test point .
1 . On the middle device of the bus, disconnect one Cat .
5 cable to create two smaller "half-buses" .
2 . Test each "half-bus" to find the side with the out-of-
range values .
3 . Repeat steps 1 & 2 on the out-of-range "half-bus, "
to create another "half-bus" until the cable, crimp or
device creating the out of range measurements is lo-
cated .
The idea is to split a bus in half and then half again – over and
over until the bad area has been located. It is OK to visually
inspect each cable, crimp or device to detect the problem.
LIGHTING CONTROL & DESIGN
905 Allen Ave Glendale, CA 91201 Support 800-345-4448
• •
Bus Checker Card
Bus Checker Card
Data/Power Jumper
www . l ightingcontrols . c om
•
Data/Power Jumper
Data/Power Jumper
Bus Checker Card
