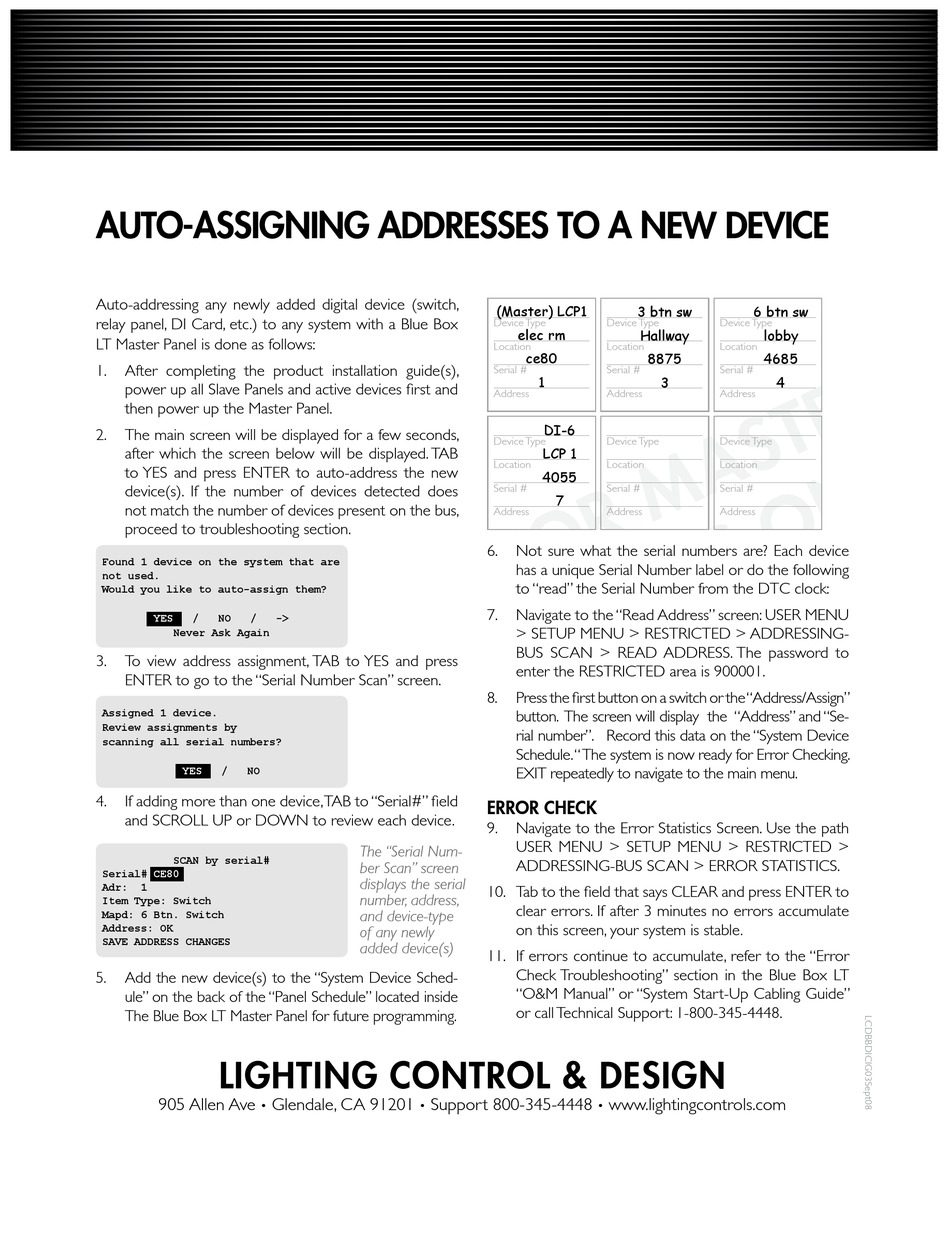

AUTO-ASSIGNING ADDRESSES TO A NEW DEvICE
Auto-addressing any newly added digital device (switch,
relay panel, DI Card, etc . ) to any system with a Blue Box
LT Master Panel is done as follows:
1 . After completing the product installation guide(s),
power up all Slave Panels and active devices first and
then power up the Master Panel .
2 . The main screen will be displayed for a few seconds,
after which the screen below will be displayed . TAB
to YES and press ENTER to auto-address the new
device(s) . If the number of devices detected does
not match the number of devices present on the bus,
proceed to troubleshooting section .
Found 1 device on the system that are
not used.
Would you like to auto-assign them?
YES / NO /
Never Ask Again
3 . To view address assignment, TAB to YES and press
ENTER to go to the "Serial Number Scan" screen .
Assigned 1 device.
Review assignments by
scanning all serial numbers?
YES / NO
4 . If adding more than one device, TAB to "Serial#" field
and SCROLL UP or DOWN to review each device .
SCAN by serial#
Serial# CE80
Adr: 1
Item Type: Switch
Mapd: 6 Btn. Switch
Address: OK
SAVE ADDRESS CHANGES
5 . Add the new device(s) to the "System Device Sched-
ule" on the back of the "Panel Schedule" located inside
The Blue Box LT Master Panel for future programming .
LIGHTING CONTROL & DESIGN
905 Allen Ave Glendale, CA 91201
•
->
The "Serial Num-
ber Scan" screen
displays the serial
number, address,
and device-type
of any newly
added device(s)
Support 800-345-4448
•
SYSTEM DEVICE SCHEDULE: (for Master Panels Only)
(Master) LCP1
(Master) LCP1
3 btn sw
Device Type Device Type
elec rm
Hallway
Location Location
ce80 8875
Serial # Serial #
1 1
Address Address
DI-6
Device Type Device Type
LCP 1
Location Location
4055
Serial # Serial #
7
Address Address
6 . Not sure what the serial numbers are? Each device
Device Type Device Type
has a unique Serial Number label or do the following
Location Location
to "read" the Serial Number from the DTC clock:
Serial # Serial #
7 . Navigate to the "Read Address" screen: USER MENU
Address Address
> SETUP MENU > RESTRICTED > ADDRESSING-
BUS SCAN > READ ADDRESS . The password to
enter the RESTRICTED area is 900001 .
Device Type Device Type
8 . Press the first button on a switch or the "Address/Assign"
Location Location
button . The screen will display the "Address" and "Se-
Serial # Serial #
rial number" . Record this data on the "System Device
Address Address
Schedule . " The system is now ready for Error Checking .
EXIT repeatedly to navigate to the main menu .
LIGHTING CONTROL & DESIGN
ERROR CHECk
905 Allen Ave Glendale, CA 91201 Support 800-345-4448 www.lightingcontrols.com
9 . Navigate to the Error Statistics Screen . Use the path
LCDBBIG13Aug08
USER MENU > SETUP MENU > RESTRICTED >
ADDRESSING-BUS SCAN > ERROR STATISTICS .
10 . Tab to the field that says CLEAR and press ENTER to
clear errors . If after 3 minutes no errors accumulate
BB Panel Schedule.indd 4
on this screen, your system is stable .
11 . If errors continue to accumulate, refer to the "Error
Check Troubleshooting" section in the Blue Box LT
"O&M Manual" or "System Start-Up Cabling Guide"
or call Technical Support: 1-800-345-4448 .
www . l ightingcontrols . c om
•
6 btn sw
Device Type Device Type
lobby
Location Location
4685
Serial # Serial #
3 4
Address Address
Device Type Device Type
Location Location
Serial # Serial #
Address Address
Device Type Device Type
Location Location
Serial # Serial #
Address Address
Device Type Device Type
Location Location
Serial # Serial #
Address Address
LCP 2
telecom
af97
5
