  • Page 1 SIM7600V-H_User Manual_V1.00...
  • Page 2 Smart Machine Smart Decision Compliance Information: FCC Compliance Statement: This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 SIM7600V-H_User Manual_V1.00 General Notes SIMCom offers this information as a service to its customers to support the application and engineering efforts that use the products designed by SIMCom. The information provided is based on the requirements specifically from the customers. SIMCom has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s...

  • Page 4: Table Of Contents

    Smart Machine Smart Decision Contents Contents............................... 4 Table Index............................6 Figure Index............................7 Revision History..........................8 1 Introduction............................9 1.1 Product Outline..........................9 1.2 Hardware Interface Overview..................... 9 1.3 Hardware Block Diagram......................9 1.4 Functional Overview......................... 10 2 Package Information........................12 2.1 Pin Assignment Overview......................12 2.2 Pin Description..........................
  • Page 5 Smart Machine Smart Decision 3.11 Other interface......................... 35 3.11.1 Sink Current Source......................35 3.11.2 ADC...........................36 4 RF Specifications..........................37 4.1 LTE RF Specifications......................37 4.2 LTE Antenna Design Guide...................... 37 4.3 GNSS............................41 4.3.1 GNSS Technical specification.................... 41 4.3.2 GNSS Application Guide....................42 5 Electrical Specifications........................
  • Page 6 Smart Machine Smart Decision Table Index Table 1 : SIM7600V-H frequency bands........................9 Table 2 : General features.............................10 Table 3 : Pin Definitions............................13 Table 4 : IO parameters definition........................14 Table 5 : Pin description............................14 Table 6 : VBAT Pins electronic characteristic......................20 Table 7 : Recommended zener diode list......................21...
  • Page 7 Smart Machine Smart Decision Figure Index Figure 1 : SIM7600V-H Block Diagram......................10 Figure 2 : Pin assignment overview........................12 Figure 3 : Dimensions (Unit: mm)........................18 Figure 4 : Footprint recommendation (Unit: mm)....................19 Figure 5 : Power supply application circuit......................20 Figure 6 : Linear regulator reference circuit......................

  • Page 8: Revision History

    Smart Machine Smart Decision Revision History Data Version Description of change Author 2018-02-24 V1.00 Shengwu.sun SIM7600V-H_User Manual_V1.00 2018-02-24...

  • Page 9: Introduction

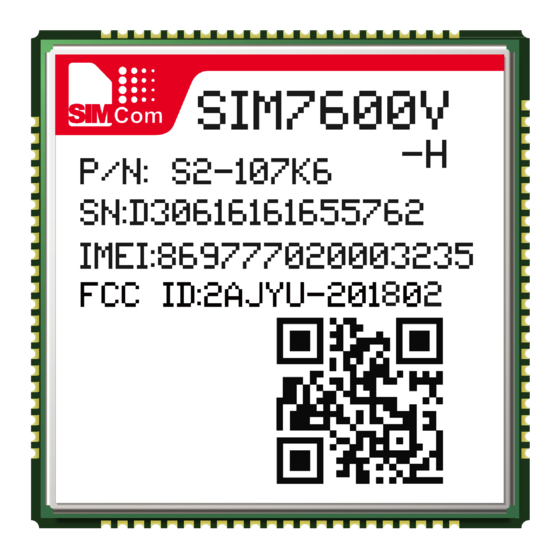

    Introduction This document describes the electronic specifications, RF specifications, interfaces, mechanical characteristics and testing results of the SIMCom SIM7600V-H. With the help of this document and other software application notes/user guides, users can understand and use modules to design and develop applications quickly.

  • Page 10: Functional Overview

    Smart Machine Smart Decision Figure 1: SIM7600V-H Block Diagram Functional Overview Table 2: General features Feature Implementation Power supply Single supply voltage 3.4～4.2V Power saving Current in sleep mode : <5mA Radio frequency bands Please refer to the table 1 Transmitting power LTE: Class 3 (0.25W)
  • Page 11 Smart Machine Smart Decision Can be used as the AT commands or data stream channel. Support RTS/CTS hardware handshake Multiplex ability according to GSM 07.10 Multiplexer Protocol. USB 2.0 specification-compliant as a peripheral Firmware upgrade over USB interface Firmware upgrade USB USB 2.0 specification-compliant as a peripheral Weight:5.5g Physical characteristics...

  • Page 12: Package Information

    Smart Machine Smart Decision Package Information Pin Assignment Overview All functions of the SIM7600V-H will be provided through 87 pads that will be connected to the customers’ platform. The following Figure is a high-level view of the pin assignment of the SIM7600V-H.
  • Page 13 Smart Machine Smart Decision Table 3: Pin Definitions Pin No. Pin name Pin No. Pin name PWRKEY RESET SPI_CLK SPI_MISO SPI_MOSI SPI_CS USB_VBUS USB_DN USB_DP VDD_1V8 USB_ID USIM_DATA USIM_RST USIM_CLK USIM_VDD SD_CMD SD_DATA0 SD_DATA1 SD_DATA2 SD_DATA3 SD_CLK SDIO_DATA1 SDIO_DATA2 SDIO_CMD SDIO_DATA0 SDIO_DATA3 SDIO_CLK...

  • Page 14: Pin Description

    Smart Machine Smart Decision PCM_OUT PCM_IN PCM_SYNC PCM_CLK GNSS_ANT MAIN_ANT COEX1* COEX2 BOOT_CFG0* COEX3* GPIO77 Before the normal power up, pin48 cannot be pulled up *Note: Pin Description Table 4: IO parameters definition Pin type Description Power input Power output Analog input Analog input/output Bidirectional input /output...
  • Page 15 Smart Machine Smart Decision （The voltage can be configured to 2.8V by AT command）. 1.8V SMPS output with Max If unused, keep it 50mA current output for open. VDD_1V8 external circuit, such as level shift circuit. 1,2,5, 10,14,37 ,40,41,4 3,57,58, Ground 60,61,64 ,65,77,7...
  • Page 16 Smart Machine Smart Decision If unused, please keep SPI_MOSI SPI master out/slave in data them open. SPI_CS SPI chip-select output Valid USB detection input with USB_VBUS DI,PD 3.0~5.25V detection voltage Negative line of the differential, USB_DN bi-directional USB signal. Positive line of the differential, USB_DP bi-directional USB signal.
  • Page 17 Smart Machine Smart Decision Flight Mode control input. open. High level(or open): Normal DO NOT PULL UP DI,PU FLIGHTMODE GPIO43 DURING Mode Low level: Flight Mode NORMAL POWER Operating status output. High level: Power on and STATUS firmware ready Low level: Power off GPIO41 GPIO GPIO43...

  • Page 18: Mechanical Information

    Smart Machine Smart Decision Mechanical Information The following figure shows the package outline drawing of Module. Figure 3: Dimensions (Unit: mm) SIM7600V-H_User Manual_V1.00 2018-02-24...

  • Page 19: Footprint Recommendation

    Smart Machine Smart Decision Footprint Recommendation Figure 4: Footprint recommendation (Unit: mm) SIM7600V-H_User Manual_V1.00 2018-02-24...

  • Page 20: Interface Application

    Smart Machine Smart Decision Interface Application Power Supply On VBAT pads, a ripple current up to 2A typically, may cause voltage drop. Therefore, the power supply for these pads must be able to provide sufficient current up to more than 2A in order to avoid the voltage drop of more than 300mV.

  • Page 21: Recommended Power Supply Circuit

    Smart Machine Smart Decision In addition, in order to guard over voltage protection, it is suggested to use a zener diode with 5.1V reverse zener voltage and more than 500mW power dissipation. Table 7: Recommended zener diode list Manufacturer Part Number power dissipation Package On semi...

  • Page 22: Voltage Monitor

    Smart Machine Smart Decision 3.1.3 Voltage Monitor To monitor the VBAT voltage, the AT command “AT+CBC” can be used. For monitoring the VBAT voltage outside or within a special range, the AT command “AT+CVALARM” can be used to enable the under-voltage warning function. If users need to power off Module, when the VBAT voltage is out of a range, the AT command “AT+CPMVT”...

  • Page 23: Power Off

    Smart Machine Smart Decision VBAT PWRKEY (Input) on(status) STATUS (Output) on(uart) Active Undefined UART Port USB Port on(usb) Active Undefined Figure 9: Power on timing sequence Table 8: Power on timing and electronic characteristic Symbol Parameter Min. Typ. Max. Unit The time of active low level impulse of PWRKEY pin to power on module The time from power-on issue to STATUS pin...

  • Page 24: Reset Function

    Smart Machine Smart Decision For details about “AT+CPOF” and “AT+CPMVT”, please refer to Document [1]. These procedures will make modules disconnect from the network and allow the software to enter a safe state and save data before modules are powered off completely. The power off scenario by pulling down the PWRKEY pin is illustrated in the following figure.

  • Page 25: Uart Interface

    Smart Machine Smart Decision The RESET pin has been pulled up to 1.8V internally, so it does not need to be pulled up externally. It is strongly recommended to put a100nF capacitor and an ESD protection diode close to the RESET pin.
  • Page 26 Smart Machine Smart Decision Figure 12: UART full modem Figure 13: UART null Modem The Module UART is 1.8V voltage interface. If user’s UART application circuit is a 3.3V voltage interface, the level shifter circuits should be used for voltage matching. The TXB0108RGYR provided by Texas Instruments is recommended.

  • Page 27: Ri And Dtr Behavior

    Smart Machine Smart Decision 3.3.2 RI and DTR Behavior The RI pin can be used to interrupt output signal to inform the host controller such as application CPU. Normally RI will stay at high level until certain conditions such as receiving SMS, or a URC report come in.

  • Page 28: Usb Application Guide

    Smart Machine Smart Decision 3.4.1 USB Application Guide Module can be used as a USB device. Module supports the USB suspend and resume mechanism which can reduce power consumption. If there is no data transmission on the USB bus, Module will enter suspend mode automatically and will be resumed by some events such as voice call, receiving SMS, etc.

  • Page 29: Usim Application Guide

    Smart Machine Smart Decision USIM_VDD Table 12: USIM Electronic characteristic 3.0V mode ( =2.95V) Symbol Parameter Min. Typ. Max. Unit USIM_ LDO power output voltage 2.75 2.95 3.05 High-level input voltage 0.65*USIM_VDD USIM_VDD +0.3 Low-level input voltage -0.3 0.25*USIM_VDD High-level output voltage USIM_VDD -0.45 USIM_VDD Low-level output voltage...

  • Page 30: Recommended Usim Card Holder

    Smart Machine Smart Decision Shielding the SIM card signal by ground well  Recommended to place a 100nF capacitor on SIM_VDD line and keep close to the SIM  card holder Add some TVS which parasitic capacitance should not exceed 50pF ...

  • Page 31: Pcm Interface

    Smart Machine Smart Decision PCM Interface Module provides a PCM interface for external codec, which can be used inmaster mode with short sync and 16 bits linear format. Table 14: PCM Format Characteristics Specification LineInterfaceFormat Linear(Fixed) Datalength 16bits(Fixed) PCM Clock/Sync Source Master Mode(Fixed) PCMClockRate 2048 KHz (Fixed)

  • Page 32: Pcm Application Guide

    Smart Machine Smart Decision Figure 22: Module to EXT codec timing Table 15: PCM Timing Parameters Parameter Description Min. Typ. Max. Unit T(sync) PCM_SYNC cycle time – – μs T(synch) PCM_SYNC high level time – – T(syncl) PCM_SYNC low level time –...

  • Page 33: I2C Interface

    Smart Machine Smart Decision Figure 23: Audio codec reference circuit Note: Module can transmit PCM data by theUSB portbesidesthe PCM interface. For more details please refer to documents [1] and [23]. I2C Interface Module provides a I2C interface compatible with I2C specification, version 2.1, with clock rate up to 400 kbps.

  • Page 34: Network Status

    Smart Machine Smart Decision Network Status The NETLIGHT pin is used to control Network Status LED, its reference circuit is shown in the following figure. Figure 25: NETLIGHT reference circuit Note: The value of the resistor named “R” depends on the LED characteristic. Table 16: NETLIGHT pin status NETLIGHT pin status Module status...

  • Page 35: Other Interface

    Smart Machine Smart Decision Table 18: Pin multiplex function list Pin Number Pin Name Default Function Alternate Function GPIO11 GPIO10 USIM_DET GPIO34 USIM_DET GPIO23,SPI_CLK PCM_CLK PCM_CLK I2C_SCL PCM_SYNC PCM_SYNC GPIO20,SPI_MOSI PCM_IN PCM_IN, GPIO21,SPI_MISO GPIO22,SPI_CS_N PCM_OUT PCM_OUT I2C_SDA Note ： For more details of AT commands about GPIO multiplex function,please refer to document [1].

  • Page 36: Adc

    Smart Machine Smart Decision Note: The sinking current can be adjusted to meet the design requirement through the AT command “AT+ CLEDITST =<0>, <value>”.The “value” ranges from 0 to 8, on behalf of the current from 0mA to 40mA by 5mA step. 3.11.2 ADC Module has 1 dedicated ADC pins named ADC.

  • Page 37: Rf Specifications

    Users should connect antennas to Module’s antenna pads through the micro-strip line or other types of RF trace. The trace impedance must be controlled in 50Ω. SIMCom recommends that the total insertion loss between Module and antenna should meet the following requirements:...
  • Page 38 Smart Machine Smart Decision 2300MHz-2650MHz <1.2dB To facilitate the antenna tuning and certification test, a RF connector and an antenna matching circuit should be added. The maximum gain of the Main antenna gain should not exceed 11dBi for LTE B2/B4 8dBi for LTE B5/B13 considering the SAR radio.
  • Page 39 LXES15AAA1-153 Murata Note ： SIMCom suggests the LTE auxiliary antenna to be kept on, since there are many high bands in the designing of FDD-LTE. Because of the high insert loss of the RF cable and layout lines, the receiver sensitivity of these bands above will have risk to meet the authentication without the diversity antenna.For more details about auxiliary antenna design notice,please...
  • Page 40 Smart Machine Smart Decision SIM7600V-H_User Manual_V1.00 2018-02-24...

  • Page 41: Gnss

    50Ω. GNSS SIM7600V-H merges GNSS satellite and network information to provide a high-availability solution that offers industry-leading accuracy and performance. This solution performs well, even in very challenging environmental conditions where conventional GNSS receivers fail, and provides a platform to enable wireless operators to address both location-based services and emergency mandates.

  • Page 42: Gnss Application Guide

    Smart Machine Smart Decision GNSS data format: NMEA-0183  GNSS Current consumption : 100mA (LTE Sleep ,in total on VBAT pins)  GNSS antenna: Passive/Active antenna  Note: If the antenna is active type, the power should be given by main board, because there is no power supply on GPS antenna pad.
  • Page 43 NMEA sentences are automatic and no command is provided. NMEA sentences include GSV, GGA, RMC, GSA, and VTG. Before using GNSS, user should configure SIM7600V-H in proper operating mode by AT command. Please refer to related document for details. SIM7600V-H can also get position location information through AT directly.

  • Page 44: Electrical Specifications

    Smart Machine Smart Decision Electrical Specifications Absolute Maximum Ratings Absolute maximumrating for digital and analog pins of Module are listed in the following table: Table 28: Absolute maximum ratings Parameter Min. Max. Unit Voltage at VBAT -0.5 Voltage at VBUS -0.5 Voltage at digital pins (RESET,SPI,GPIO,I2C,UART,PCM) -0.3...

  • Page 45: Operating Mode

    Smart Machine Smart Decision The operating temperature of Module is listed in the following table. Table 31: Operating temperature Parameter Min. Typ. Max. Unit Normal operation temperature ℃ Extended operation temperature* ℃ Storage temperature ℃ *Note: Module is able to make and receive voice calls, data calls, SMS and make LTE traffic in -40℃...

  • Page 46: Sleep Mode

    Smart Machine Smart Decision power supply. In this mode, the RF part of the module will not work but the serial port and USB port are still accessible. The power consumption in this mode is lower than normal mode. Module will go into power off mode by sending the AT command “AT+CPOF”...

  • Page 47: Esd Notes

    Smart Machine Smart Decision Table 33: Current consumption on VBAT Pins (VBAT=3.8V) LTE Sleep/Idle mode LTE supply current Sleep mode Typical: 1.56 Idle mode Typical: 22 (without USB connection) LTE Data @5 MHz 22.2dBm Typical: 589mA LTE-FDD B2 @10 MHz 22.7dBm Typical: 577mA @20 MHz 22.38dBm Typical: 626mA @5 MHz...

  • Page 48: Smt Production Guide

    Figure 32: Top and bottom view of Module Typical SMT Reflow Profile SIMCom provides a typical soldering profile. Therefore the soldering profile shown below is only a generic recommendation and should be adjusted to the specific application and manufacturing constraints.

  • Page 49: Moisture Sensitivity Level (Msl)

    Smart Machine Smart Decision Moisture Sensitivity Level (MSL) Module is qualified to Moisture Sensitivity Level (MSL) 3 in accordance with JEDEC J-STD-033. If the prescribed time limit is exceeded, users should bake modules for 192 hours in drying equipment (<5% RH) at 40+5/-0°C, or 72 hours at 85+5/-5°C. Note that plastic tray is not heat-resistant, and only can be baked at 45°...

  • Page 50: Packaging

    Smart Machine Smart Decision Packaging Module module support tray packaging. Figure 34: Packaging introduce Module tray drawing： Module tray drawing Figure 35: introduce Table 36: Tray size Length（±3mm） Width（±3mm） Module number 242.0 161.0 Small carton drawing： SIM7600V-H_User Manual_V1.00 2018-02-24...
  • Page 51 Smart Machine Smart Decision Small carton drawing Figure 36: introduce Table 37: Small Carton size Length（±10mm） Width（±10mm） Height（±10mm） Module number 15*20=300 Big carton drawing： drawing Figure 37: Big carton introduce Table 38: Big carton size Length（±10mm） Width（±10mm） Height（±10mm） Module number 300*4=1200 SIM7600V-H_User Manual_V1.00 2018-02-24...

  • Page 52: Appendix

    Smart Machine Smart Decision Appendix A. Reference Design Figure 38: Reference design Note: The UART port suggest to be used by isolated circuit . SIM7600V-H_User Manual_V1.00 2018-02-24...

  • Page 53: Coding Schemes And Maximum Net Data Rates Over Air Interface

    Smart Machine Smart Decision B. Coding Schemes and Maximum Net Data Rates over Air Interface Table 39: Coding schemes and maximum net data rates over air interface Multislot definition(GPRS/EDGE) Slot class DL slot number UL slot number Active slot number GPRS coding scheme Max data rata（4 slots）...
  • Page 54 Smart Machine Smart Decision Category 9 10.2Mbps 16QAM,QPSK Category 10 14.4Mbps 16QAM,QPSK Category 11 0.9Mbps QPSK Category 12 1.8Mbps QPSK Category 13 17.6Mbps 64QAM Category 14 21.1Mbps 64QAM Category 15 23.4Mbps 16QAM Category 16 28Mbps 16QAM Category 17 23.4Mbps 64QAM Category 18 28Mbps 64QAM...

  • Page 55: Related Documents

    Smart Machine Smart Decision C. Related Documents Table 40: Related documents Title Description SIM7X00 Series_AT SIM7X00 Series_AT Command Manual Command Manual_V1.xx ITU-T Draft Serial asynchronous automatic dialing and control recommendationV.25ter Digital cellular telecommunications (Phase 2+); AT command GSM 07.07 set for GSM Mobile Equipment (ME) GSM 07.10 Support GSM 07.10 multiplexing protocol Digital cellular telecommunications (Phase 2+);...
  • Page 56 Smart Machine Smart Decision [19] GCF-CC V3.23.1 Global Certification Forum - Certification Criteria Directive of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain [20] 2002/95/EC hazardous substances in electrical and electronic equipment (RoHS) [21] Module...

  • Page 57: Terms And Abbreviations

    Smart Machine Smart Decision D. Terms and Abbreviations Table 41: Terms and Abbreviations Abbreviation Description Analog-to-Digital Converter Antenna Reference Point Bit Error Rate Base Transceiver Station Coding Scheme Circuit Switched Data Clear to Send Digital-to-Analog Converter Discontinuous Reception Digital Signal Processor Data Terminal Equipment (typically computer, terminal, printer) Data Terminal Ready Discontinuous Transmission...
  • Page 58 Smart Machine Smart Decision Short Message Service serial peripheral interface SMPS Switched-mode power supply TDMA Time Division Multiple Access Terminal Equipment, also referred to as DTE Transmit Direction UART Universal Asynchronous Receiver & Transmitter VSWR Voltage Standing Wave Ratio SIM phonebook Not connect EDGE Enhanced data rates for GSM evolution...

  • Page 59: Safety Caution

    Smart Machine Smart Decision E. Safety Caution Table 42: Safety caution Marks Requirements When in a hospital or other health care facility, observe the restrictions about the use of mobiles. Switch the cellular terminal or mobile off, medical equipment may be sensitive and not operate normally due to RF energy interference.
  • Page 60 Smart Machine Smart Decision Contact us: Shanghai SIMCom Wireless Solutions Ltd. Add: SIM Technology Building, No.633, Jinzhong Road, Changning District, Shanghai P.R. China 200335 Tel：+86 21 3235 3300 Fax：+86 21 3235 3020 URL：www.simcomm2m.com SIM7600V-H_User Manual_V1.00 2018-02-24...
