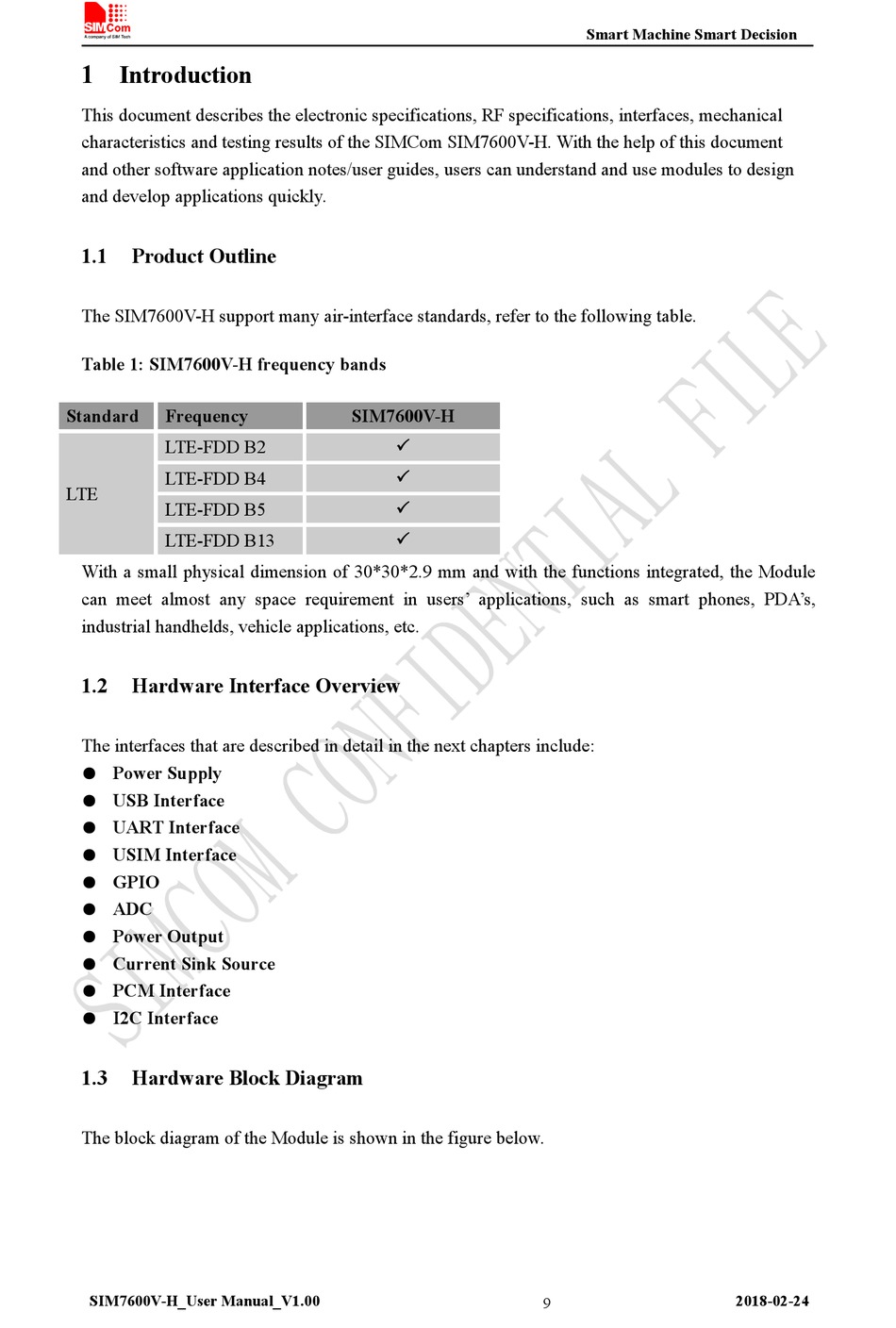

Introduction

This document describes the electronic specifications, RF specifications, interfaces, mechanical
characteristics and testing results of the SIMCom SIM7600V-H. With the help of this document
and other software application notes/user guides, users can understand and use modules to design
and develop applications quickly.
1.1

Product Outline

The SIM7600V-H support many air-interface standards, refer to the following table.
Table 1: SIM7600V-H frequency bands
Standard Frequency
LTE-FDD B2
LTE-FDD B4
LTE
LTE-FDD B5
LTE-FDD B13
With a small physical dimension of 30*30*2.9 mm and with the functions integrated, the Module
can meet almost any space requirement in users' applications, such as smart phones, PDA's,
industrial handhelds, vehicle applications, etc.
1.2

Hardware Interface Overview

The interfaces that are described in detail in the next chapters include:
Power Supply
●
USB Interface
●
UART Interface
●
USIM Interface
●
GPIO
●
ADC
●
Power Output
●
Current Sink Source
●
PCM Interface
●
I2C Interface
●
1.3

Hardware Block Diagram

The block diagram of the Module is shown in the figure below.
