Stop Display (Option
MP-PROD only)

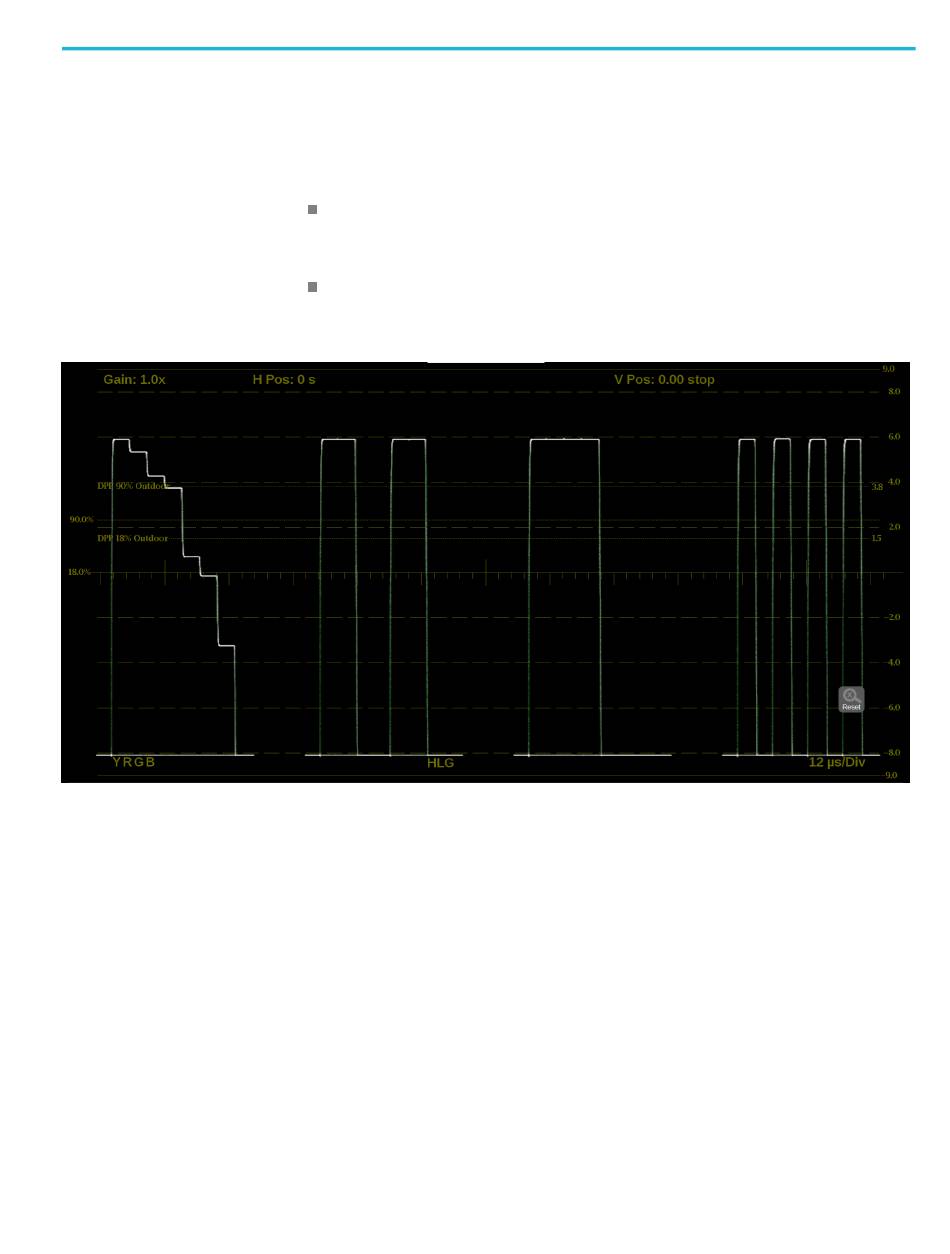

Figure 45: Stop Display with Stop scale
PRISM MPI and MPX Media Analysis Platform User Manual
In the Stop Display application settings menu (press and hold in the application
tile and select the gear icon), select Display light or Scene light from the
Reference setting depending on your application. The trace represents light level
in the vertical axis. (See page 110, Stop Display application.)
Scene Light shows a Stop graticule in the vertical axis and is fixed regardless
of the selected Gamma. It is used for scene setting and camera exposure
adjustment.
Display Light show a Nits graticule in the vertical axis and is fixed regardless
Gamma selected. It is used for mastering the content for a targeted HDR
system.
