Application information

Audio application

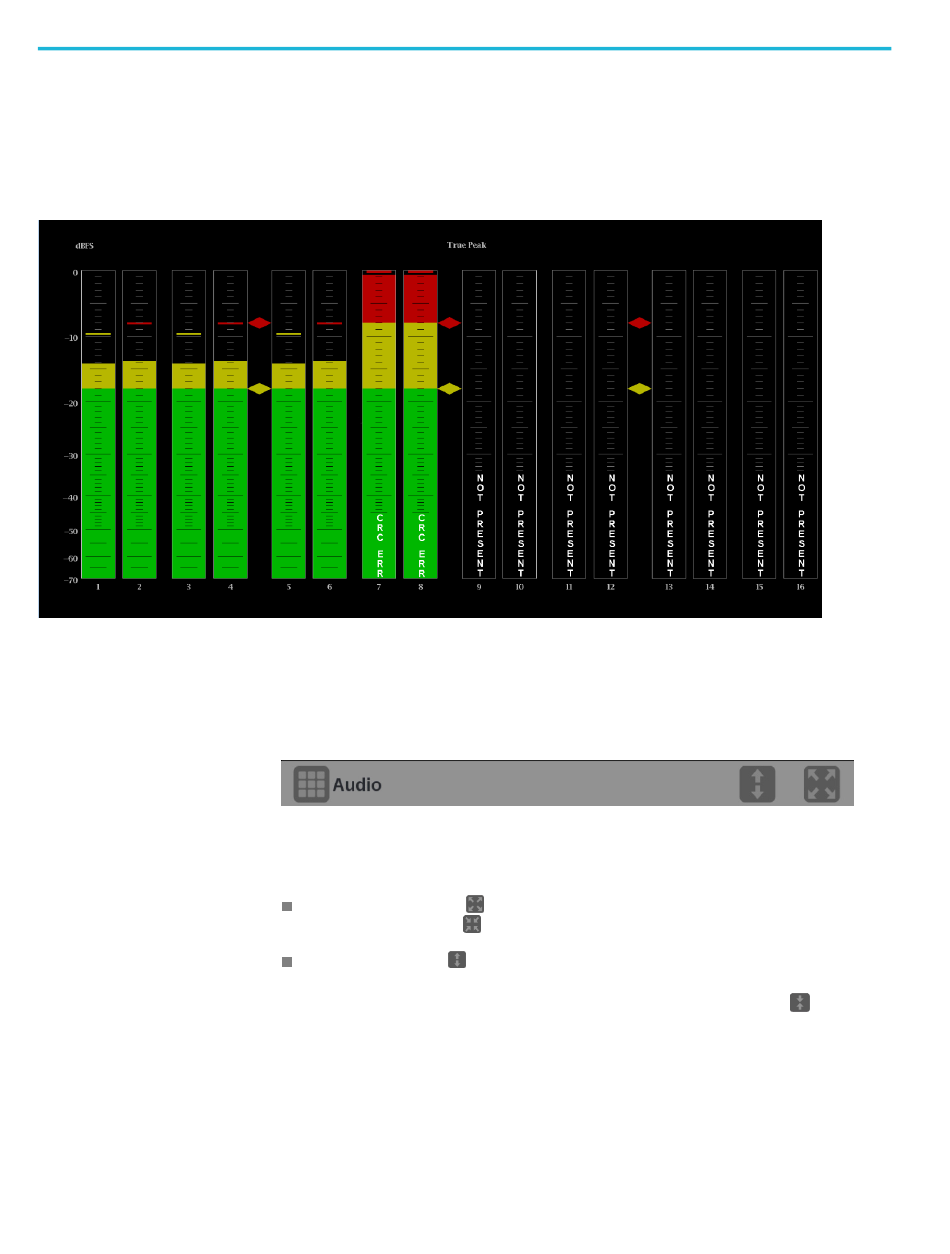

Figure 119: Audio application display
Audio application banner
140
The Audio application provides a level meters display using True Peak ballistics
for monitoring audio signals. Also included are Test level and Peak program
level indicators.
The following figure shows the available options after pressing and holding
anywhere on the Audio application tile.
Figure 120: Audio application banner
The following options adjust the Audio application tile:
The maximize icon ( ) expands the Audio application tile to the full screen.
The minimize icon ( ) collapse the tile back to its original size.
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
