PA3000 Four-channel,
Multi-phase AC/DC Power Analyzer
––
HOW-TO DEMONSTRATION GUIDE

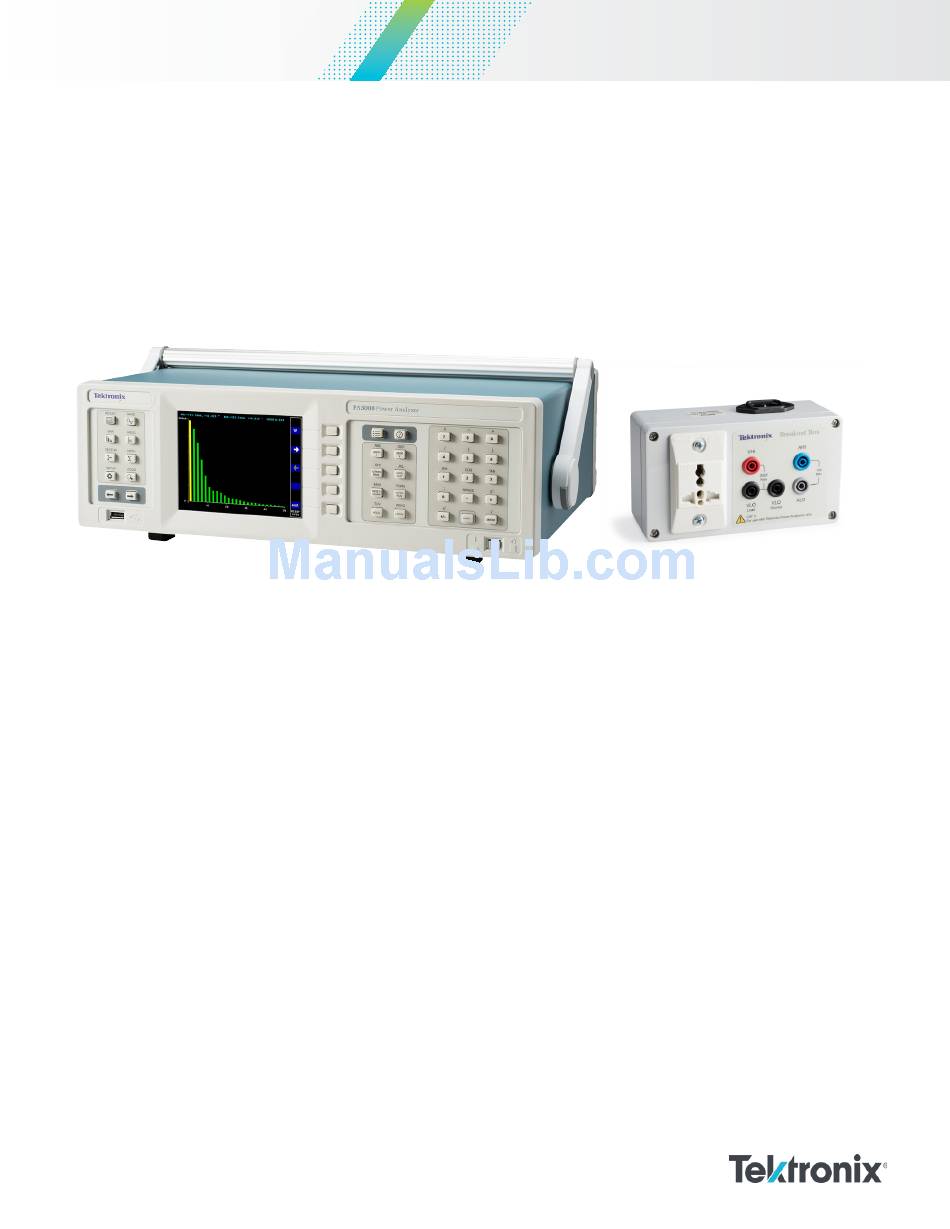

The Tektronix PA3000 is a one- to four-channel power analyzer that is optimized for testing today's single- and multi-phase,
high efficiency power conversion products and designs. Use it to quickly visualize, analyze, and document power efficiency,
energy consumption, and electrical performance to the latest regional and international standards.
Each test example in this demo guide discusses two methods of making the same measurements. The first method refers to
making the measurements directly on the PA3000 using the front panel, whereas, the second method demonstrates the use of
free PWRVIEW Software. In each test example, the second method (PWRVIEW) is the preferred method, because it is easier
and enables more user flexibility and customization options.
Tektronix recommends reviewing all of the test examples to reach the best understanding of all features offered by the PA3000
and the PWRVIEW Software.
Table of Contents
Test 1: Efficiency Testing Single Phase Applications ................................................................................................... 1
Test 2: Efficiency Testing Three Phase Applications .................................................................................................... 9
Test 3: Energy Consumption Testing ..........................................................................................................................17
Test 4: Standby Power Measurements (IEC 62301 Ed 2.0) ....................................................................................... 23
Test 5: Inrush Current Testing .................................................................................................................................................29
