Installing a canopy fixture
Mounting plate
Ground screw
Ground braid
1:
Remove the mounting plate from the fixture by removing the two
canopy screws and the ground screw. Set the ground screw safely
aside.
2:
Using the mounting plate screws, secure the mounting plate to the
installed electrical box, which is not included.
4

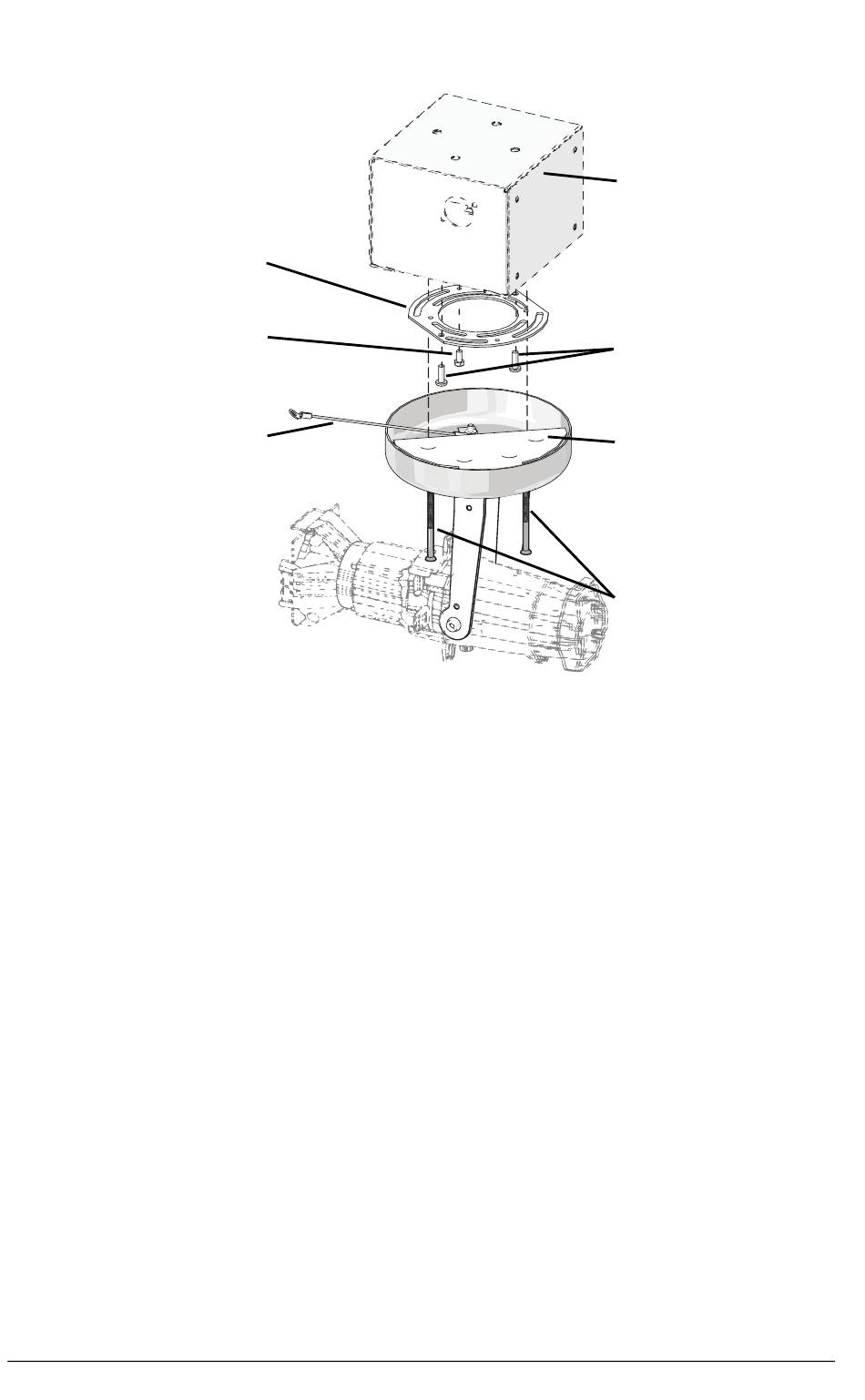

Electrical box
(not provided)
Mounting plate
screws
Canopy plate
(four indentations
allow for multiple
screw nesting
positions)
Canopy screws
Source Four Mini LED User Manual
