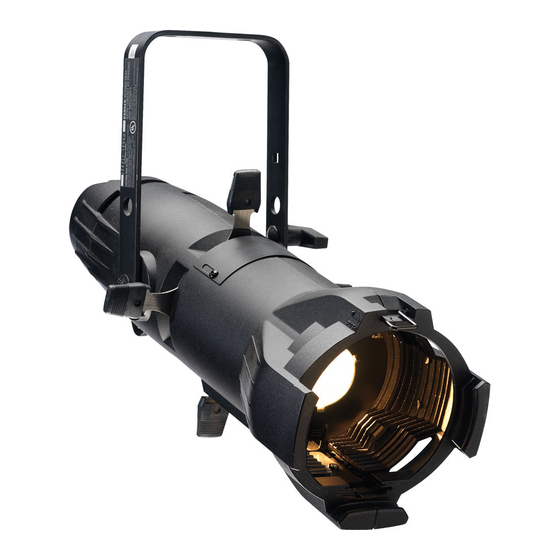

ETC Source Four jr Assembly Manual
Hide thumbs
Also See for Source Four jr:
- User manual (17 pages) ,
- Assembly manual (16 pages) ,
- Quick start manual (4 pages)
Table of Contents
Advertisement
Quick Links
Assembly Guide
Production Dates: September 2004 - Present
ATTENTION:
The part numbers listed in this guide may differ from the parts
required for your particular Source Four fixture. Part numbers for
fixtures change occasionally as parts are replaced or upgraded.
To ensure that you are ordering the proper part for your specific
fixture, please contact your ETC dealer, or ETC Customer
Service for assistance.
C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
P r o d u c t in f o r m a t i on a n d s p e c i f i c a t i o n s s u bj e c t t o c h a n g e .
P a r t N u m b e r : 7062M2500-06.01 R e v A
A l l R i g h t s r e s e r v e d .
R e l e a s e d : A u g u s t 2 0 0 7
Advertisement
Table of Contents
Related Manuals for ETC Source Four jr
Summary of Contents for ETC Source Four jr
- Page 1 To ensure that you are ordering the proper part for your specific fixture, please contact your ETC dealer, or ETC Customer Service for assistance. C o p y r i g h t © 2 0 0 7 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
-
Page 2: Table Of Contents
T a b l e o f C o n t e n t s Basic Fixture..........1 Assembling basic fixture . -
Page 3: Basic Fixture
Basic Fixture Figure 1 Reference Part Description Quantity Number Number Required 7062A3002 Barrel, left casting, black 7062A3002-1 Barrel, left casting, white 7062A3004 Barrel, right casting, black 7062A3004-1 Barrel, right casting, white 7062A2008 Lamp socket assembly, black (see page 7062A2008-1 Lamp socket assembly, white (see page HW8201 Knob, 10-32X.50LG male stud, black... -
Page 4: Assembling Basic Fixture
Do not immerse or soak the glass in any cleaning solution. Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface. Source Four jr/jr Zoom Assembly Guide... -
Page 5: Lamp Socket Assembly
Lamp Socket Assembly Figure 2 Reference Part Description Quantity Number Number Required 7060A3055 Housing, socket, casting, black 7060A3055-1 Housing, socket, casting, white 7060A3007 Socket, light baffle casting, raw 7060A4007 Knob, X-Y, lamp set 7060A4008-02 Knob, Z, lamp set w/female insert 7060A4011 Bushing, cup 7060A3011... -
Page 6: Assembling Lamp Socket
Secure with nut (10) and tighten securely (60 inch pounds). Step 5: Place the socket assembly (9) into the light baffle socket casting (2). Be sure it is well seated. Source Four jr/jr Zoom Assembly Guide... - Page 7 Step 6: Install the lamp retainer spring (7). The lamp retainer spring secures the socket. Insert the spring one end at a time, making sure the rectangular slot in each side of the spring seats on the corresponding tab in the casting. N o t e : If the spring does not seat correctly, coax it into place with a screwdriver or needle- nose pliers.
- Page 8 (15), then install the Z lamp knob (4). Hand tighten the knob all the way to the right. C A U T I O N : You must install Z knob as described above to ensure proper lamp focus travel. Source Four jr/jr Zoom Assembly Guide...
-
Page 9: Lens Holder Assemblies
Lens, Zoom, forward (Source Four jr. Zoom only) 7062A4009 Lens, Zoom, back, black (Source Four jr. Zoom only) 7062A3027 Lens cover, Zoom, front, 25º-50º (Source Four jr. Zoom only) 7062A3026 Lens cover, Zoom, rear, 25º-50º (Source Four jr. Zoom only) 7062A3029 Plate, secondary aperture (Source Four jr. -
Page 10: Assembling Fixed Field Angle Lens
Do not immerse or soak the glass in any cleaning solution. Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface. Source Four jr/jr Zoom Assembly Guide... -
Page 11: Shutter Assembly
Shutter Assembly Shutter Assembly: The bottom divider plate (4) has four dimples punched into the surface; the divider plate (2) has none. The middle divider plate (3) has a slightly smaller diameter hole than the other two. Figure 9 Reference Part Description Quantity... - Page 12 Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325 Service: (Americas) service@etcconnect.com (UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2007 ETC. All Rights Reserved. Product information and specifications subject to change. 7062M2500-06.01 Rev A Released 08/2007...
