Projecting a pattern

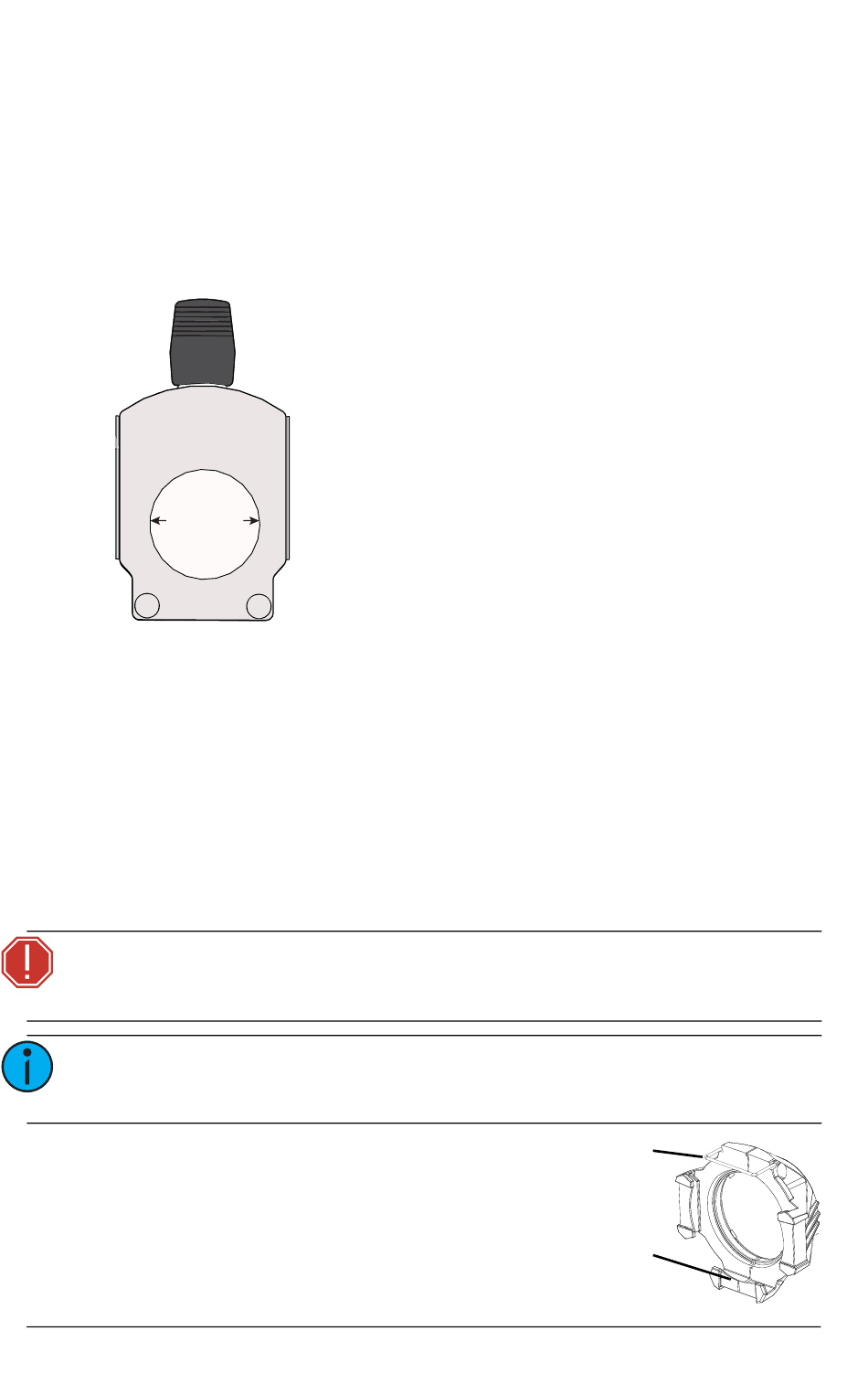

The Source Four Mini LED has a pattern holder slot on the top side of the
shutter barrel, in front of the shutter. It accommodates an E-size (37.5 mm
with a 25.4 mm image area) pattern holder.
Use an optional donut in the color frame holder to enhance pattern projection.
When the slot is not in use, a small sheet metal cover secured with a Phillips
screw prevents light leakage.
Diameter

Using the color frame holder

The Source Four Mini LED comes equipped with a 2¾" or 70 mm color frame,
which is a metal frame used to hold color media (often referred to as gel) in
front of the lens. The color frame holder is equipped with a retaining clip that
prevents the color frame from falling out.
Additional accessories are available that also fit into the color frame holder.
Those accessories are top hat, short top hat, half hat, short half hat, and
donut. When you use an accessory, install the color frame in the rear slot of
the holder.
WARNING:
Note: The color frame should be inserted with the open side
1: Release the retaining clip by gently
pushing it up.
2: Insert the color frame.
3: Lock the retaining clip by gently
pushing it down.
10
1"
Make sure the color frame is locked in position with the
retaining clip.
down.
1: Use a Phillips screwdriver to loosen the
screw on the slot cover. Do not remove the
screw.
2: Slide the cover completely forward to
expose the slot.
3: Insert the pattern holder.
4: Slide the slot cover back toward the shutters
until it meets the pattern handle. Leave
enough space to move the handle.
5: Secure the slot cover by tightening the
screw.
Retaining clip
Color frame
holder
