ETC Source Four XT HID Zoom Grid Louver Installation Instructions

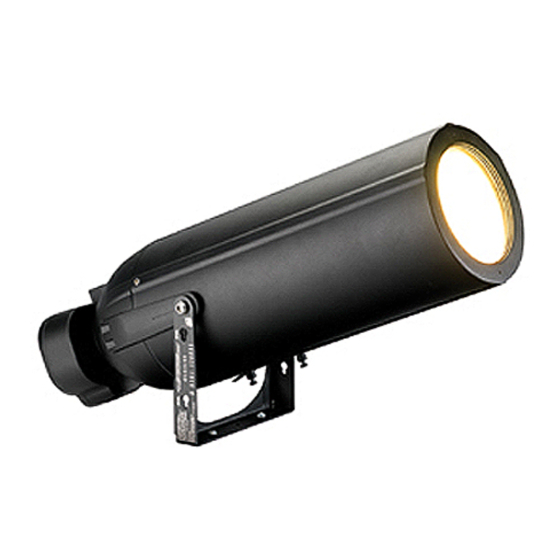

Source Four XT HID Zoom Grid Louver
Installation Instructions
The Source Four XT HID Zoom Grid Louver provides visual cut-off and glare reduction from any angle, while minimizing
light loss. The Grid Louver installs securely inside the fixture, keeping the louver clean and debris-free throughout the life
of the installation.
WARNING: WARNING:
● Do not use the fixture with a damaged power lead. If the power lead (cordset) is ● Do not use this fixture with a damaged power lead. If the power lead (cordset)
damaged, it must be replaced. is damaged, it must be replaced.
● Do not expose the interior of the fixture to moisture. Do not stand in water while ● Do not expose the interior of the fixture to moisture. Do not stand in water
installing or servicing the fixture. while installing or servicing the fixture.
Failure to follow these warnings can result in serious injury or death. Failure to follow these warnings can result in serious injury or death.
Installation
WARNING:
● Do not use the fixture if glass lens is deeply scratched or cracked. Damaged lenses
must be replaced.
● Do not mount the fixture on or near combustible surfaces.
Failure to follow these warnings can result in serious injury or death.
The Grid Louver is installed inside the fixture on the front ring. The barrel must be removed to install the grid.
Reference Source Four XT HID Installation Instructions for information about electrical requirements and installing the
fixture. The instructions are available for download at www.etcconnect.com.
To remove the barrel:
Step 1: Loosen the three 4mm hex screws around the barrel.
There is a nylon retaining washer on each screw to prevent it from slipping out of the ballast housing.
Step 2: Slide the barrel off the fixture.
Step 3: Hang the barrel on the yoke or set it safely aside.
4mm hex
screw (3)
Corporate Headquarters 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA Tel +608 831 4116 Fax +608 836 1736
London, UK Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK Tel +44 (0)20 8896 1000 Fax +44 (0)20 8896 2000
Rome, IT Via Pieve Torina, 48, 00156 Rome, Italy Tel +39 (06) 32 111 683 Fax +44 (0) 20 8752 8486
Holzkirchen, DE Ohmstrasse 3, 83607 Holzkirchen, Germany Tel +49 (80 24) 47 00-0 Fax +49 (80 24) 47 00-3 00
Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325
Service: (Americas)
service@etcconnect.com
Web: www.etcconnect.com
Copyright © 2013 ETC. All Rights Reserved. Product information and specifications subject to change.
7065M2160 Rev B Released 2013-05
Barrel
(UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com
Page 1 of 2
Remove or install barrel
(Asia) service@etcasia.com
ETC intends this document to be provided in its entirety.
