Summary of Contents for ETC Source Four Mini CE
- Page 1 CE User Manual Revision B Copyright © 2013 Electronic Theatre Controls, Inc. All Rights reserved. Product i nformation and specifications subj ect to change. Part Number: 7063M1210 Rev B Released: 2013-07...
-
Page 2: Table Of Contents
Th ea tr e Co nt r ol s, I n c. i n t he Un it ed St a te s an d ot h er cou nt r ie s. ETC per mi t s th e r ep r odu ct io n o f ma te r ia ls i n t hi s man ual on ly f or no n- co mmer ci al pu r pos es. -
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY We, Electronic Theatre Controls Limited declare under sole responsibility that the product: Product name: Source Four Mini luminaire Product type/model: Source Four Mini Canopy mount, Source Four Mini Track mount & Source Four Mini Clamp mount. Versions fitted with tungsten lamp. Item numbers: One sample of each type to which this declaration relates is in conformity with the following Standards:... -
Page 4: Source Four Mini Ce Guidelines
Read the entire User Manual before using the equipment. WARNING: Please note the following safety precautions: • Do not mount the Source Four Mini CE on or near a flammable surface. • The Source Four Mini CE is suitable for indoor use only with a maximum ambient temperature: 40°C. -
Page 5: Introduction

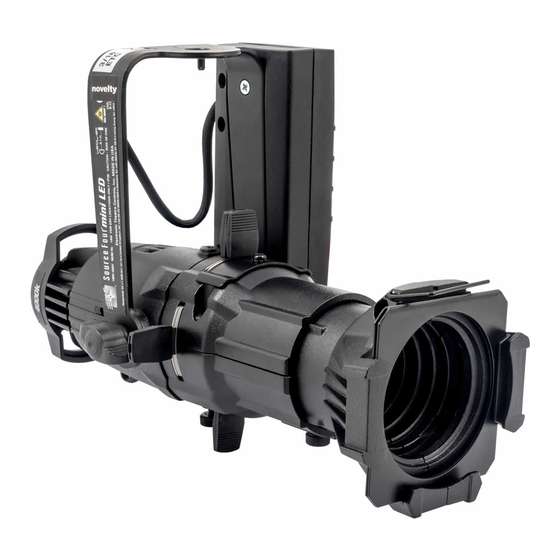

I n t r o d u c t i o n The Source Four Mini has four field-angle choices and comes in a portable version with a yoke mounted transformer, a canopy-mount design with an integral transformer, and a track-mount design with an integral transformer. Surprisingly bright for its size, the Mini offers crystal-clear image projection and a bright, even field. -
Page 6: Basic Assembly
B a s i c A s s e m b l y Yoke Lamp housing Gobo Pattern Holder Slot Lamp housing Shutter Barrel Lens tube knob Colour frame retainer clip Colour frame Beam focus Shutters x4 knob INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS IMPORTANT SAFETY INSTRUCTIONS Lighted lamp is HOT! -
Page 7: Install Lens Tube
I n s t a l l L e n s Tub e A lens tube must be installed prior to use of the Source Four Mini. There are four lens tubes available; 19°, 26°, 36°, and 50°. Beam focus knob Step 1: Unscrew the beam focus knob from the loose lens tube. -
Page 8: Locking The Rotation In The Canopy And Track-Mount Variations
L o c k i n g th e r o t a ti o n i n t h e c a n o p y a n d t r a c k - m o u n t v a r i a t i o n s Yoke lock Step 1: Rotate the luminaire into the desired position. -
Page 9: Gobo Pattern Projection
G o b o P at t e r n P r o j ec ti o n The Source Four Mini has a gobo holder slot on the top side of the shutter barrel, in front of the shutter. It accommodates a E-size (37.5mm with a 25.4mm image area) gobo pattern holder. -
Page 10: Replacing The Lamp
R e p l a c i n g t h e L a m p Lamp housing Lamp housing knob Step 1: Disconnect power to the Source Four Mini before installing the lamp. Step 2: Loosen the brass lamp housing knob on the back of the lamp housing. The knob is not captured so it may come loose from the luminaire. -
Page 11: Cleaning The Glass Lens
C l e a n i n g t h e G l a s s L e n s WARNING: Do not use ammonia-based or other harsh commercial cleaners. Clean lens only as directed. Commercially available glass cleaning agents should be avoided as they may contain ammonia, other harsh chemical detergents, or abrasive agents. - Page 12 Web: www.etcconnect.com Copyright © 2013 ETC. All Rights Reserved. Product information and specifications subject to change. 7063M1210 Rev B Released 2013-07 ETC intends this document to be provided in its entirety.
