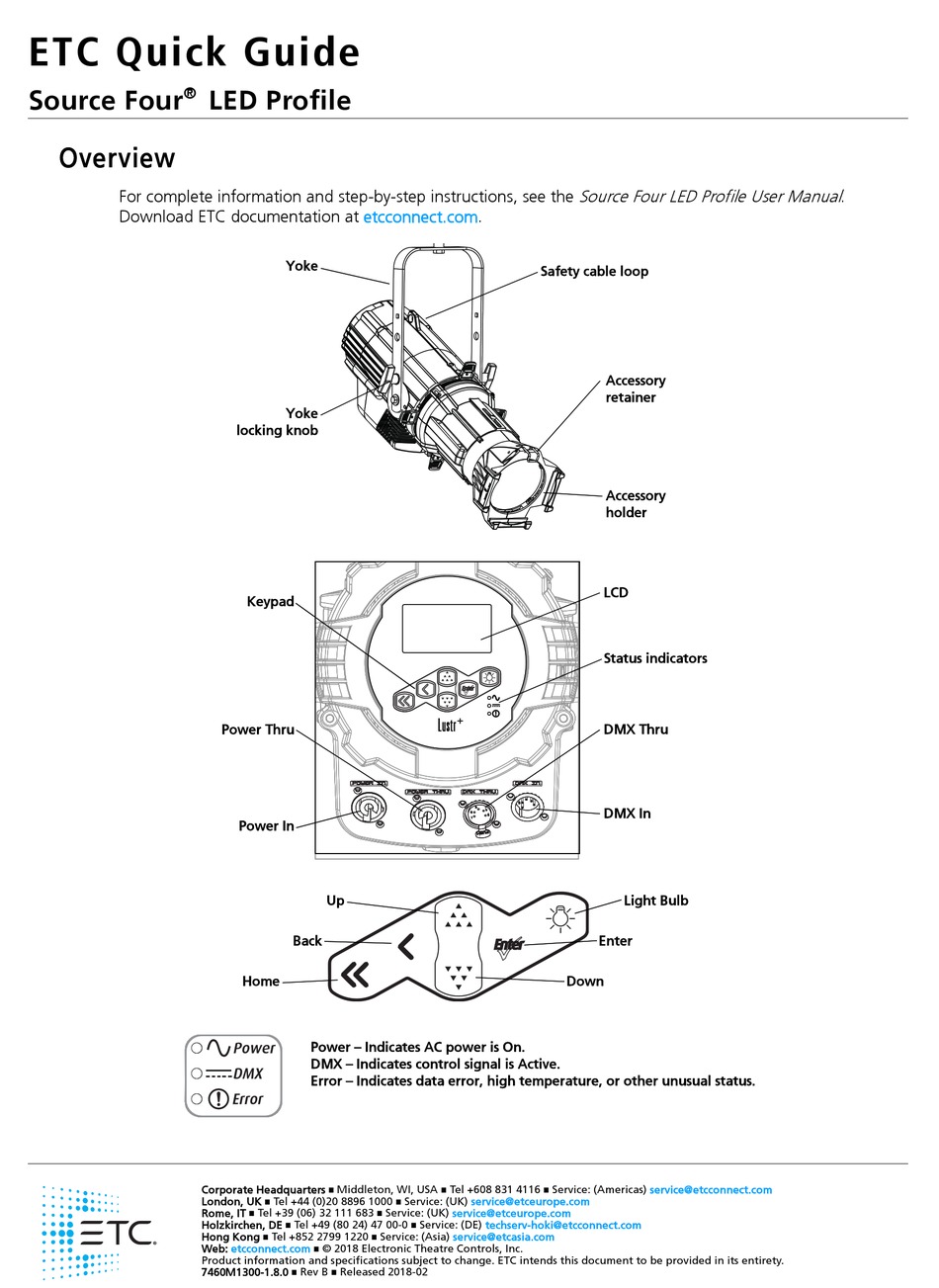

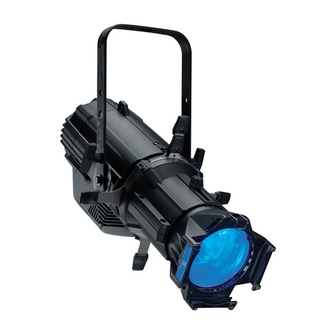

ETC Quick Guide
®
Source Four
Overview
For complete information and step-by-step instructions, see the
Download ETC documentation at etcconnect.com.
Corporate Headquarters
London, UK
Rome, IT
Holzkirchen, DE
Hong Kong
Web:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7460M1300-1.8.0
LED Profile
Yoke
Yoke
locking knob
Keypad
Power Thru
Power In
Up
Back
Home
Power – Indicates AC power is On.
DMX – Indicates control signal is Active.
Error – Indicates data error, high temperature, or other unusual status.
Middleton, WI, USA
Tel +44 (0)20 8896 1000
Tel +39 (06) 32 111 683
Service: (UK)
Tel +49 (80 24) 47 00-0
Tel +852 2799 1220
Service: (Asia)
etcconnect.com
© 2018 Electronic Theatre Controls, Inc.
Rev B
Released 2018-02
Safety cable loop
Down
Tel +608 831 4116
Service: (Americas)
Service: (UK)
service@etceurope.com
service@etceurope.com
Service: (DE)
techserv-hoki@etcconnect.com
service@etcasia.com
Source Four LED Profile User Manual
Accessory
retainer
Accessory
holder
LCD
Status indicators
DMX Thru
DMX In
Light Bulb
Enter
service@etcconnect.com
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Source Four and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETC Source Four

Summary of Contents for ETC Source Four

  • Page 1 Tel +852 2799 1220 Service: (Asia) service@etcasia.com   Web: etcconnect.com © 2018 Electronic Theatre Controls, Inc.  Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7460M1300-1.8.0 Rev B Released 2018-02  ...

  • Page 2: Install Fixture

    General use position Hang or mount the fixture. Attach a safety cable. Insert additional accessories such as a top hat, etc. WARNING: • Use only hardware rated for total weight of fixture and accessories. • A safety cable (or other approved safety...

  • Page 3: Soft Focus Diffuser

    ETC Quick Guide Source Four LED Profile ® used with R20 Relay Module or Unison Echo Relay Panel (consult breaker-trip curves when used with other equipment) • Up to 32 device loads on the DMX daisy-chain Connect the power cable to AC power.

  • Page 4: Quick Setup

    ] to return to the home screen. The top line of the home screen displays the name of the active setup. Source Four LED Profile Individual features and settings are adjustable under the Advanced menu. See the User Manual for more information on advanced features of Source Four LED fixtures. Quick Description Profile Features Setup •...

  • Page 5: Studio Quick Setup

    ETC Quick Guide Source Four LED Profile Quick Description Profile Features Setup • For concerts and high impact lighting • Quick dimming response High • Enables quickest response, simple RGB • Boosted output for maximum intensity Impact control and strobe channel for maximum •...
  • Page 6 ETC Quick Guide Source Four LED Profile Channel Assignments Notes Profile Channels 1 - Hue (coarse) High resolution hue (two channels), saturation, 2 - Hue (fine) and intensity control. 3 - Saturation 4 - Intensity HSI mode will produce color crossfades around 5 - Strobe the color space.

  • Page 7: Tungsten And Daylight

    ETC Quick Guide Source Four LED Profile Channel Assignments in Direct Mode Channel Series 1 Series 1 Series 2 Series 2 Series 2 Number Studio HD Lustr+ Lustr Daylight HD Tungsten HD Red Orange White Lime (not used) Red Orange...

  • Page 8: Typical Power Consumption

    ETC Quick Guide Source Four LED Profile Typical Power Consumption Lustr+ 120V 240V Idle Power / Current 4.27W / 0.084A 4.38W / 0.079A 4.2W / 0.068A 100% Boost Power / Current 130.8W / 1.48A 129.9W / 1.11A 126.4W / 0.576A...
