Adjustments

Adjusting the yoke position

The Source Four Mini LED provides multi-positioning capabilities within its
yoke for overall fixture angle.

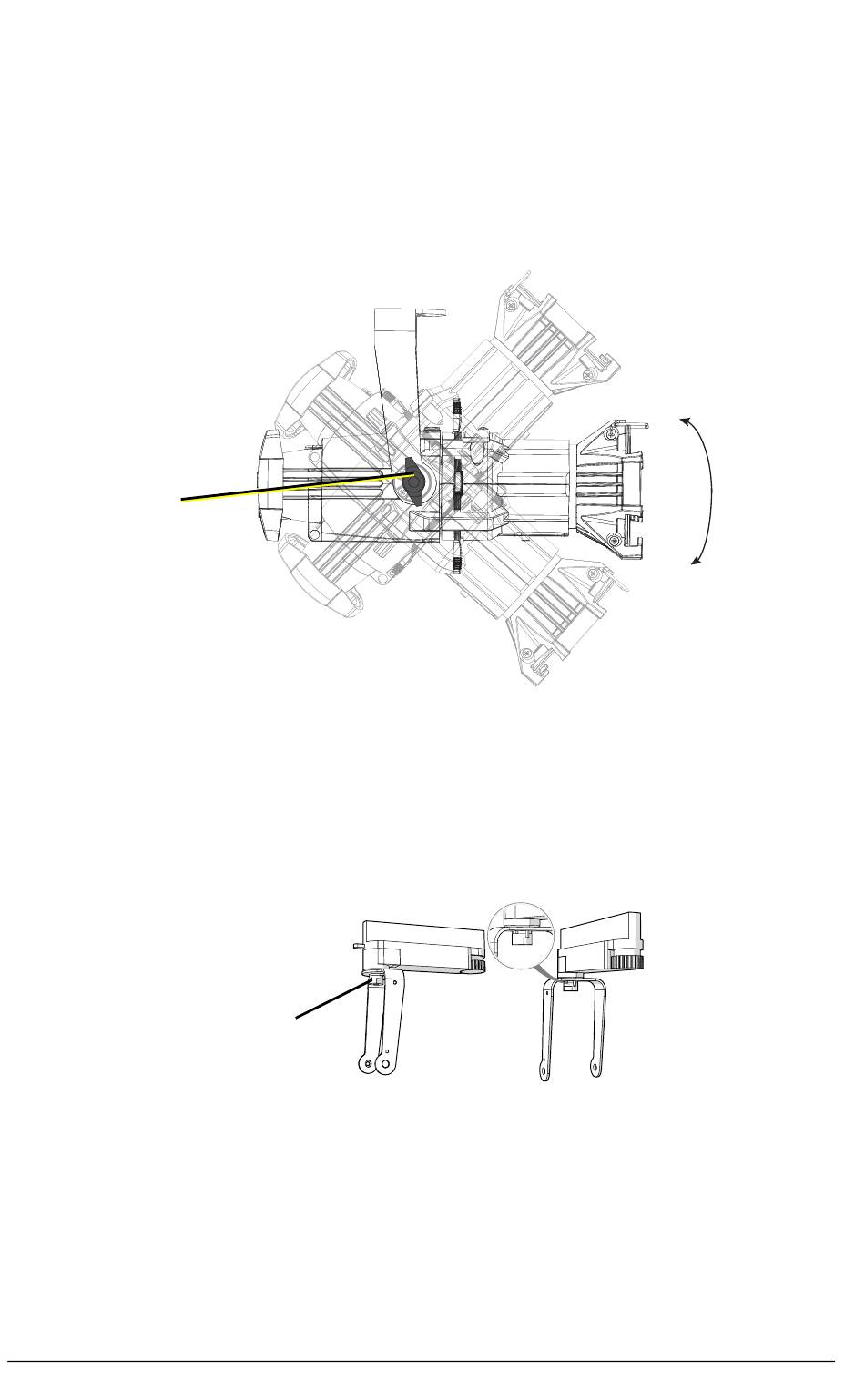

Setting the angle with the yoke

Yoke locking
knob
1: Loosen the yoke locking knob. Do not remove the knob.
2: Tilt the fixture to the desired position.
3: Tighten the yoke locking knob.
Locking the rotation on the canopy and track
fixtures
1: Rotate the fixture to the desired position. To protect the wiring, the
fixture cannot rotate completely around.
2: Insert a 1.5 mm Allen wrench into the small hole on the yoke lock.
3: Turn wrench to tighten the yoke lock.
8
Yoke lock
