Installing a lens tube

A lens tube must be installed prior to use of the Source Four Mini LED. There
are four lens tube sizes available: 19°, 26°, 36°, and 50°.

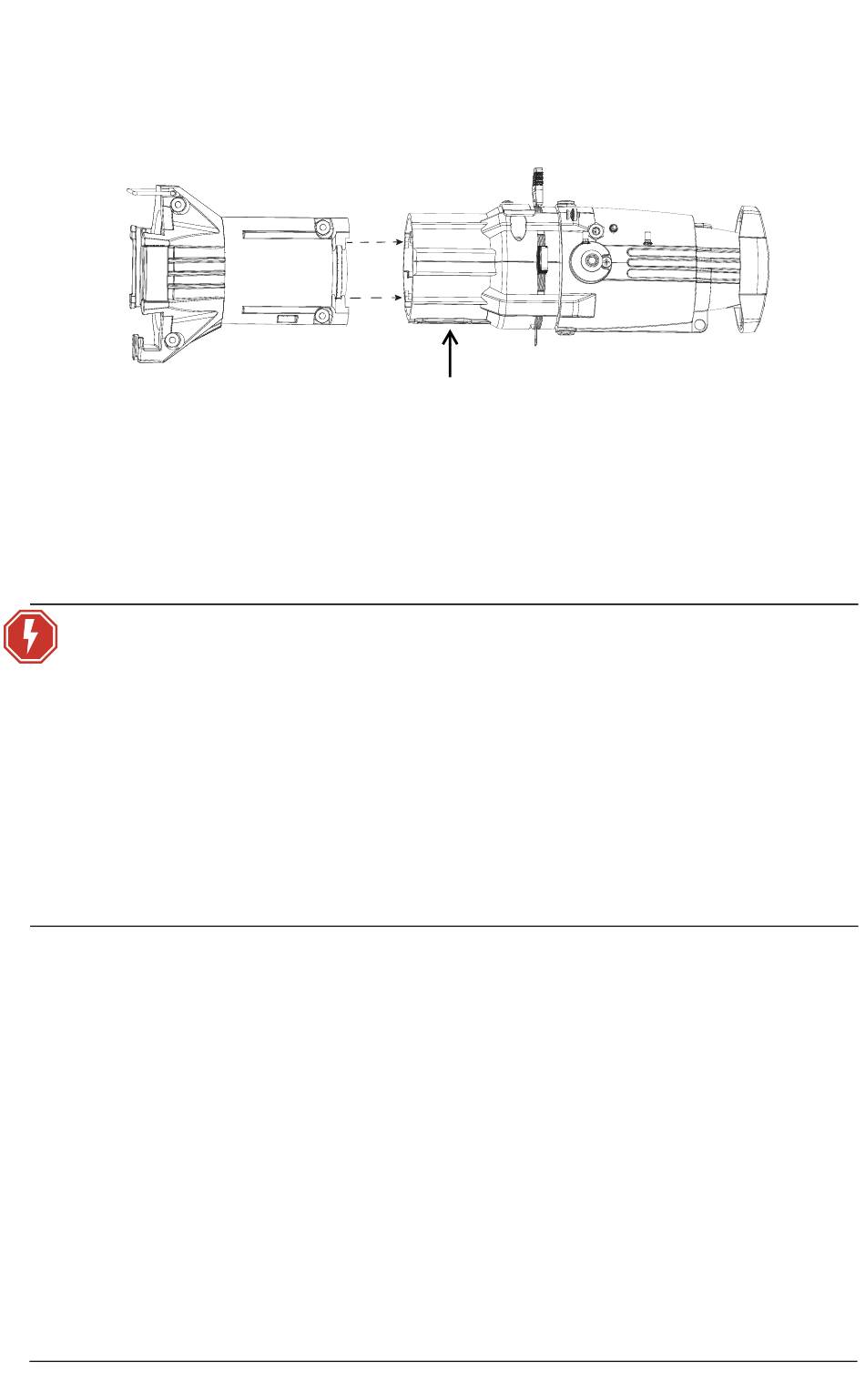

1: Unscrew the beam focus knob from the loose lens tube.
2: Slide the lens tube into the shutter barrel.
3: Install the beam focus knob.

Installing a canopy or track fixture

WARNING:
Source Four Mini LED User Manual
Beam focus knob
• TURN OFF POWER at main fuse or breaker box and
verify that the power is off before proceeding with
installation.
• Wiring must meet local and national codes.
• Do not mount the fixture on or near combustible
surfaces.
• Do not operate the fixture without a lens installed.
• Always hang the fixture with the retaining clip on the
color frame holder in the locked position.
