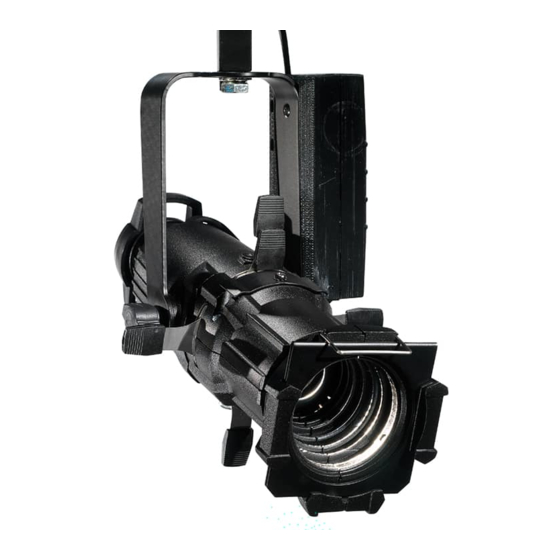

ETC Source Four Mini User Manual
Low voltage
Hide thumbs
Also See for Source Four Mini:
- User manual (20 pages) ,
- Installation manual (4 pages) ,
- User manual (12 pages)
Related Manuals for ETC Source Four Mini
Summary of Contents for ETC Source Four Mini

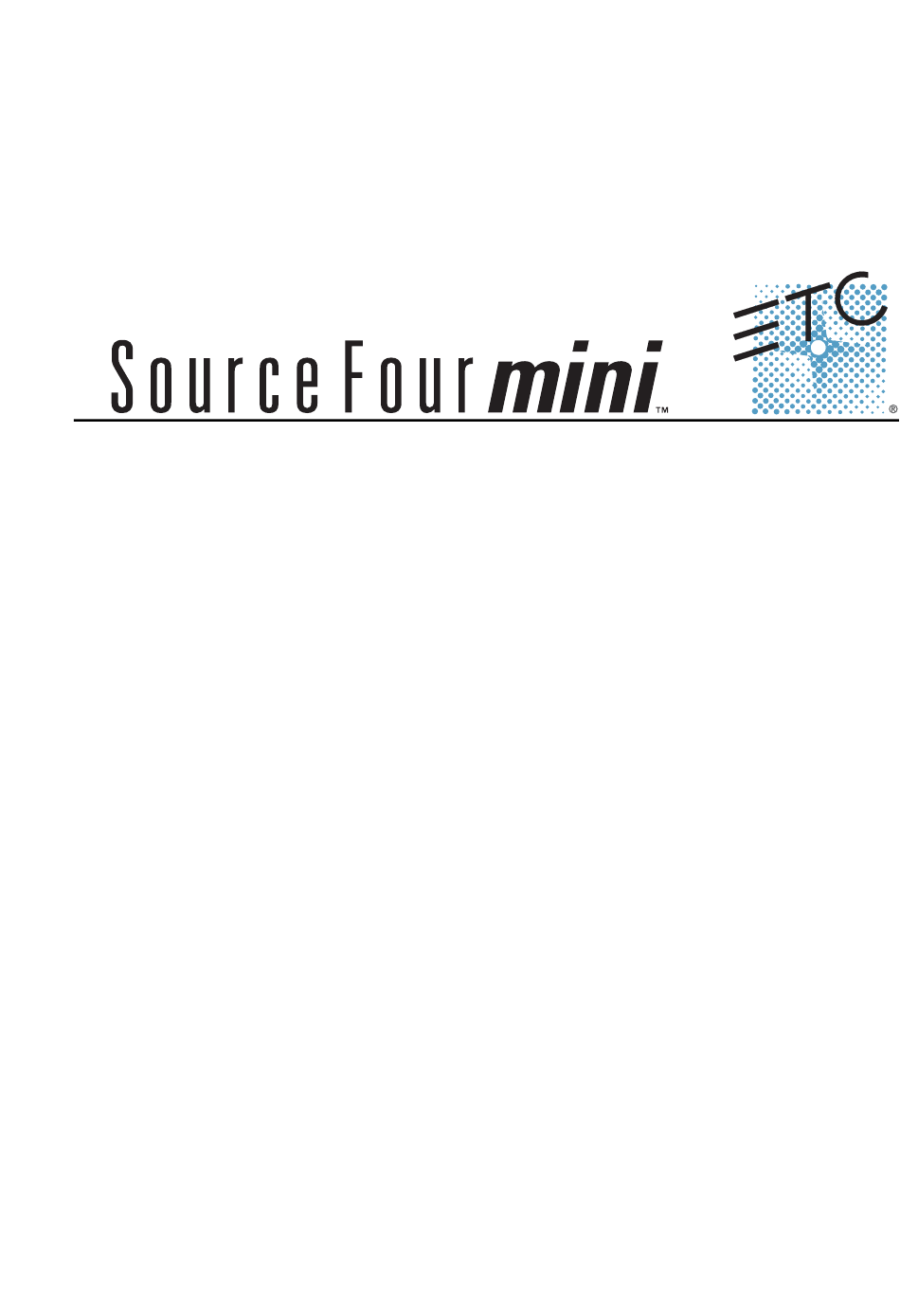

- Page 1 Low Voltage User Manual Revision A Copyright © 2014 Electronic Theatre Controls, Inc. All Rights reserved. Product i nformation and specifications subject to change. Part Number: 7063M1240 Rev A Released: 2014-02...
-
Page 3: Table Of Contents
Ta b l e o f C o n t e n t s Introduction ........1 Basic Assembly . -
Page 4: Introduction
A selection of field installed lens tubes are available (sold separately), providing 19°, 26°, 36°, and 50° field-angles. The Source Four Mini Low Voltage can be field outfitted for using either a canopy mounting kit or a miniature c-clamp, both sold separately. -
Page 5: Basic Assembly
B a s i c A s s e m b l y Yoke Lamp housing Pattern Holder Slot Lamp housing knob Shutter Barrel Lens tube (sold separately) Safety attachment Color frame point retainer clip Shutters x4 Color frame Beam focus knob INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS... -
Page 6: Install Lens Tube
I n s t a l l L e n s Tub e A lens tube (sold separately) must be installed prior to use of the Source Four Mini Low Voltage luminaire. There are four lens tube sizes available; 19°, 26°, 36°, and 50°... -
Page 7: Adjustments
A d j u s t m e n t s Adjusting the yoke position The Source Four Mini Low Voltage luminaire provides multi-positioning capabilities within its yoke for overall luminaire angle. S e t t i n g t h e a n g l e w i t h t h e y o k e... -
Page 8: Shaping The Beam
C o l o r F r a m e H o l d e r Source Four Mini lens tubes ship with a 2 ¾” or 70mm color frame, which is a metal frame used to hold color media (often referred to as gel) in front of the lens. The color frame holder is equipped with a retaining clip that prevents the color frame from falling out during use. -
Page 9: Using A C-Clamp
When an accessory is used, the color frame should be installed in the rear slot of the holder. Using a C-clamp A miniature c-clamp is available (sold separately) for use with the Source Four Mini Low Voltage luminaire. Pipe bolt... -
Page 10: Replacing The Lamp
Lamp housing knob Step 1: Disconnect power to the Source Four Mini before installing the lamp. Step 2: Loosen the brass lamp housing knob on the back of the lamp housing. The knob is not captured so it may come loose from the luminaire. -
Page 11: Cleaning The Glass Lens
C l e a n i n g t h e G l a s s L e n s W A R N I N G : Do not use ammonia-based or other harsh commercial cleaners. Clean lens only as directed. Commercially available glass cleaning agents should be avoided as they may contain ammonia, other harsh chemical detergents, or abrasive agents. - Page 12 Web: www.etcconnect.com Copyright © 2014 ETC. All Rights Reserved. Product information and specifications subject to change. 7063M1240 Rev A Released 2014-02 ETC intends this document to be provided in its entirety.
