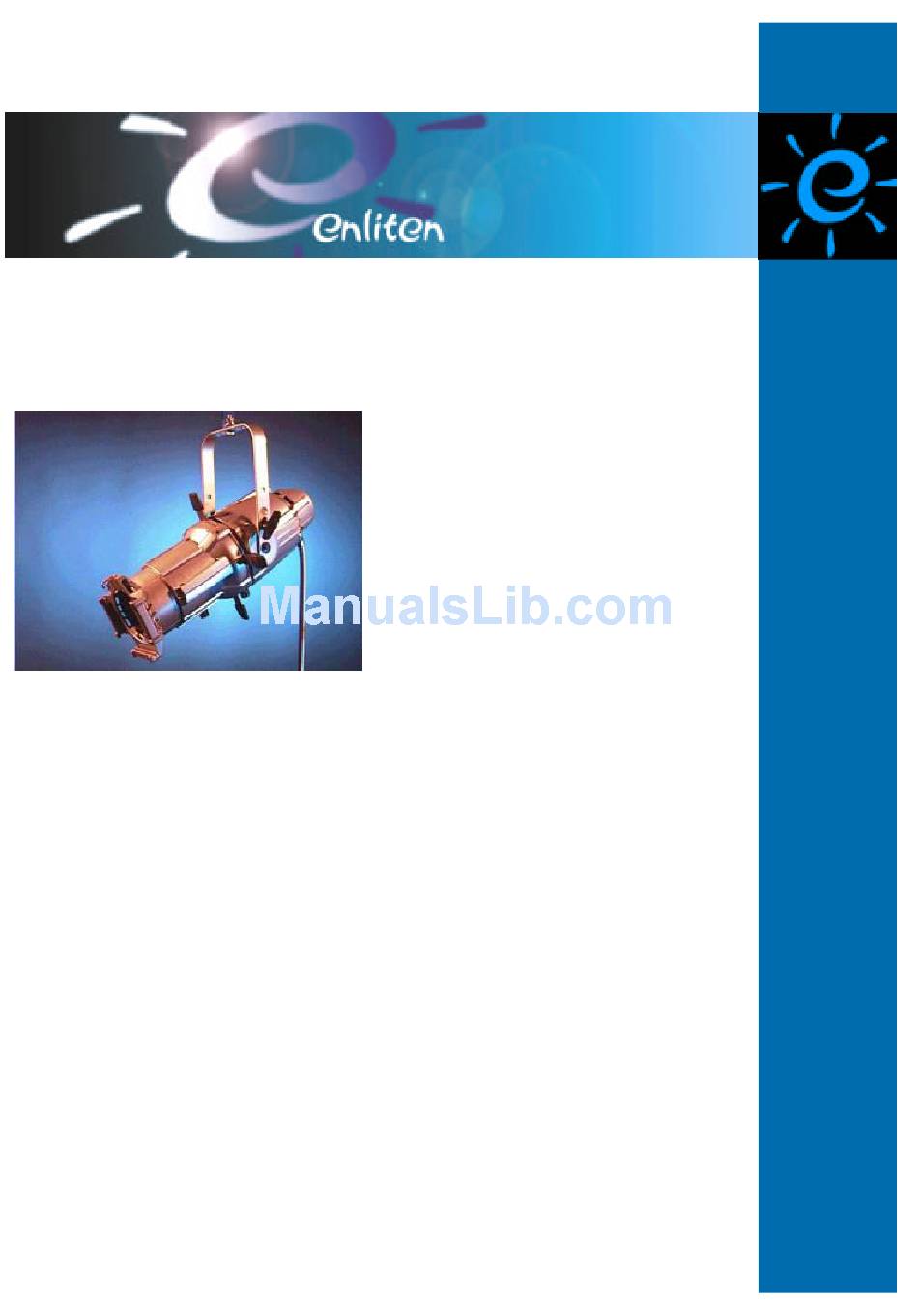

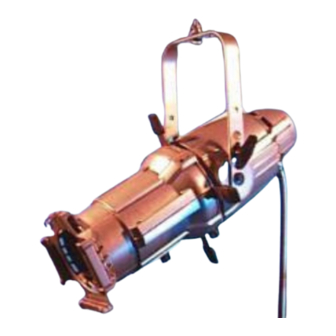

  • Page 1 USER’S GUIDE Source Four CDM Gobo projector with remote magnetic control gear CONTENTS Before you start Mounting & connecting the remote control gear 3 Installing the lamp Focussing the luminaire Using colour filter Lamp Replacement Routine maintenance Source Four CDM diagram...

  • Page 2: Before You Start

    B e f o r e y o u s t a r t This package contains a Source Four CDM profile spotlight with remote (2m)magnetic control gear. Ensure that you have the correct fixture (5°, 10°, 19°, 26°, 36°, 50°) – this will be indicated on the carton.
  • Page 3 You may now connect the luminaire to the control gear package The installation and connection of a Source Four CDM system to a mains supply should be carried out by a competent electrician and all work should be carried out to local regulatory standards.

  • Page 4: Installing The Lamp

    I n s t a l l i n g t h e l a m p Ensure that the power is isolated. Using the hex key provided, release the lampholder assembly and remove. Without touching the glass envelope, push the lamp fully into the lampsocket ensuring that the retaining clips lock into place.

  • Page 5: Lamp Replacement

    30s of power-on. WARNING: The Source Four CDM is rated to IP20 and therefore should only be used in an internal dry environment. Routine maintenance procedures and intervals should be assessed on an individual basis based on the location, usage and potential risks.

  • Page 6: Source Four Cdm Diagram

    S o u r c e F o u r C D M D i a g r a m Page 6...

  • Page 7: Warranty

    W a r r a n t y Enliten warrants that the luminaire shall be free from manufacturing defects in materials and workmanship. All luminaires are tested and inspected for damage prior to shipping. Any claim under the warranty should be made to the dealer that supplied the equipment along with a copy of the invoice and details of the problem.
  • Page 8 This page is left intentionally blank...
