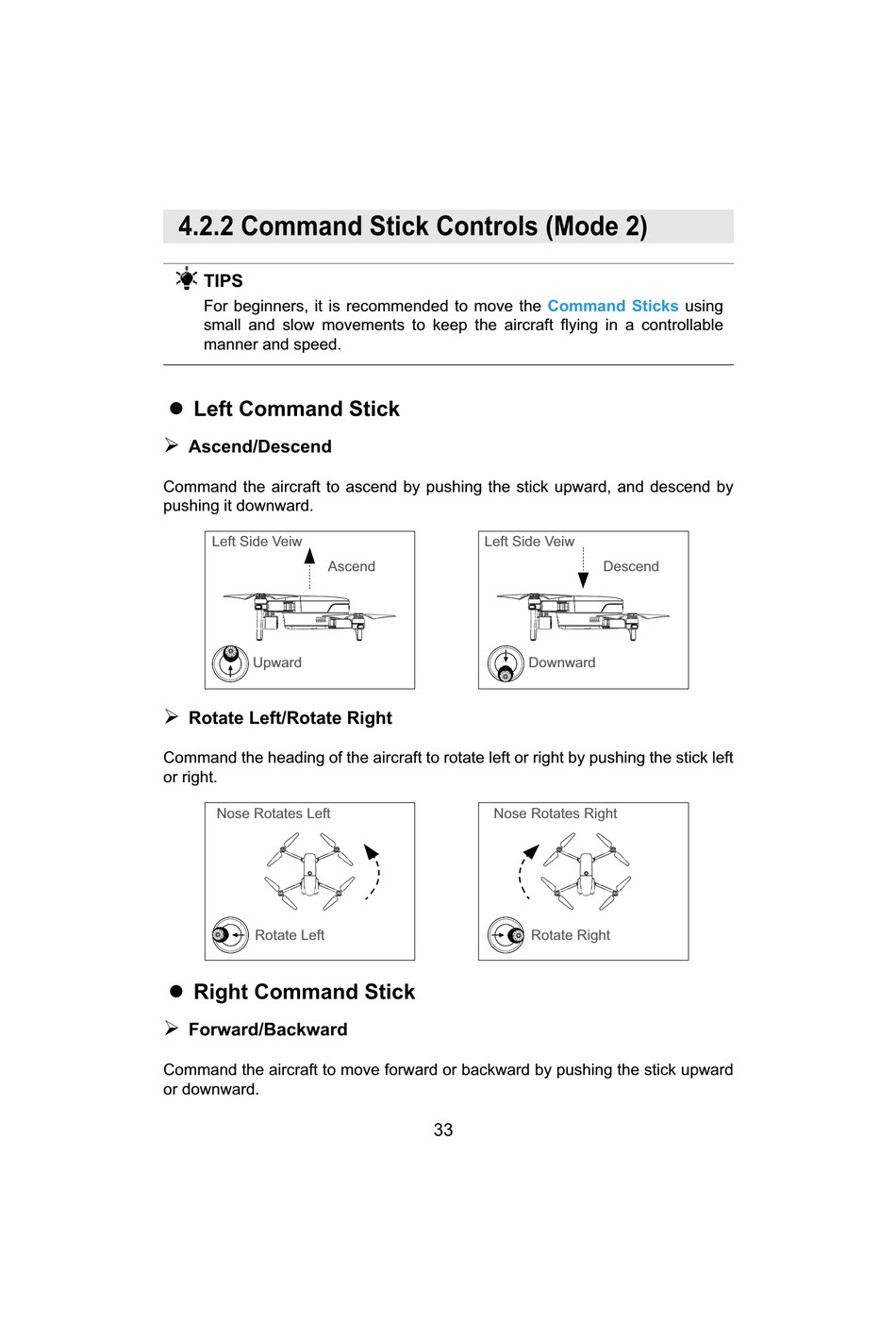

4.2.2 Command Stick Controls (Mode 2)

TIPS

For beginners, it is recommended to move the

VPDOO DQG VORZ PRYHPHQWV WR NHHS WKH DLUFUDIW À\LQJ LQ D FRQWUROODEOH

manner and speed.

z Left Command Stick

Ascend/Descend

Command the aircraft to ascend by pushing the stick upward, and descend by

pushing it downward.

Left Side Veiw

Ascend

Upward

Rotate Left/Rotate Right

Command the heading of the aircraft to rotate left or right by pushing the stick left

or right.

Nose Rotates Left

Rotate Left

z Right Command Stick

Forward/Backward

Command the aircraft to move forward or backward by pushing the stick upward

or downward.

Command Sticks

Left Side Veiw

Downward

Nose Rotates Right

Rotate Right

using

Descend
