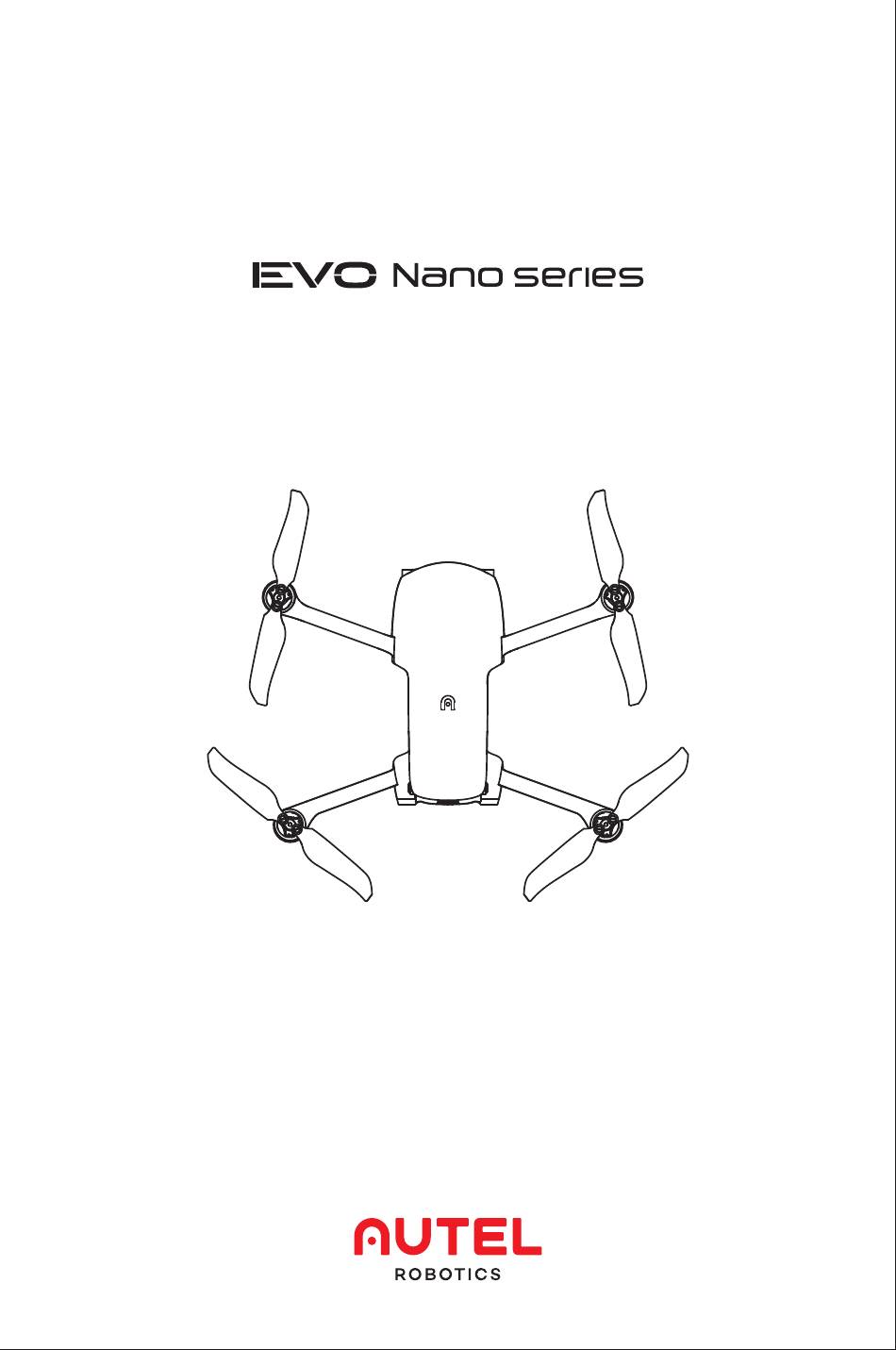

- Page 1 Quick Start Guide...
-
Page 3: Table Of Contents
Contents 1. Reading notes ........... 1 2. Aircraft ........... 1 3. Flight LED indicator ........... 2 4. Remote control ........... 4 5. Charge the aircraft & remote control ........... 5 6. Install the Autel Sky ........... 5 7. Prepare the aircraft ........... -
Page 4: Reading Notes
1. Reading notes • Please read all documentation before your first flight. • Failure to operate the aircraft responsibly could lead to injury or damages, and may void any applicable warranty coverage. 2. Aircraft Propeller Forward vision system Motor Antenna Gimbal camera Rear vision system USB-C port... -
Page 5: Flight Led Indicator
Exhaust port Ultrasonic sensor Downward vision system Air inlet 3. Flight LED indicator There is an LED indicator on the tail of the aircraft. The following table shows the meaning of indicator. - Page 6 Meaning of flight indicator status Taillight Meaning Normal status Green light flashes slowly Aircraft is in GPS state The aircraft and the remote Green light flashes quickly controller are pairing Compass calibration Yellow light is always on Starting compass calibration Yellow light is always on Calibration failed Green light is always on...
-
Page 7: Remote Control
4. Remote control Power button Home button Pause button Joystick Battery indicator Mobile device stand Charging interface Antenna Remote control adapter Gimbal pitch control dial Camera/Video button Air inlet Custom button Air outlet... -
Page 8: Charge The Aircraft & Remote Control
5. Charge the aircraft & remote control （�） Aircraft battery: Make sure the aircraft is powered off, and plug the Type-C charging cable into the charging slot on the aircraft. （�） Charging the remote control: Insert the Type-C charging cable into the Type-C port of the remote control. -
Page 9: Prepare The Aircraft
2. Launch the application on your mobile device. 3. Follow the on-screen instructions to connect the mobile device and the remote control. 7. Prepare the aircraft （1） Please always remove the gimbal protective cover before turning on the power switch of the aircraft. （2）... -
Page 10: Install The Propellers
8. Install the propeller The propeller has been installed on the aircraft by default. If you need to re-install it, please refer to the following instructions. Note that the propeller must be intact and firmly installed on the aircraft, and the propeller marked with a dot must be correctly matched to the arm. -
Page 11: Prepare The Remote Control
Warning Before installing or removing the propeller, turn off the power. Important While installing or removing the propeller, it is recommended to wear protective gloves. 9. Prepare the remote control （1） Slowly pull out the mobile device holder. （2） When the antenna plane is facing the aircraft, the signal quality of the remote control and the aircraft can reach the best condition. -
Page 12: Power Up
10. Power on （1） Hold the power button for 2 seconds to turn on the remote control. （2） Press and hold the power button for 3 seconds to turn on the aircraft. The battery indicator will then light up to show the current battery level of the aircraft. - Page 13 （�） After the motor starts, slowly push the left joystick upward (mode 2). Note: Before taking off, place the aircraft on a level surface with the back side of the aircraft facing you.
-
Page 14: Joystick Controls (Mode 2)
12. Joystick controls (Mode 2) Left stick Left view Left view Rise Descend Push down Push up Top view Top view Turn left Turn right Push left Push right Right stick Left view Left view Move forward Move back Tail Head Tail Head... - Page 16 WWW.AUTELROBOTICS.COM ©����-���� AUTEL ROBOTICS CO., LTD. ALL RIGHTS RESERVED...
