- Page 1 QUICK START GUIDE...

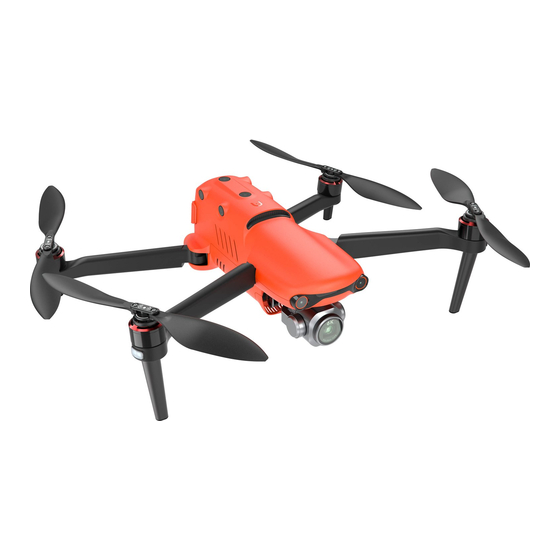

- Page 2 1. OVERVIEW The EVO II Pro V3 brings excellent flight performance, achieving a top speed of 20m/s (45mph), 40-minute flight time, and an operating distance at 15km (9.32miles, FCC). The aircraft comes with a 6.4 inch touch-screen controller, which allows users to view the live feed at up to 1080p.
- Page 3 Power Button Rear LED Indicators Rear Vision System Left Side Vision System SD Card Slot Right Side Vision System USB-C Port Aircraft Battery Pairing Button / Pairing Indicator Air Vent...
- Page 4 Upward Vision System Ultrasonic Sensor Downward Vision System Downward Vision Lighting LED...
- Page 5 3. FLIGHT LED INDICATIONS A LED indicator is located on the end of each aircraft arm. The front LEDs will light up solid red to help you identify the direction of the aircraft's nose. The rear LEDs will display the current flight status of the aircraft. The chart below shows the meaning of each status indicator.
-
Page 6: Remote Controller
4. REMOTE CONTROLLER Left Control Stick Air Outlet HDMI Port Gimbal Pitch Dial USB-A Port Record/Shutter Button Customizable Button USB-C Port Zoom Control Wheel Chest Strap Hook Micro-SD Card Slot Right Control Stick Power Button Touch Screen Pause Button Antenna Auto-takeoff/ Battery Level RTH Button... - Page 7 Speaker Hole Air Inlet Sticks Storage Slot Battery Case Tripod Mount Hole Handle 5. CHARGING Aircraft Battery: Plug the charging connector into the battery’s charge port, and connect the other end to power adapter. Plug the power adapter into a power outlet (100-240V).
-
Page 8: Preparing The Aircraft
6. AUTEL EXPLORER APP Search for ‘Autel Explorer’ from Google Play and install the app on your controller. 7. PREPARING THE AIRCRAFT Before powering on the aircraft, please remove the gimbal guard. Unfold the arms and propellers. NOTE: Power off the aircraft before folding the arms. Fold in the rear arms and propellers first, and then the front ones. - Page 9 8. PROPELLERS Because the propellers come attached to the aircraft, the following instructions apply if you need to reinstall propellers. • Attaching the Propellers Power off the aircraft. Pair the propellers and corresponding motors according to the white mark . Press each propeller down firmly and rotate in the lock direction to securely attach the propeller.
- Page 10 9.PREPARING THE CONTROLLER The sticks storage slots are located on the back of the controller. Please take out the sticks and screw them into the corresponding bases. Unfold the antennas. When the antenna and the back of the controller are at an angle of 180° or 270°, and the antenna surface is facing the aircraft, the signal quality between aircraft and controller will reach the optimal condition.
- Page 11 Press and hold the power button 3 seconds to turn on the aircraft.The current battery level will be clearly displayed. 11. TAKE OFF Start the motors by holding both command sticks for two seconds as shown below. Push the left command stick slowly upward. NOTE: •...
-
Page 12: Command Stick Controls(Mode 2)
12. COMMAND STICK CONTROLS(MODE 2) Left Command Stick Left Side View Left Side View Ascend Descend Upward Downward Top View Top View Nose Rotates Left Nose Rotates Right Move Left Move Right Right Command Stick Left Side View Left Side View Forward Backward Upward... -
Page 13: Specifications
13. SPECIFICATIONS Aircraft 902~928MHz (FCC); 2.4~2.4835GHz; Operating Frequency 5.725~5.850GHz (Non-Japan); 5.650-5.755GHz (Japan) 900MHz: FCC/ISED<=31dBm 2.4GHz: FCC/ISED<=32dBm; Transmission Power (EIRP) CE/MIC/SRRC/RCM<=20dBm 5.8GHz/5.7GHz: FCC/ISED/SRRC/MIC<=33dBm; CE/RCM<=14dBm Remote Controller 902~928MHz (FCC); 2.4~2.4835GHz; Operating Frequency 5.725~5.850GHz (Non-Japan); 5.650-5.755GHz (Japan) FCC: ≤33dBm Transmission Power (EIRP) CE: ≤20dBm@2.4G, ≤14dBm@5.8G/5.7G SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G... - Page 14 FCC and ISED Canada Compliance This device complies with part 15 of the FCC Rules and ISED Canada licence-exempt RSS standards. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 15: Rf Exposure Information
Aircraft RF Exposure Information This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be operated with minimum distance 20cm between the radiator and your body. Remote Controller FCC Specific Absorption Rate (SAR) information SAR tests are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest... - Page 16 18th Floor, Block C1, Nanshan iPark, No. 1001 Xueyuan Avenue, Nanshan District, Shenzhen, Guangdong, 518055, China 22522 29th Dr SE, Ste 101 Bothell, WA 98021 United States Toll-free: (844) MY AUTEL or (844) 692-8835 www.autelrobotics.com ©2022 Autel Robotics Co., Ltd. All Rights Reserved...
