IMPORTANT
It is recommended that you wear protective gloves when assembling or
detaching the propellers to protect you from the sharp edges.
Legends
Lock Direction: Fasten the propeller by rotating it indicated in the
picture.
Unlock Direction: Unfasten the propeller by rotating it indicated in the
picture.
Black coded propeller > Pair with > Black Motor
Orange coded propeller > Pair with > Orange Coded Motor

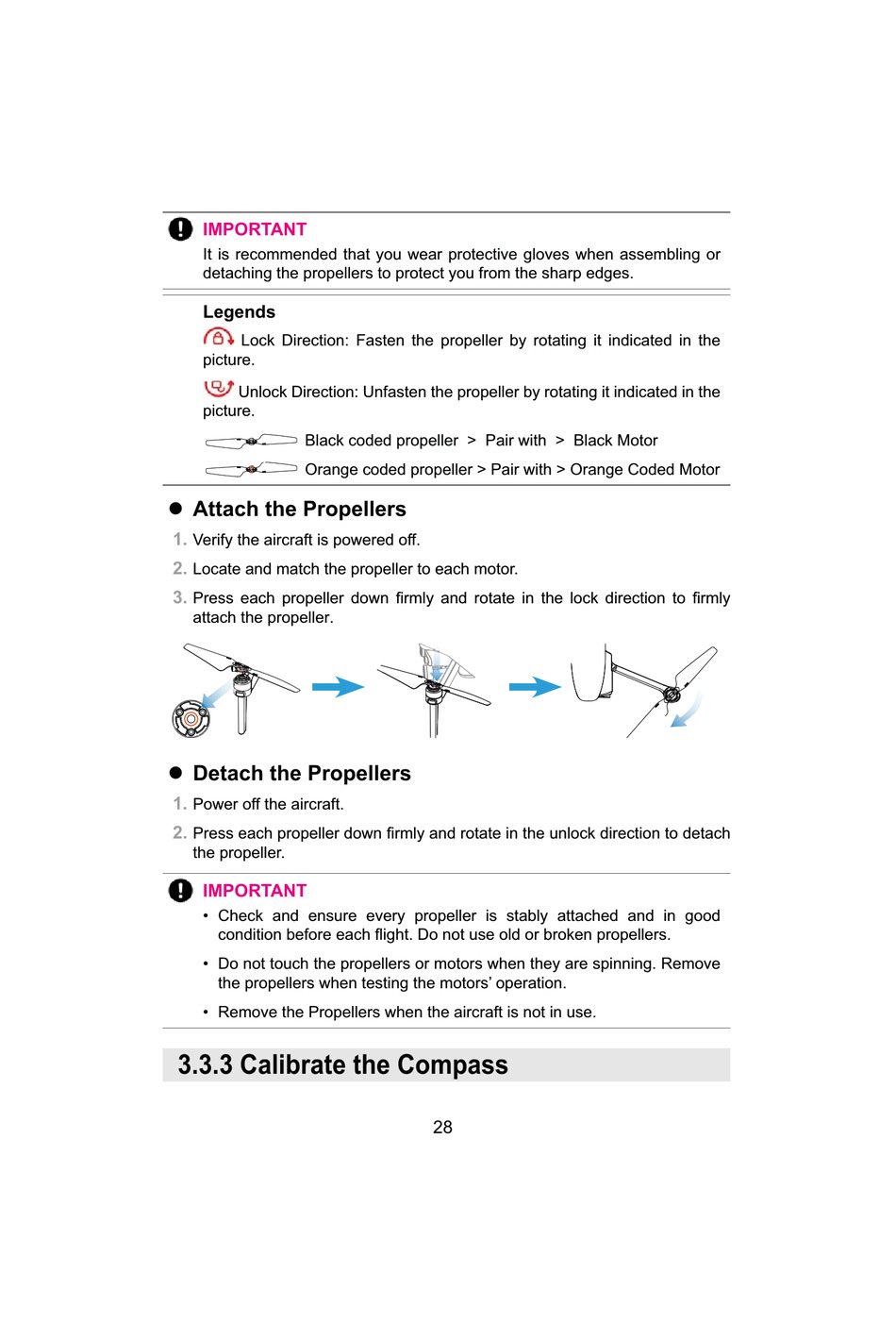

z Attach the Propellers
1.
Verify the aircraft is powered off.
2.
Locate and match the propeller to each motor.
3.
3UHVV HDFK SURSHOOHU GRZQ ¿UPO\ DQG URWDWH LQ WKH ORFN GLUHFWLRQ WR ¿UPO\
attach the propeller.
z Detach the Propellers
1.
Power off the aircraft.
2.
3UHVV HDFK SURSHOOHU GRZQ ¿UPO\ DQG URWDWH LQ WKH XQORFN GLUHFWLRQ WR GHWDFK
the propeller.
IMPORTANT
• Check and ensure every propeller is stably attached and in good
FRQGLWLRQ EHIRUH HDFK ÀLJKW 'R QRW XVH ROG RU EURNHQ SURSHOOHUV
• Do not touch the propellers or motors when they are spinning. Remove
the propellers when testing the motors' operation.
• Remove the Propellers when the aircraft is not in use.

3.3.3 Calibrate the Compass
