Autel Robotics EVO XI-5A Quick Manual

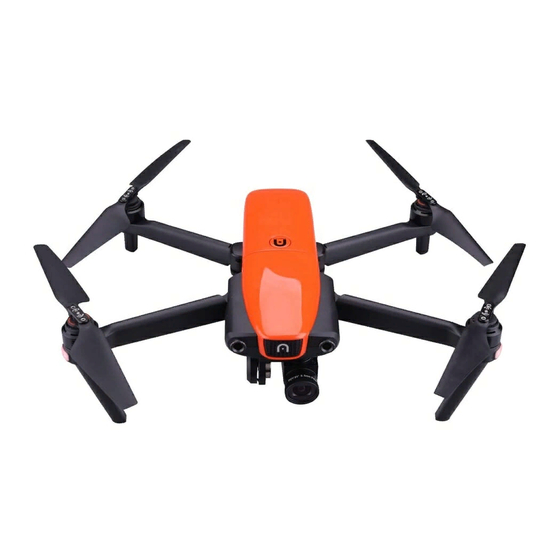

Drone with gimbal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Guide
With XI-5A Gimbal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO XI-5A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autel Robotics EVO XI-5A

Summary of Contents for Autel Robotics EVO XI-5A

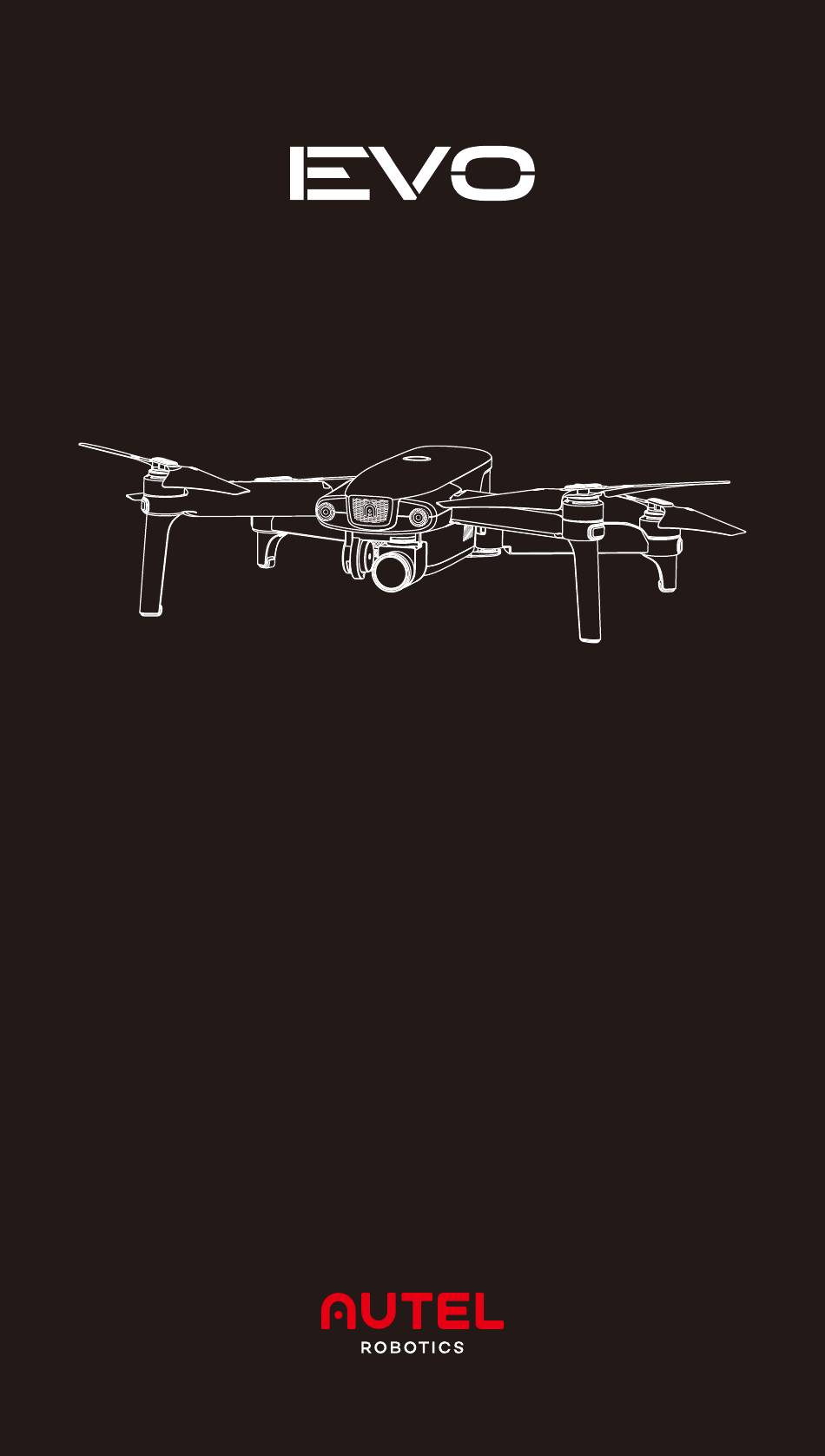

  • Page 1 Quick Guide With XI-5A Gimbal...
  • Page 2 1. INTRODUCING EVO Thank you for your purchase and welcome to the Autel Robotics family. EVO is the latest evolution in drone design and technology. Obstacle avoidance, Intelligent Flight Modes, and a completely redesigned mobile app create an exciting and safe experience like nothing else.
  • Page 3 7. Aircraft Battery 8. Micro-SD Card Slot 9. Fan Exhaust 3. AIRCRAFT REAR AND BOTTOM VIEW 10. Rear Avoidance Sensor 11. Control Mode Switch 12. Micro-USB Port 13. Remote Controller Pairing Button/Pairing Indicator 14. Downward Vision System 15. Ultrasonic Sensor 4.
  • Page 4 R — Red Color G — Green Color Y — Yellow Color Solid Light Slow flashing: Flashes once per second Interval flashing: Flashes once every two seconds Fast flashing: Flashes 3 times per second Double flashing: Flashes two times then pauses and repeats Alternate flashing: Alternate among different colors Example: “R-●”...

  • Page 5: Remote Controller

    5. REMOTE CONTROLLER 1. Mobile Device Holder 2. Flight Information Panel 3. Command Sticks 4. Hand Grips 5. Take-off/Landing Button 6. Power Button 7. USB Ports 8. Pause Button 9. Go Home Button 5 6 7 8 9 10. Antennas 11.
  • Page 6 2. Flip open the protector on the USB Port located on the remote controller and plug the USB charging cable into the USB port. 3. Plug the charger into a power outlet. NOTE: Always fly with a fully charged aircraft and remote controller battery.
  • Page 7 8. PREPARE THE AIRCRAFT 1. Remove the gimbal holder and the warning cards from the Motors. 2. Unfold the front arms and Propellers of the aircraft. 3. Unfold the rear arms and Propellers of the aircraft. IMPORTANT: Remember to unfold the front arms first then the rear arms for usage, fold the rear arms first then the front arms for storage.

  • Page 8: Prepare The Remote Controller

    Attach the Propellers 1. Locate and match the Propeller to each Motor (orange Propeller to orange Motor, black Propeller to black Motor). 2. Press each Propeller down firmly and rotate in the lock direction to firmly attach the Propeller. Detach the Propellers 1.

  • Page 9: Motor Start And Takeoff

    11. POWER UP 1. Press and hold the Power Button for 2 seconds to power up the remote controller. 2. Press and hold the aircraft´s Power Button for 3 seconds to turn on the aircraft. The battery level indicators will illuminate and indicate the current battery level.

  • Page 10: Command Stick Controls(Mode 2)

    13. COMMAND STICK CONTROLS(MODE 2) Left Command Stick Ascend/Decend Left Side Veiw Left Side Veiw Ascend Descend Upward Downward Rotate Left/Right Nose Rotates Left Nose Rotates Right Rotate Left Rotate Right Right Command Stick Forward/Backward Left Side Veiw Left Side Veiw Forward Backward Rear...
  • Page 11 14. LANDING AND MOTOR SHUT-DOWN (MODE 2) 1. Choose one of the following methods to land the aircraft: Hold the Takeo /Landing Push the Left Command Stick Button for 2s slowly downwards 2. When the aircraft reaches the ground, choose one of the following methods to shut down the Motors: Push the Left Command Stick Hold both Command Sticks...

  • Page 12: Camera Specifications

    Aircraft Battery Specifications Battery Type Lithium-Polymer Capacity 4300mAh Battery Voltage 11.4V Charging Environment 10°C~45°C (50°F~113°F) Temperature Discharging Environment -20°C~60°C (-4°F~140°F) Temperature Storage Temperature & Temp: -10°C~40°C (14°F~104°F) Humidity Humidity: 65±20%RH 30 mins Flight Time Camera Gimbal Specifications Operating Current 150mA@12V (Non-video Mode) Input Voltage Operating Temperature -10°C~50°C (14°F~122°F)

  • Page 13: Aircraft Specifications

    25mm Lense Diameter 100M Camera Bit Rate Storage capacity 4GB-128GB FAT32/exFAT File Formats Photo: JPG/DNG Video: MOV/MP4 Aircraft Specifications GPS+ Ultrasonic+ IMU: Horizontal: ±1.5m, Vertical: Hover Precision ±0.2m; Vision+ IMU: Horizontal: ±0.1m, Vertical: ±0.1m Max. Yaw Rate 200dps Max. Inclination Angle 35deg Max.
  • Page 14 2.4GHz~2.4835GHz RF Receiver Operating 902MHz~928MHz Frequency 2.4GHz~2.4835GHz Video Link Frequency 902MHz~928MHz Operating Temperature 0°C~40°C (32°F~104°F) 1 year: -20~25°C(-4°F~77°F) Storage Temperature 3 months: -20~45°C (-4°F~113°F) Max Control and Video Transmission Distance FCC: <=26 dBm Transmission Power CE: <=20 dBm (EIRP) 2A @ 3.6V Operating Current/Voltage 6700mAH Battery...
  • Page 15 2017-2018 Autel Robotics Co., Ltd. All Rights Reserved...
