Summary of Contents for Autel Robotics EVO Lite Series

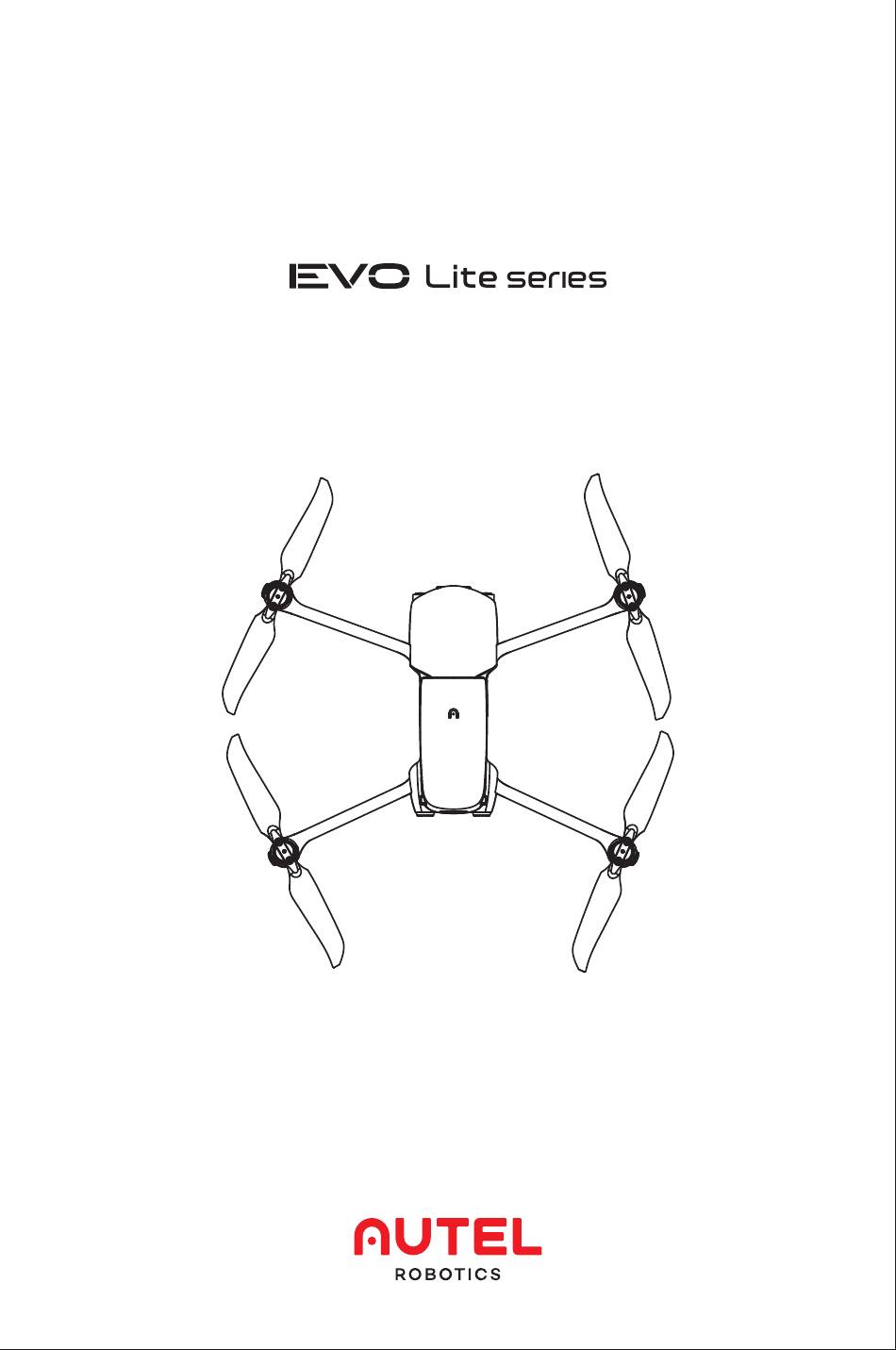

- Page 1 Quick Start Guide...
-
Page 3: Table Of Contents
Contents ....... 1 1. Reading notes ....... 1 2. Aircraft ....... 2 3. Flight LED indicator ....... 4 4. Remote control ....... 5 5. Charge the aircraft battery & remote control ....... 5 6. Install the Autel Sky ....... 6 7. -
Page 4: Reading Notes
1. Reading notes · Please read all documentation before your first flight. · Failure to operate the aircraft responsibly could lead to injury or damages, and may void any applicable warranty coverage. 2. Aircraft Propeller Gimbal camera Landing gear Front LED indicator Forward vision system Motor Power button... -
Page 5: Flight Led Indicator
SD card slot Aircraft battery USB-C port Ultrasonic sensor Downward vision lighting LED Downward vision system 3. Flight LED indicator A LED indicator is located on the end of each aircraft arm. The front LEDs will light up solid blue to help you identify the direction of the aircraft's nose. - Page 6 Definitions of Flight LED Indicator Status Front LED indicator Rear LED indicator Meaning Normal status Blue light is always Green light is always System self-test is activated Green light flashes The aircraft is in GPS Blue light is always slowly mode Warning Blue light is always...
-
Page 7: Remote Control
4. Remote control Power button Home button Pause button Joystick Battery indicator Mobile device stand Charging interface Antenna Remote control adapter Gimbal pitch control dial Camera/Video button Air inlet Custom button Air outlet... -
Page 8: Charge The Aircraft Battery & Remote Control
5. Charge the aircraft battery & remote control （1） Aircraft battery: Press and hold the release button on both sides of battery and plug the charging cable into the charging slot of battery. （2） Charging the remote control: Insert the Type-C charging cable into the Type-C port of the remote control. -
Page 9: Prepare The Aircraft Battery
1. Enter the keyword "Autel Sky" in the App Store or Google Play, then search for and download the Autel Sky application. 2. Launch the application on your mobile device. 3. Follow the on-screen instructions to connect the mobile device and the remote control. -
Page 10: Install The Propellers
8. Install the propellers The propeller is installed by default on the aircraft. If you need to re-install it, please refer to the following instructions. Note that the propeller must be intact and firmly installed on the aircraft, and the propeller with the white circle mark must be paired with the motor. -
Page 11: Prepare The Remote Control
Warning Before installing or removing the propeller, turn off the power switch of the aircraft. Important While installing or removing the propeller, it is recommended to wear protective gloves. 9. Prepare the remote control （1） Slowly pull out the mobile device holder. （2）... -
Page 12: Power Up
10. Power on （�） Hold the power button for � seconds to turn on the remote control. （�） Press and hold the power button for � seconds to turn on the aircraft. The battery indicator will then light up to show the current battery level of the aircraft. - Page 13 （�） After the motor starts, slowly push the left joystick upward (mode 2). Note: Before taking off, place the aircraft on a level surface with the back side of the aircraft facing you.
-
Page 14: Joystick Controls (Mode 2)
12. Joystick controls (Mode 2) Left stick Left view Left view Rise Descend Push down Push up Top view Top view Turn left Turn right Push left Push right Right stick Left view Left view Move forward Move back Tail Tail Nose Nose... - Page 16 WWW.AUTELROBOTICS.COM ©����-���� AUTEL ROBOTICS CO., LTD. ALL RIGHTS RESERVED...
