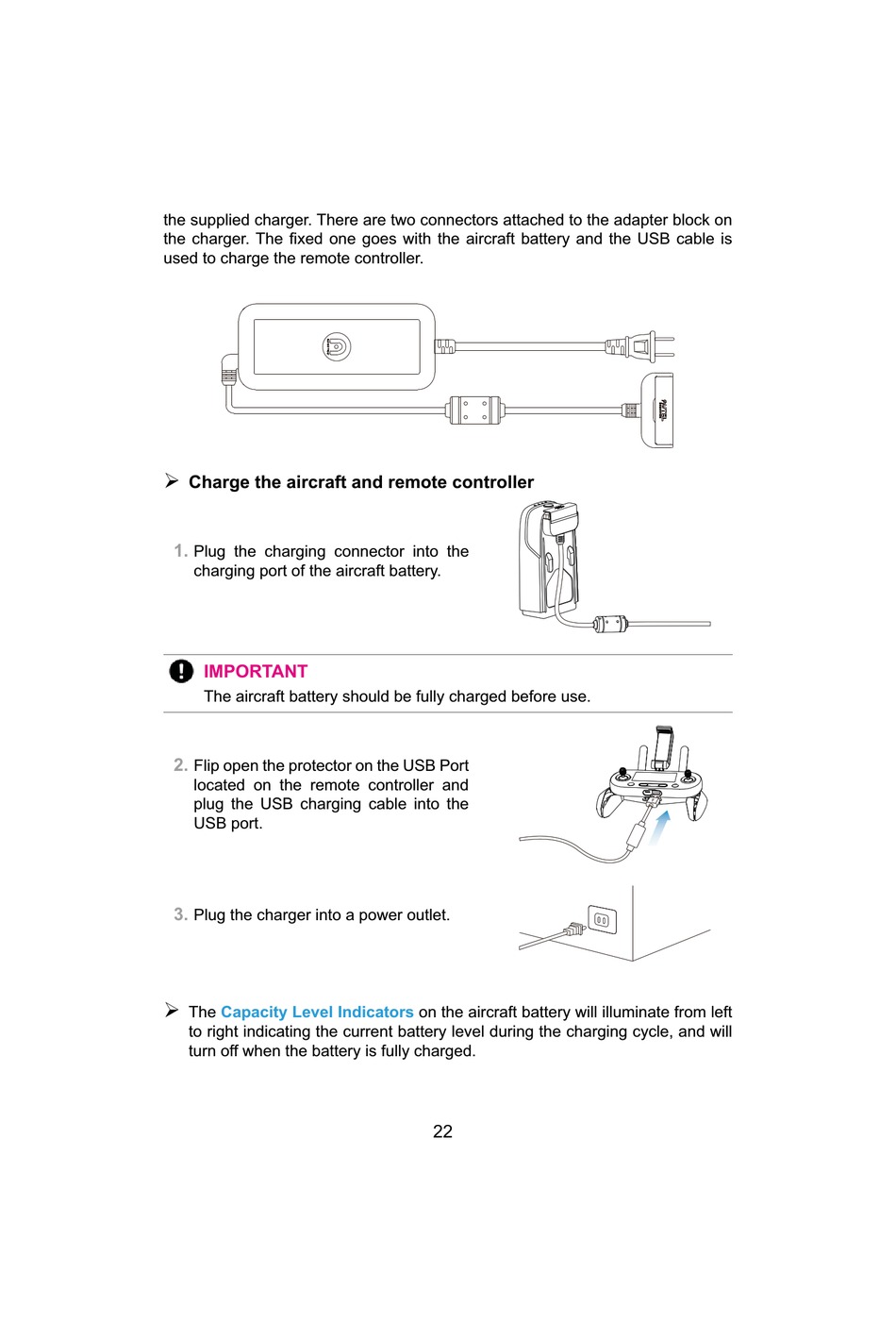

the supplied charger. There are two connectors attached to the adapter block on
WKH FKDUJHU 7KH ¿[HG RQH JRHV ZLWK WKH DLUFUDIW EDWWHU\ DQG WKH 86% FDEOH LV
used to charge the remote controller.
¾
Charge the aircraft and remote controller
1.
Plug the charging connector into the
charging port of the aircraft battery.
IMPORTANT
The aircraft battery should be fully charged before use.
2.
Flip open the protector on the USB Port
located on the remote controller and
plug the USB charging cable into the
USB port.
3.
Plug the charger into a power outlet.
¾
The Capacity Level Indicators
to right indicating the current battery level during the charging cycle, and will
turn off when the battery is fully charged.
on the aircraft battery will illuminate from left
