Flight Information Panel - Autel Robotics EVO User Manual

Shutter Button
Customizable Button #1
&XVWRPL]DEOH %XWWRQ
Gimbal Pitch Dial

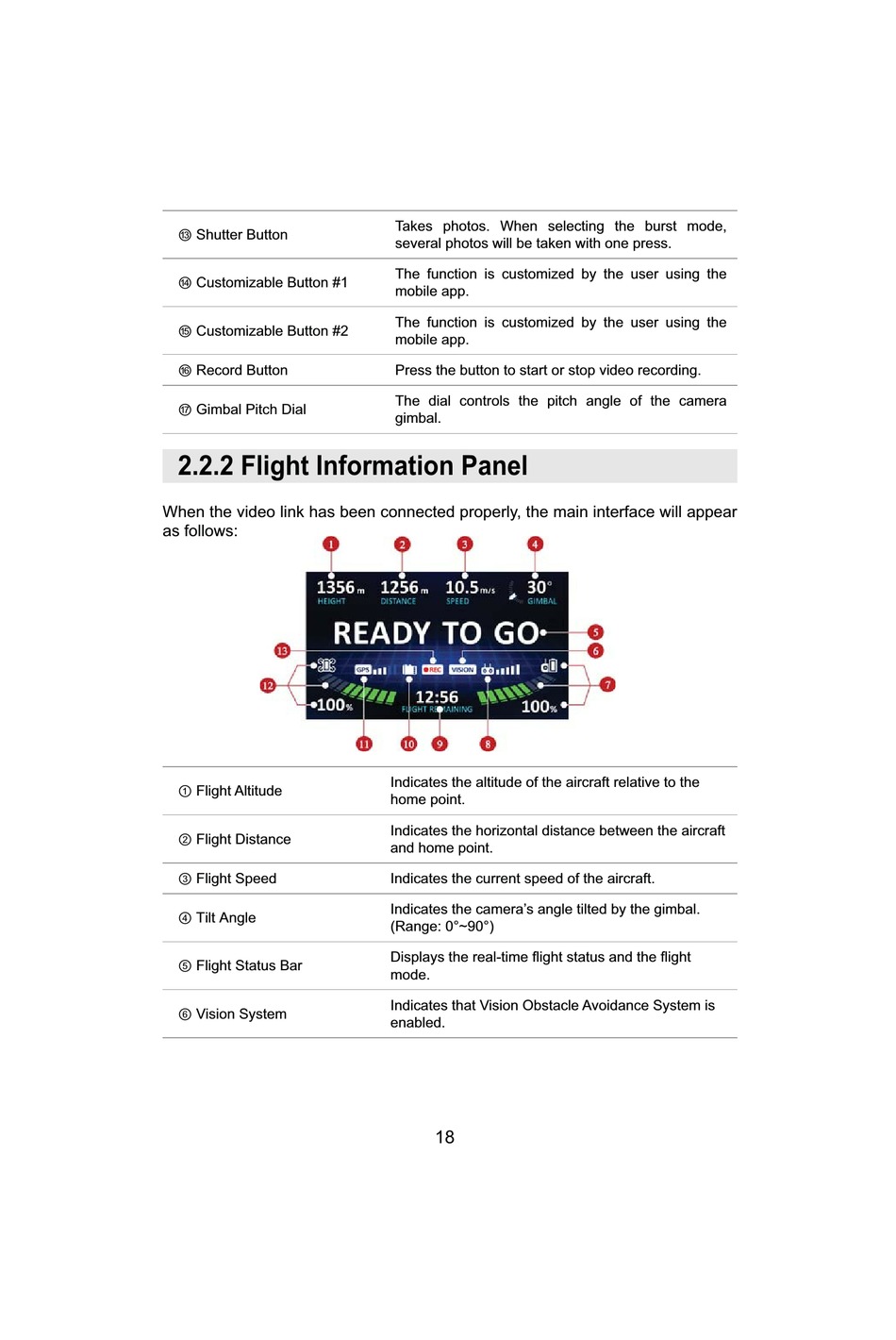

2.2.2 Flight Information Panel

When the video link has been connected properly, the main interface will appear
as follows:
Flight Altitude
Flight Distance
Flight Speed
Flight Status Bar
Vision System
Takes photos. When selecting the burst mode,
several photos will be taken with one press.
The function is customized by the user using the
mobile app.
The function is customized by the user using the
mobile app.
Press the button to start or stop video recording.
The dial controls the pitch angle of the camera
gimbal.
Indicates the altitude of the aircraft relative to the
home point.
Indicates the horizontal distance between the aircraft
and home point.
Indicates the current speed of the aircraft.
Indicates the camera's angle tilted by the gimbal.
5DQJH ƒa ƒ
'LVSOD\V WKH UHDOWLPH ÀLJKW VWDWXV DQG WKH ÀLJKW
mode.
Indicates that Vision Obstacle Avoidance System is
enabled.
