Halton Capture Ray KVE-UV Operator's Manual page 19

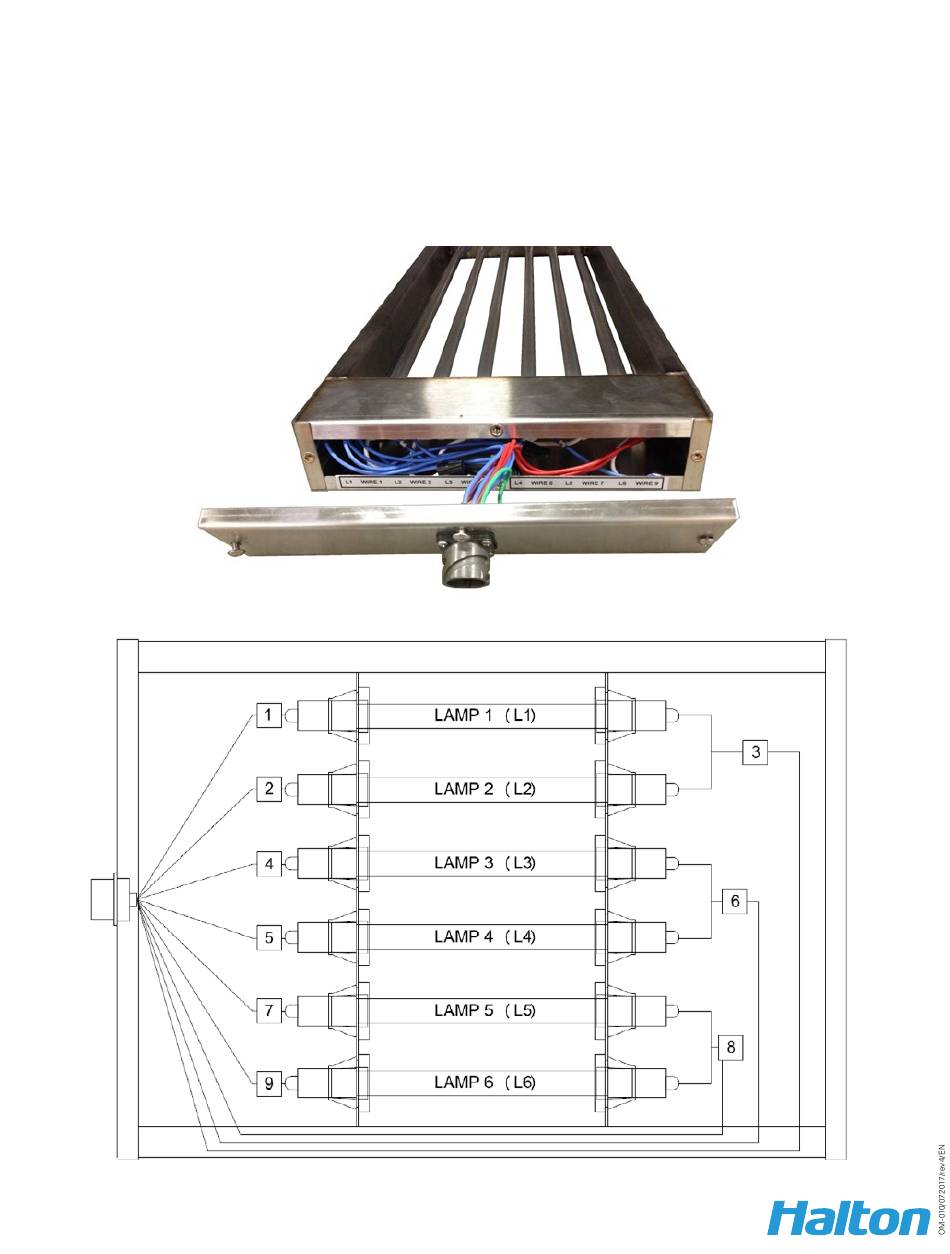

INSTRUCTION FOR RE-LAMPING
1. With the cassette removed from the hood, remove the screws from the end caps #3.
2. Unplug the lamps from lamp sockets #4.
3. Carefully slide each bulb through the lamp grommets.
4. Remove the lamp grommets #2 and replace with new grommets.
5. Carefully slide the new lamps through new grommets and re-connect lamp sockets #4.
6. Re-install end caps #3 and attach with screws.
