Summary of Contents for Halton ECOV-10

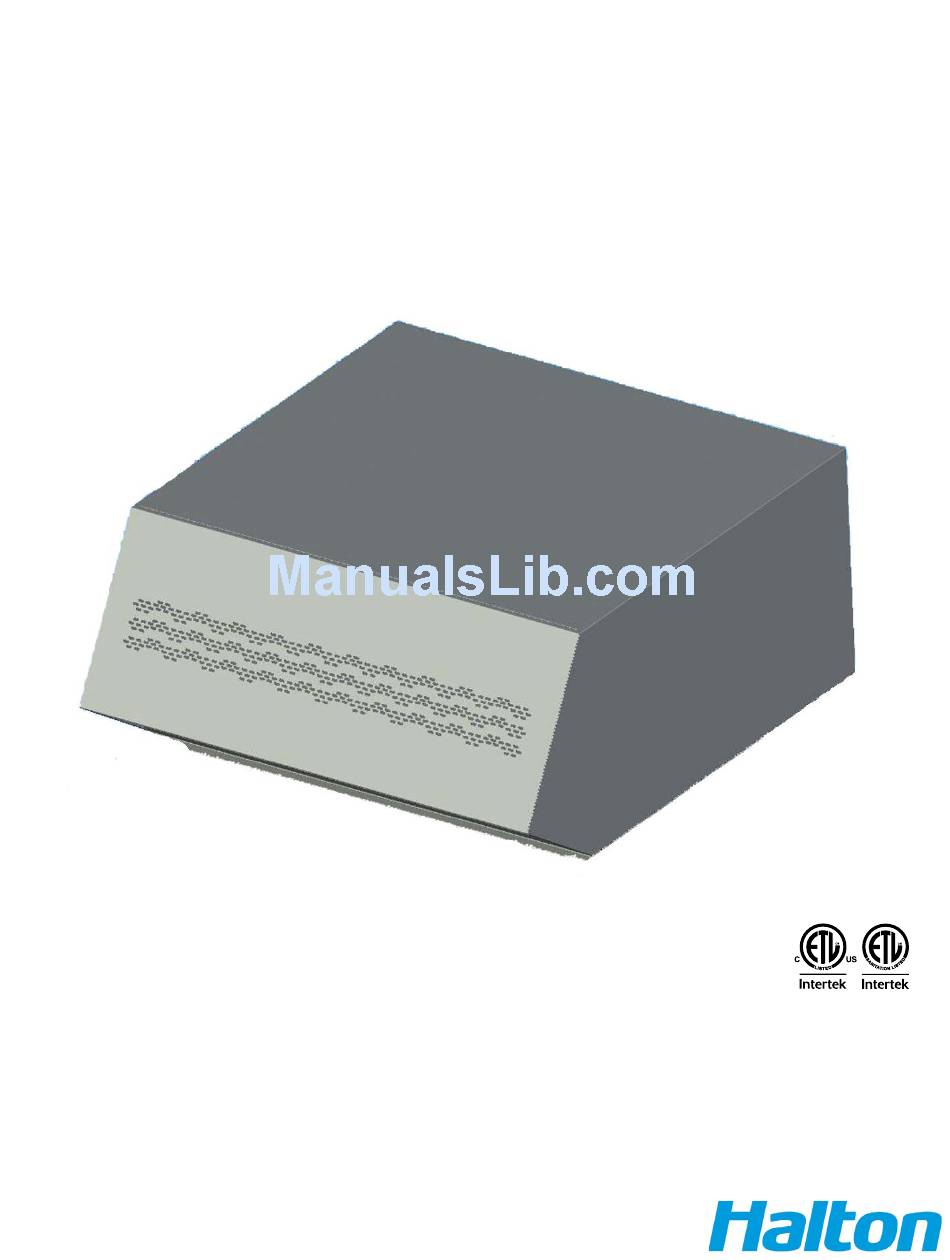

- Page 1 ECOVENT - Condensate Hoods Operators Instructions ECOVENT - Condensate Hoods Model: ECOV-10, ECOV-20, ECOV-30, ECOV-40...
-
Page 2: Table Of Contents
Table of Contents Section 1 – Installation Page 1.1 Identification or parts 1.2 Fitting to Oven 1.3 Fitting Door Magnet 1.4 Connection to Services 1.5 Commissioning Section 2 – Operation 2.1 Safety 2.2 Regular Operation 2.3 Cleaning and Maintenance Section 3 – Technical and Performance Data 3.1 Canopy Information 3.2 Wiring Diagram Section 4 –... -
Page 3: Section 1 - Installation Page
Section 1 - Installation Identification of Parts 1. Outer Casing 2. Top Shell 3. Bottom Shell 4. Cassette 5. Mesh Moisture Eliminator 6. Baffle Filter 7 . Back Plate 8. Fixing Bracket 9. ¾” Nylon Branch 10. Flexible Hose 11. Instruction Manual pack, Incl. -
Page 4: Fitting To Oven
Section 1 – Installation 1.2 Fitting to Oven Information: The ECOVent condensate hood has been designed to fit on Electrolux ovens only, specifically models 269281, 267281, 267280 No direct connection to an outgoing extract system is required, as the steam laden air filtered by means of baffle filters, mesh moisture eliminators and perforated cassette. -
Page 5: Connection To Services
Section 1 – Installation Instructions: 1.3.1. Place the door magnet (11) as Fig 1. and mark the fitting hole on top of the oven door. 1.3.2. Drill on No. 2.4mm diameter hole, and tap with M3 thread. 1.3.3. Fix the magnet into place, ensuring the distance is set to read, when door is opened to ventilation position. -
Page 6: Commissioning
Section 1 – Installation 1.5 Commissioning Information: 1.5.1. Sequence of Operation. If all of the services have been connected correctly, the sequence of operation is as follows. Green illuminated on-off toggle switch will turn condensate hood power on. At this time the fan will run at low speech (Idle). When the door of the oven is opened, the magnetic reed switch triggers the fan to increase in speed, and a cold water mist to be produced. -
Page 7: Section 2 - Operation
Section 2 – Operation 2.1 Safety Safety 2.1.1. The ECOVent condensate hood is designated only for extracting steam and vapor from Electrolux ovens only, specifically models 269281, 267281, 267280. 2.1.2. The manufacturer accepts no liability of damages in case of non-designated use, or incorrect operation or installation. -
Page 8: Cleaning And Maintenance
Section 2 – Operation 2.3 Cleaning and Maintenance Safety: 2.3.1. Before cleaning or carrying out maintenance on the condensate hood, ensure the power supply is disconnected. Information: 2.3.2. The baffle filters should be removed and cleaned in a dishwasher regularly, at least every two weeks. Experience could suggest more frequently, dependant on contaminant build up. -
Page 9: Section 3 - Technical And Performance Data
211 CFM Fan Capacity - High Speed 444 CFM Cold Water Supply Always > 40PSI Weigth ECOV-10 --- lbs, ECOV-20 ---lbs, ECOV-30 --- lbs, ECOV-40 --- lbs Construction Material 18 ga. stainless steel ECOV-10 ECOV-20 Electrolux Oven air-o-convect 62 & 102 Electrolux Oven air-o-convect 62 &... -
Page 10: Wiring Diagram
HALTON LIMITED WARRANTY Halton (“Manufacturer”). Warrants only to its direct purchasers and to no others, that all products manufactured by the Manufacturer shall be free from defect in materials and workmanship for a period of twelve (12) months from the date of the original installation and start-up or eighteen (18) months from date of shipment, whichever occurs first.
