KSA, GPS & UV BULBS & CASSETTE CLEANING INSTRUCTIONS:
As previously stated, Halton highly recommends that the facility enter into a formal annual
maintenance contract with the local Authorized Service Agent. Contact the factory directly if
you would like the name and phone number of the local ASA.
The cleaning process of the UVC bulbs does require time and the bulbs must be handled with great
care as they can easily be broken.
The UVC Bulbs must be cleaned regularly in order to allow for the system to operate at peak effi-
ciency. Dirty or greasy UV bulbs will not allow for the grease particulate and grease vapors to be con-
verted into organic compounds. As a result, excessive grease will accumulate in the duct work and
more frequent duct cleaning costs will occur.
In order to clean the UVC bulbs one will need to shut off the electrical power to the system at the
control panel. Once the appliance cook top has cooled the cassettes which hold the UVC bulbs will
need to be removed. The first step involves removing the KSA & GPS filters. Then open the UV ac-
cess panel door by turning the black knobs to the open position. The door is hinged and will open
towards the operator and down.

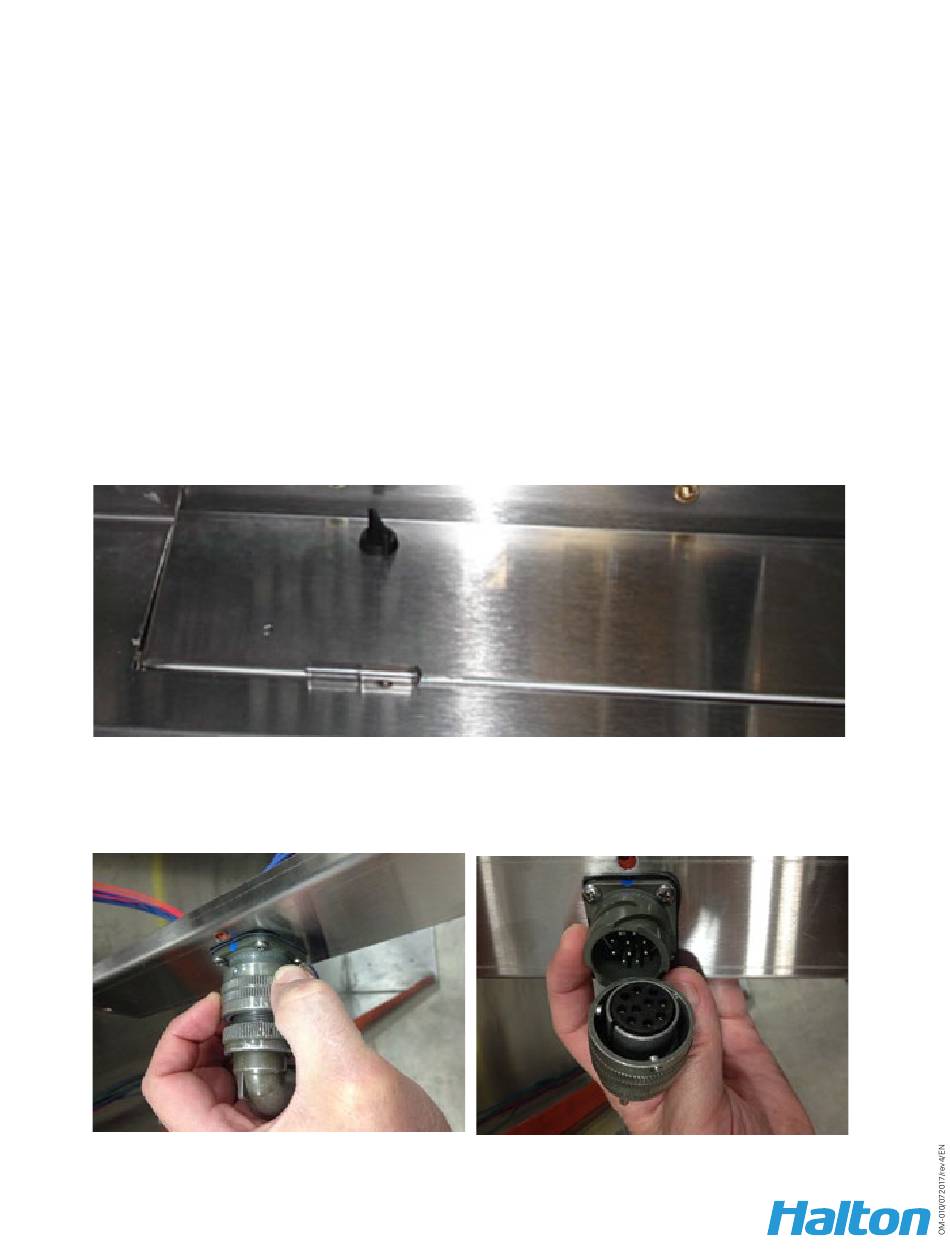

Next disconnect the supply wiring from the cassette. The connector is accessed through the filter
plenum where the KSA and GPS filters have been removed. Disconnect the supply wiring by turning
the connector 1/3 of a turn counter clockwise and then pull it straight out.
